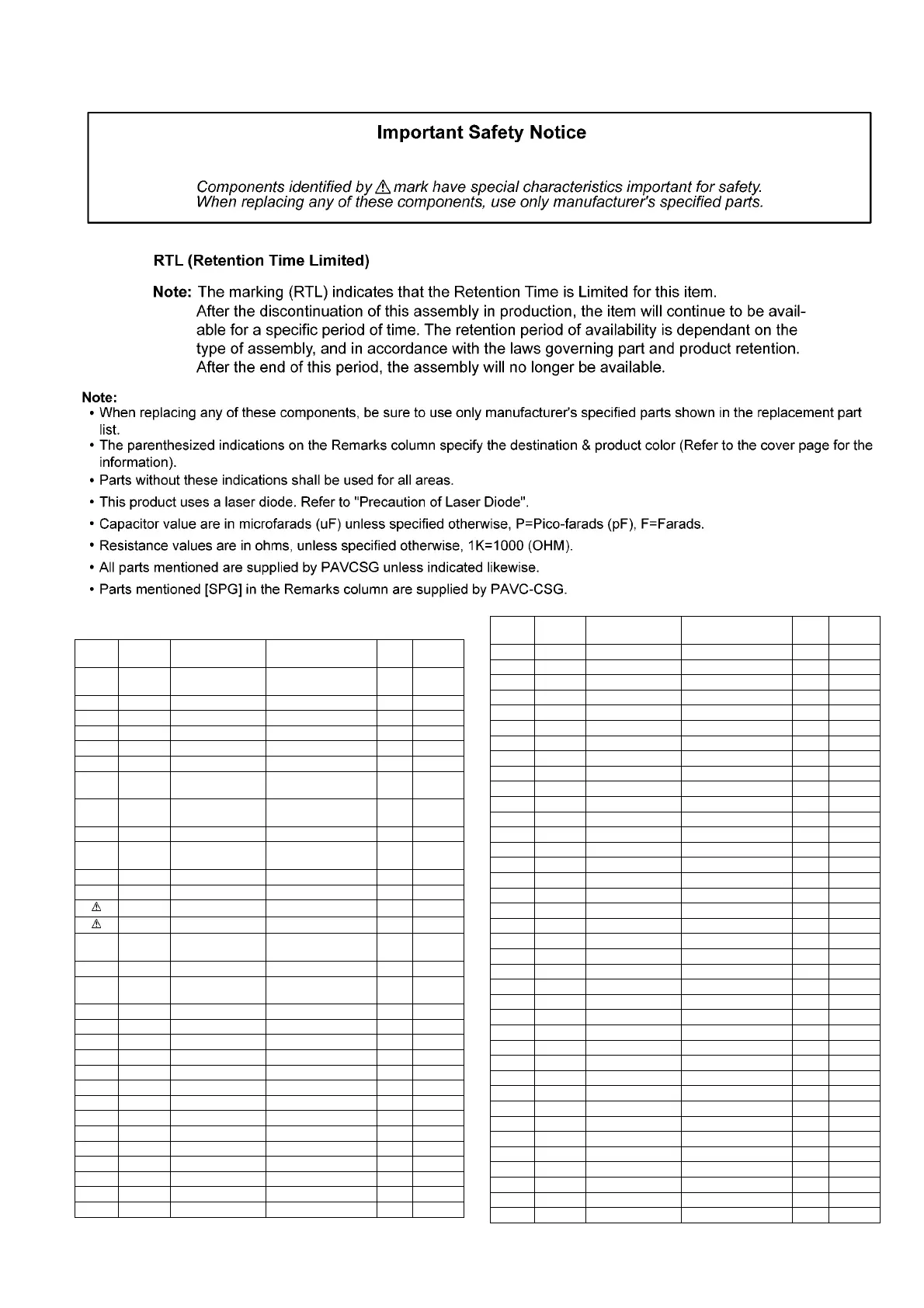

21.2. Electrical Replacement Part List
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
PRINTED CIR-
CUIT BOARDS
PCB1 RFKBX0681D-C DVD MODULE P.C.B 1 (RTL)
PCB2 REPX0722B DECK P.C.B 1 (RTL)
PCB3 REPX0731C D-AMP P.C.B 1 (RTL)
PCB4 REPX0736C MAIN P.C.B 1 (RTL)
PCB5 REPX0737A PANEL P.C.B 1 (RTL)
PCB6 REPX0737A SIDE BAR (L) LED
P.C.B
1 (RTL)
PCB7 REPX0737A SIDE BAR (R) LED
P.C.B
1 (RTL)
PCB8 REPX0737A VOLUME P.C.B 1 (RTL)
PCB9 REPX0737A REMOTE SENSOR
P.C.B
1 (RTL)
PCB10 REPX0737A MUSIC PORT P.C.B 1 (RTL)
PCB11 REPX0736C USB P.C.B 1 (RTL)
PCB12 REPX0751A SMPS P.C.B 1 (RTL)
PCB13 REPX0751A AC INLET P.C.B 1 (RTL)
PCB14 REPX0740C DECK MECHANISM
P.C.B
1 (RTL)
INTEGRATED CIR-
CUITS
IC971 CNB13030R2AU IC 1
IC1000 C1AA00000612 IC 1
IC1001 AN7326K IC 1
IC2002 C0CBCBC00140 IC 1
IC2103 C0ABBB000230 IC 1
IC2801 RFKWMVK480GC IC 1
IC2802 RFKWEVK480GC IC 1
IC2803 C1BB00001121 IC 1
IC2804 C0AABB000125 IC 1
IC2900 C9ZB00000461 IC 1
IC4000 C0DAAYH00001 IC 1
IC5000 C1BA00000492 IC 1
IC5500 C0JBAB000902 IC 1
IC5701 C5HACYY00003 IC 1
IC5799 MIP4110MSSCF IC 1
IC5801 C0DABFC00002 IC 1
IC5899 C0DAEMZ00001 IC 1
IC6000 C1AB00003130 IC 1
IC6601 C0HBB0000057 IC 1
IC8001 MN2DS0018MP IC 1
IC8051 C3ABPG000160 IC 1
IC8111 C0DBFZG00001 IC 1
IC8251 C0GBG0000048 IC 1
IC8420 C0FBBK000071 IC 1
IC8422 C0FBAK000026 IC 1
IC8601 C0EBA0000039 IC 1
IC8606 C0EBE0000456 IC 1
IC8611 RFKBX0681D-C IC 1 (RTL)
IC8651 RFKWMH41B323 IC 1 [SPG]
IC8691 C0JBAA000502 IC 1
IC8695 C0JBAA000502 IC 1
IC9001 C0JBAZ001251 IC 1
IC9002 C0JBAZ001251 IC 1
IC9003 C0JBAB000908 IC 1
IC9005 C0DBZYY00266 IC 1
TRANSISTORS
Q1303 B1GBCFGH0001 TRANSISTOR 1
Q1304 B1GDCFGH0002 TRANSISTOR 1
Q1306 B1ABCF000176 TRANSISTOR 1
Q1307 B1ABCF000176 TRANSISTOR 1
Q1309 B1AAGC000006 TRANSISTOR 1
Q1310 B1AAGC000006 TRANSISTOR 1
Q1312 B1ABCF000011 TRANSISTOR 1
Q1314 B1GDCFGH0002 TRANSISTOR 1
Q1315 B1ACCF000094 TRANSISTOR 1
Q1316 2SD09650RA TRANSISTOR 1
Q1317 B1ABGC000005 TRANSISTOR 1
Q2002 B1GDCFJJ0047 TRANSISTOR 1
Q2003 B1GBCFJJ0051 TRANSISTOR 1
Q2004 2SD0601AHL TRANSISTOR 1
Q2005 B1ADCE000012 TRANSISTOR 1
