10 Disassembling and
Assembling of Traverse
Unit
Note: Refer to Section 6.3.1. Self-Diagnosis Mode Table 1
to set to Service Mode 2.
10.1. Disassembly Procedures

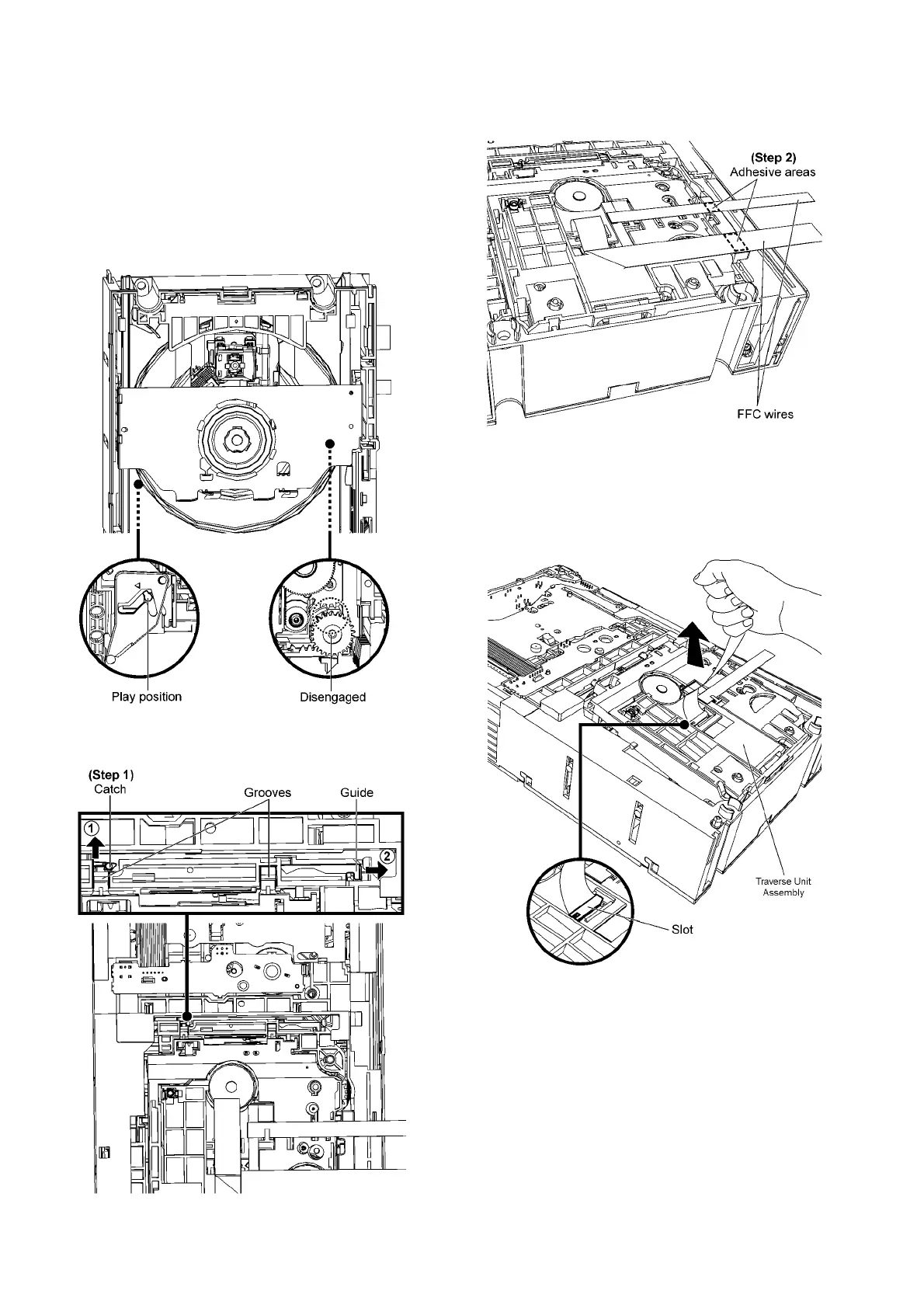

Step 1 Release the catch and push the guide as arrows shown
to open both grooves.
Step 2 Detach the FFC wires from the adhesive areas.
Caution:
Do not pull the FFC wire to remove the traverse unit
assembly, as it may cause damage to the slot.
