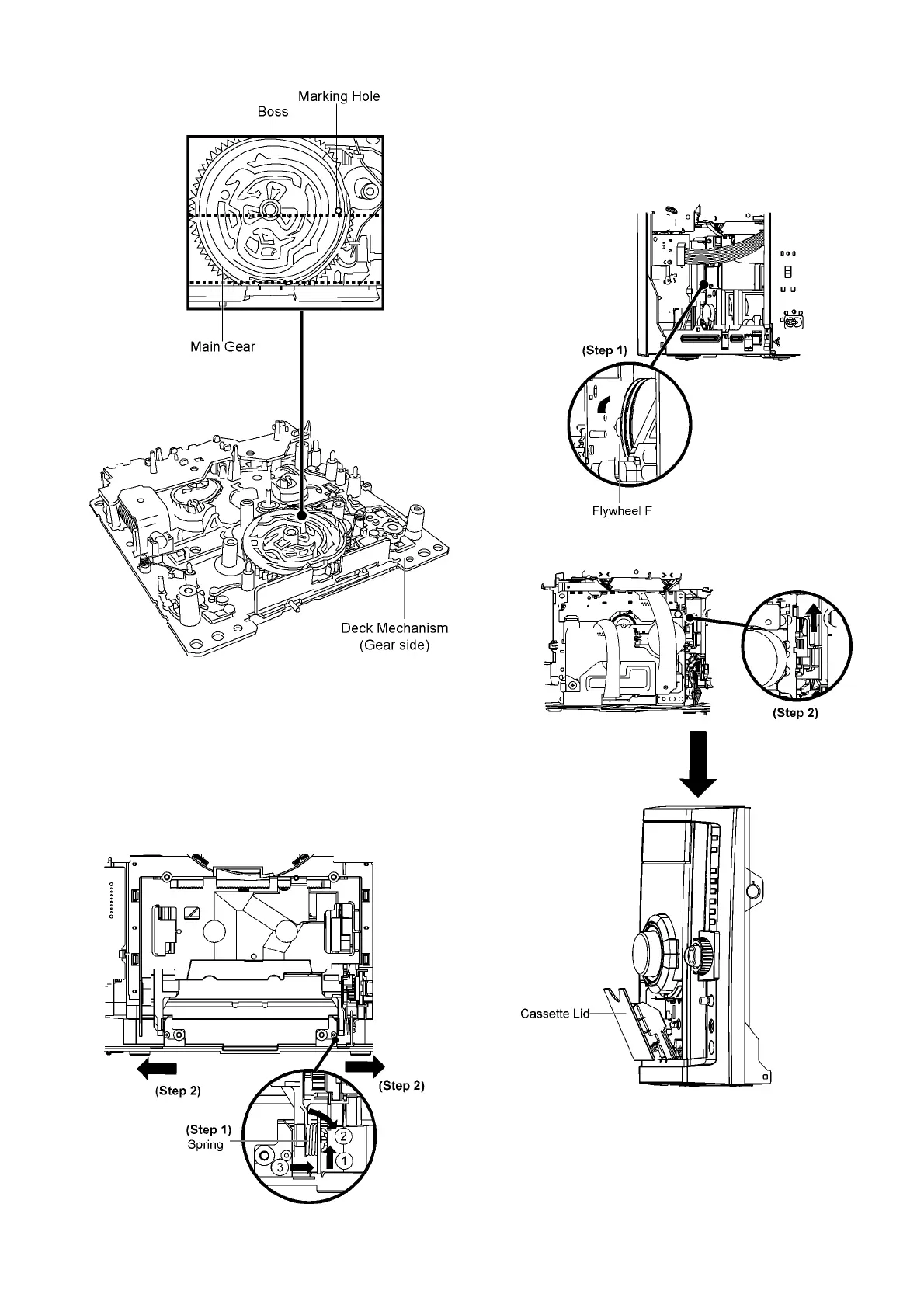

Caution : Ensure that the boss and the marking hole of the
Main Gear are positioned such that they form a horizontal
line parallel to the Deck Mechanism during assembly of
the Main Gear.
9.17. Disassembly of Cassette Lid
• Follow the (Step 1) to (Step 5) of Item 9.3
• Follow the (Step 1) to (Step 12) of Item 9.7
• Follow the (Step 1) to (Step 3) of Item 9.13
Step 1 Remove the spring.
Step 2 Push the cassette lid in the direction of arrows.
9.18. Rectification for Tape Jam
Problem
• Follow the (Step 1) to (Step 5) of Item 9.3
Step 1 Rotate the flywheel F in the direction of the arrow.
Step 2 Push the lever upward and open the cassette lid.
Note: Follow Disassembly of Cassette Lid to remove the cas-
sette tape.
9.19. Disassembly of D-Amp P.C.B.
• Follow the (Step 1) to (Step 5) of Item 9.3
