11.3. Checking and Repairing of D-
Amp P.C.B.

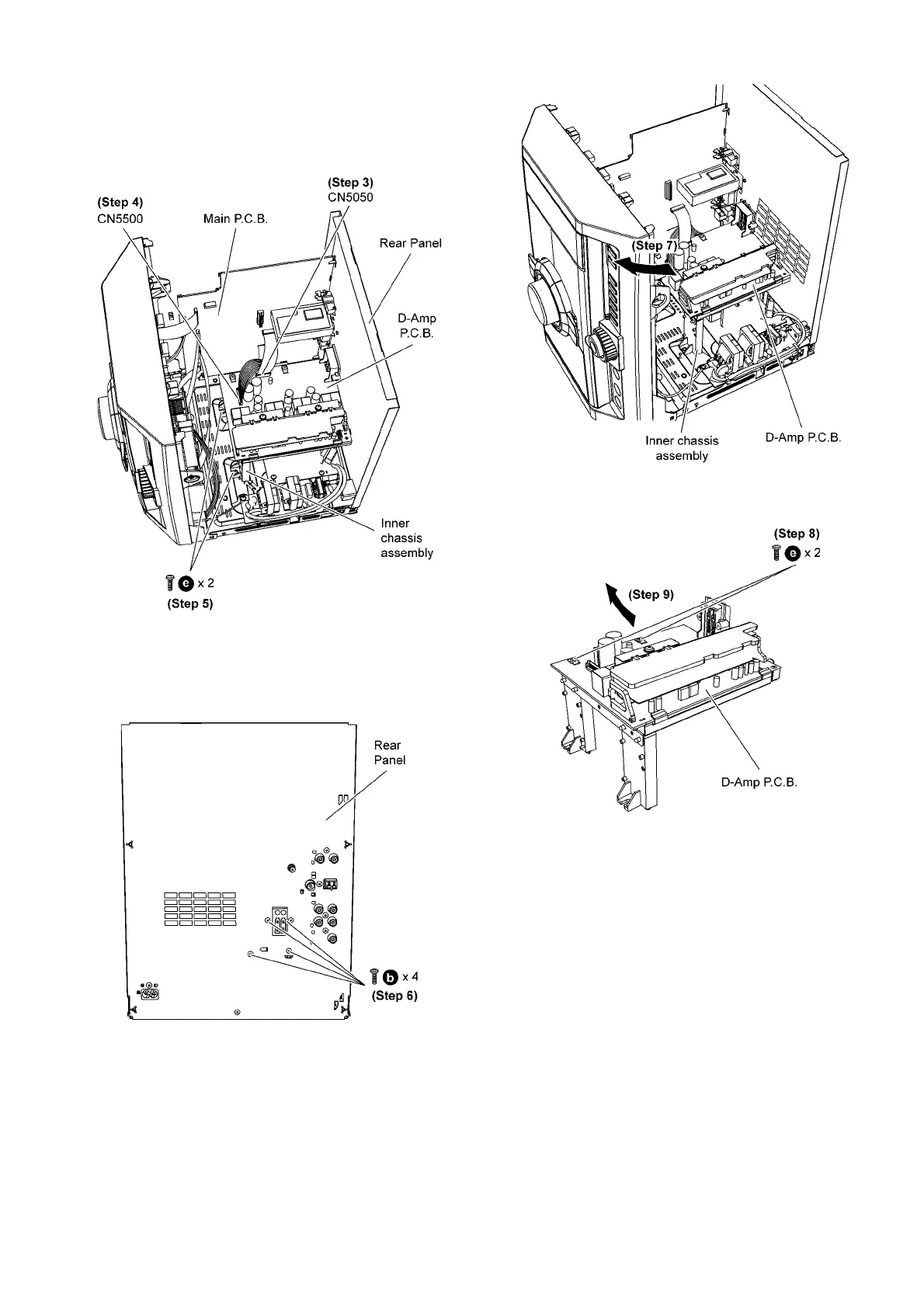

Step 1 Remove the top cabinet.
Step 2 Remove the DVD Mechanism Unit (CR14D).
Step 3 Detach 17P FFC at connector (CN5050) on D-Amp
P.C .B ..
Step 4 Detach 8P cable at connector (CN5500) on D-Amp
P.C .B ..
Step 5 Remove 2 screws at Inner chassis assembly.
Step 6 Remove 4 screws at the rear panel.
Step 7 Lift up the D-Amp P.C.B. together with the Inner chassis
assembly as arrow shown.
Step 8 Remove 2 screws from D-Amp P.C.B..
Step 9 Lift up D-Amp P.C.B. as arrow shown.
