4 Specifications
Q AMPLIFIER SECTION
RMS Output Power Stereo mode:
Front Ch
125 W per channel (3 Ω), 1 kHz, 10% THD
Total RMS Stereo mode power 250 W
Q FM/AM TUNER, TERMINALS SECTION
Preset station FM 30 stations
AM 15 stations
Frequency Modulation (FM)
Frequency range 87.50 to 108.00 MHz (50 kHz
step)
Antenna terminals 75 Ω (unbalanced)
Amplitude Modulation (AM)
Frequency range 522 to 1629 kHz (9 kHz step)
Digital audio output
Coaxial digital output Pin jack
Music Port (Front) jack
Sensitivity 200 mV, 4.7 kΩ
Terminal Stereo, 3.5 mm jack
Phone jack
Terminal Stereo, 3.5 mm jack
Mic jack
Sensitivity 0.7 mV, 1.2 kΩ
Terminal Mono, 6.3 mm jack (1 system)
AUX
Terminal RCA jack
Q CASSETTE DECK SECTION
Type Auto reverse
Track system 4-Track, 2 Channel
Heads
Record/playback Solid permalloy head
Erasure Double gap ferrite head
Motor DC servo motor
Recording system AC bias 100 kHz
Erasing system AC erase 100 kHz
Tape speed 4.8 cm/s
Overall frequency response (+3, -6 dB) at DECK OUT
Normal 35 Hz to 14 kHz
S/N ratio 50 dB (A-Weighted)
Wow and flutter 0.18 % (WRMS)
Fast forward and rewind time Approx. 120 seconds with
C-60 cassette tape
Q VIDEO SECTION
Video system PAL625/50, PAL525/60, NTSC
Composite video output
Output level 1 Vp-p (75 Ω)
Terminal Pin jack (1 system)
Component video output
Y output level 1 Vp-p (75 Ω)
P
B
output level 0.7 Vp-p (75 Ω)
P
R
output level 0.7 Vp-p (75 Ω)
Terminal output level
Pin jack (Y: green, P
B
: blue, P
R
: red) (1 system)
QUSB SECTION
USB Port
USB standard USB 2.0 full speed
Media file format support MP3 (*.mp3)
WMA (*.wma)
JPEG (*.jpg) (*.jpeg)
DivX (*.divx, *.avi)
MPEG4 (*.asf)
USB device file system FAT12, FAT16, FAT 32
USB Port power Max. 500 mA
Bit rate up to 4 Mbps (DivX)
USB Recording
Bit Rate 128 kbps
USB recording speed 1x
Recording file format MP3 (*.mp3)
Q DISC SECTION
Disc played [8 cm or 12 cm]
(1) DVD (DVD-Video, DivX
*6,*7
)
(2) DVD-RAM (DVD-VR, JPEG
*4,*7
, MP3
*2,*7
, MPEG4
*5,*7
, DivX
*6,*7
)
(3) DVD-R (DVD-Video, DVD-VR, JPEG
*4,*7
, MP3
*2,*7
, MPEG4
*5,*7
,
DivX
*6,*7
)
(4) DVD-R DL (DVD-Video, DVD-VR)
(5) DVD-RW (DVD-Video, DVD-VR, JPEG
*4,*7
, MP3
*2,*7
, MPEG4
*5,*7
,
DivX
*6,*7
)
(6) +R/ +RW (Video)
(7) +R DL (Video)
(8) CD,CD-R/RW (CD-DA, Video CD, SVCD
*1
, MP3
*2,*7
, WMA
*3,*7
,
JPEG
*4,*7
, MPEG4
*5,*7
, DivX
*6,*7
)
*1
Conforming to IEC62107
*2
MPEG-1 Layer 3, MPEG-2 Layer 3
*3
Windows Media Audio Ver 9.0 L3
Not compatible with Multiple Bit Rate (MBR)
*4
Exif Ver 2.1 JPEG Baseline files
Picture resolution: between 160 x 120 and 6144 x 4096 pixels (Sub
sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4). Extremely long and narrow
pictures may not be displayed.
*5
MPEG4 data recorded with the Panasonic SD multi cameras or
DVD video recorders. Conforming to SD VIDEO specifications (ASF
standard)/ MPEG4 (Simple Profile) video system/ G.726 audio system.
*6
Plays DivX® video.
*7
The total combined maximum number of recognizable audio, picture
and video contents and groups: 4000 audio, picture and video con-
tents and 255 groups (excluding root folder).
Pick up
Wavelength
CD 785 nm
DVD 655 nm
Laser Power CLASS 1
Audio output (Disc)
Number of channels 2 channel (FL, FR)
Q GENERAL
Power supply
AC 220 V to 240 V, 50 Hz
Power consumption 65 W
Power consumption in standby mode:
0.4 W (approx.)
Dimensions (W x H x D) 250 mm x 331 mm x 317 mm
Mass 4.7 kg
Operating temperature range +0 to +40°C
Operating humidity range 35 to 80% RH (no condensation)

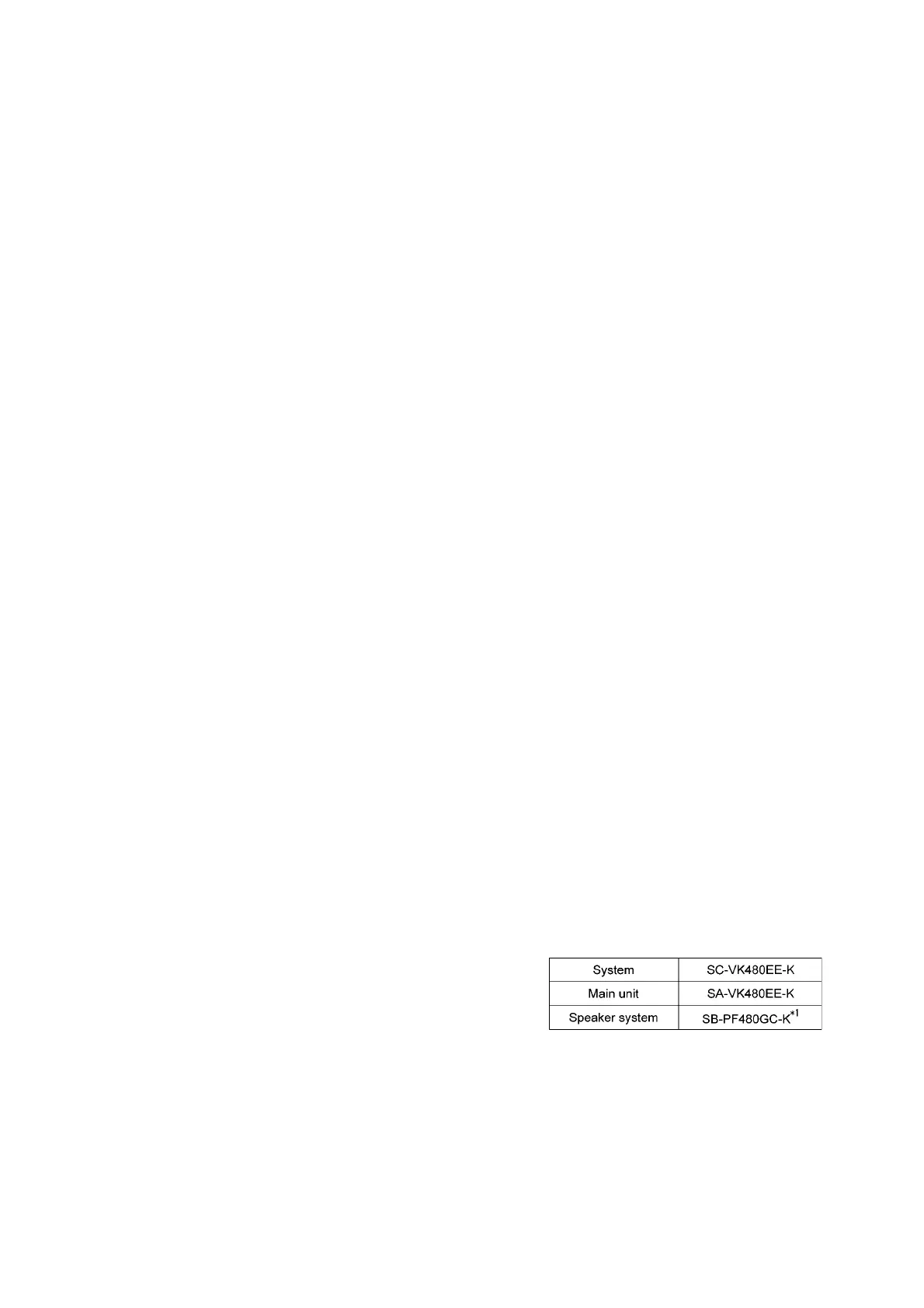

Q SYSTEM
Refer to their respective original service manuals for *1.
Notes:
1. Specifications are subject to changes without notice. Mass and
dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
