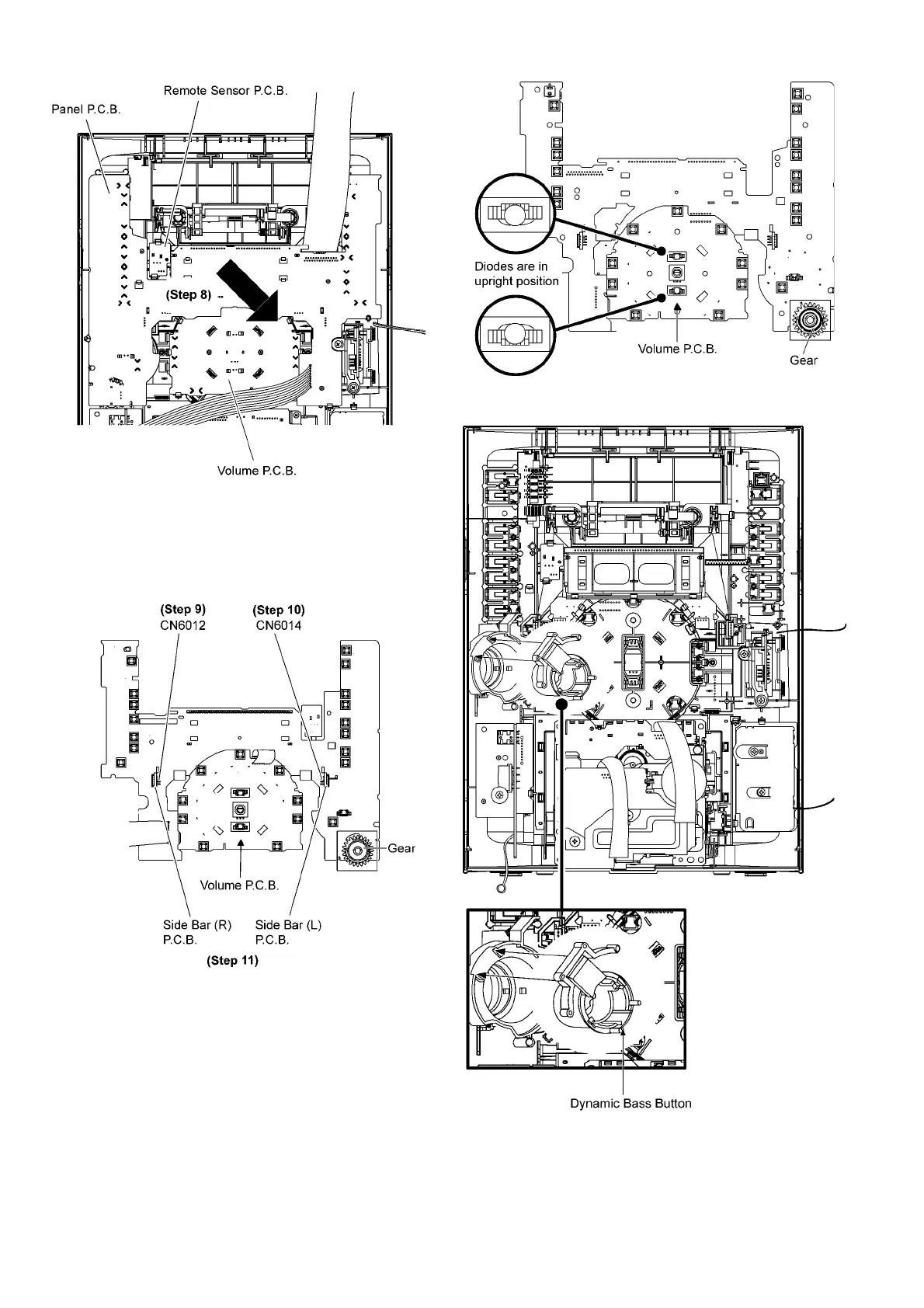

Step 8 Lift up the Panel P.C.B., Volume P.C.B. & Remote Sen-
sor P.C.B. altogether as arrow shown.
• Disassembly of Side Bar (L) Led P.C.B. and Side Bar (R)
P.C .B .
Step 9 Detach Side Bar (L) P.C.B at the connector (CN6014)
on Panel P.C.B..
Step 10 Detach Side Bar (R) P.C.B at the connector (CN6012)
on Panel P.C.B..
Step 11 Remove the Side Bar (L) P.C.B. and Side Bar (R)
P.C .B ..
Caution: During assembling, ensure that the diodes shown
on Volume P.C.B. are in upright position.
Caution: During assembling, ensure that Dynamic Bass
Button is seated properly.
9.10. Disassembly of USB P.C.B.
• Follow the (Step 1) to (Step 5) of Item 9.3
• Follow the (Step 1) to (Step 12) of Item 9.7
