9.14. Disassembly of Deck P.C.B.
• Follow the (Step 1) to (Step 5) of Item 9.3
• Follow the (Step 1) to (Step 12) of Item 9.7
• Follow the (Step 1) to (Step 3) of Item 9.13

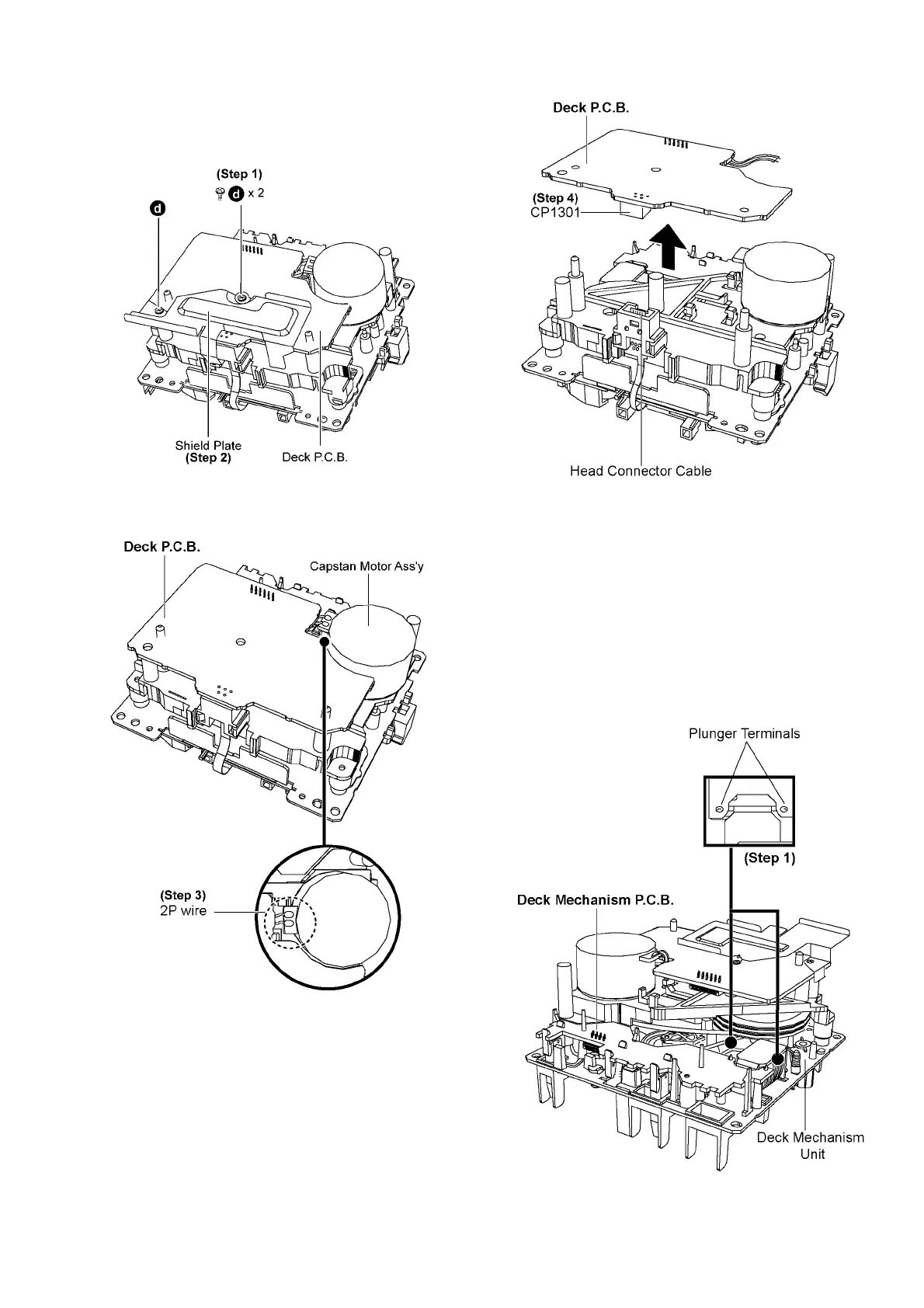

Step 1 Remove 2 screws.
Step 2 Remove shield plate.
Step 3 Desolder 2P wire at the Capstan Motor Ass’y.
Step 4 Lift up & remove Deck P.C.B..
Caution: During assembling, ensure connector (CP1301) at
Deck P.C.B. is seated properly & connected to the head
connector cable.
9.15. Disassembly of Deck Mecha-
nism P.C.B.
• Follow the (Step 1) to (Step 5) of Item 9.3
• Follow the (Step 1) to (Step 12) of Item 9.7
• Follow the (Step 1) to (Step 3) of Item 9.13
