Caution: During assembling, please ensure that the spring
is assembly at right position.

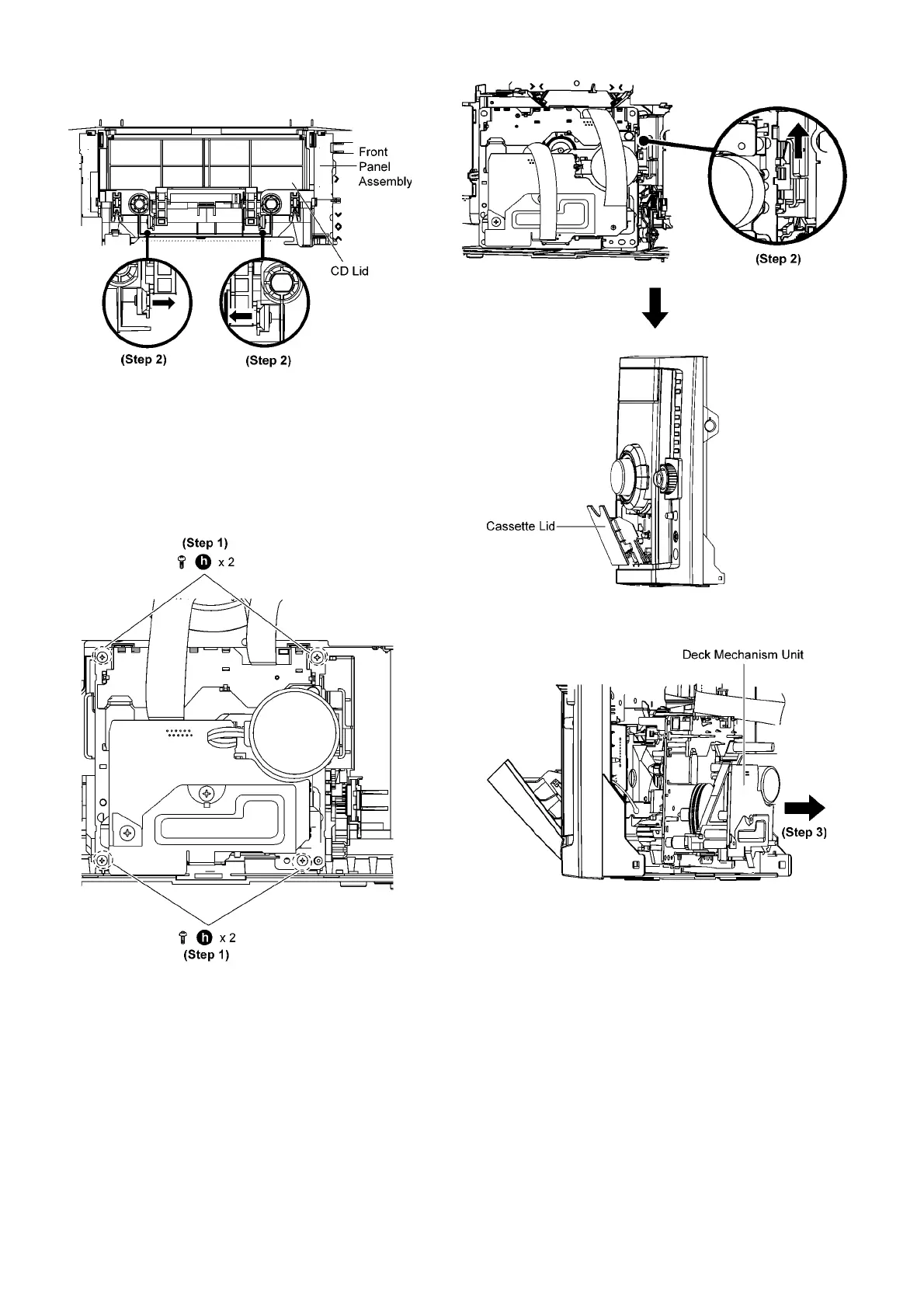

Step 2 Remove CD Lid as arrow shown.
9.13. Disassembly of Deck Mecha-
nism Unit
• Follow the (Step 1) to (Step 5) of Item 9.3
• Follow the (Step 1) to (Step 12) of Item 9.7
Step 1 Remove 4 screws at Deck Mechanism Unit.
Step 2 Push the lever upward as arrow shown to open the cas-
sette lid.
Step 3 Remove Deck Mechanism Unit in the direction of arrow.
To Next Page
