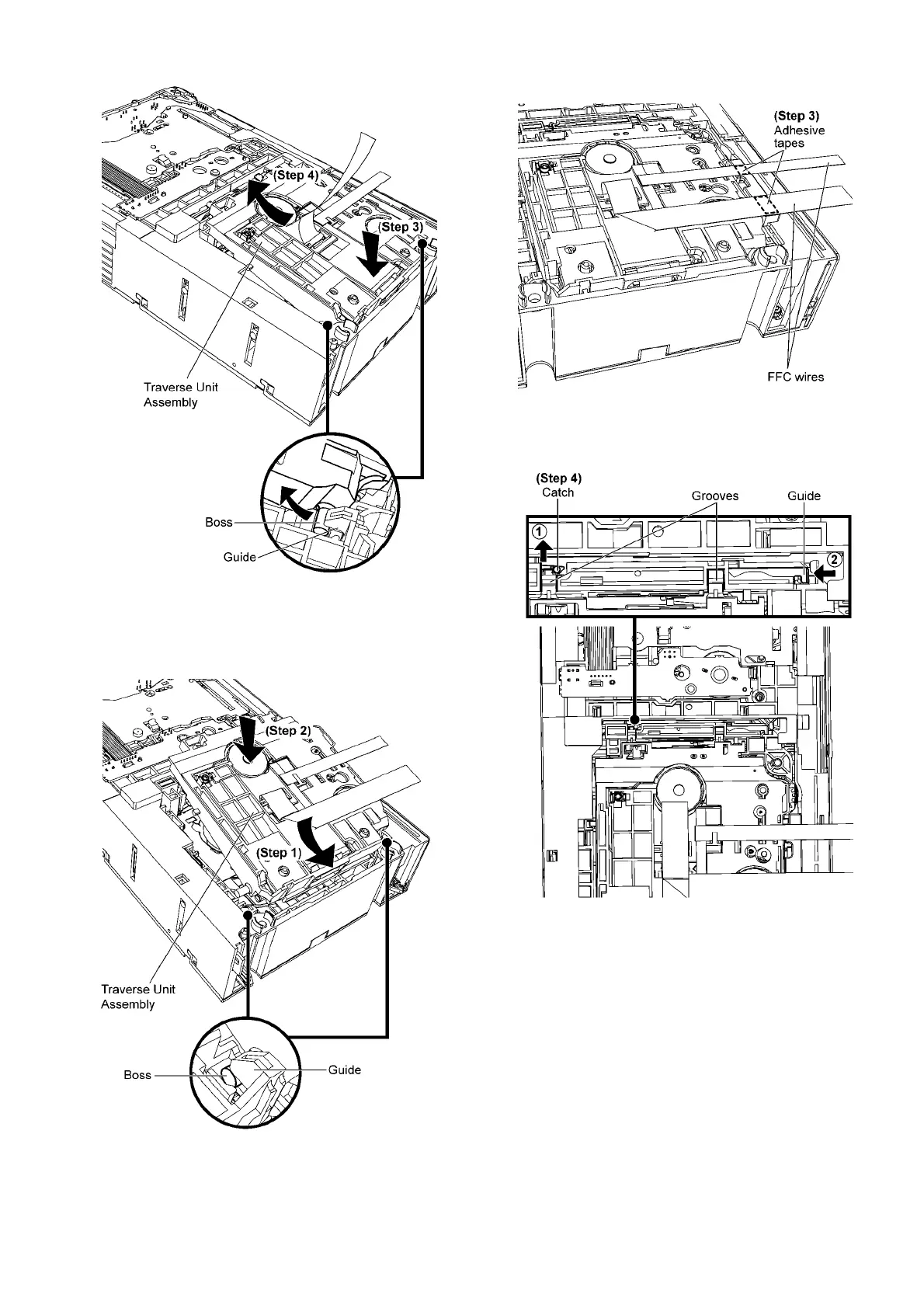

Step 3 Press down the traverse unit assembly.
Step 4 Remove the traverse unit assembly as arrow shown.
10.2. Assembly Procedures
Step 1 Slot the traverse unit assembly into the guides as arrow
shown.
Note: Ensure the bosses fix exactly onto the guides.
Step 2 Place down the traverse unit assy.
Step 3 Fix the FFC wires by using the adhesive tapes.
Step 4 Release the catch and push the guide as arrows shown
to close both grooves.
