Panasonic SA-VK480EE - Disassembly of DVD Module P.C.B.; Disassembly of Rear Panel

53

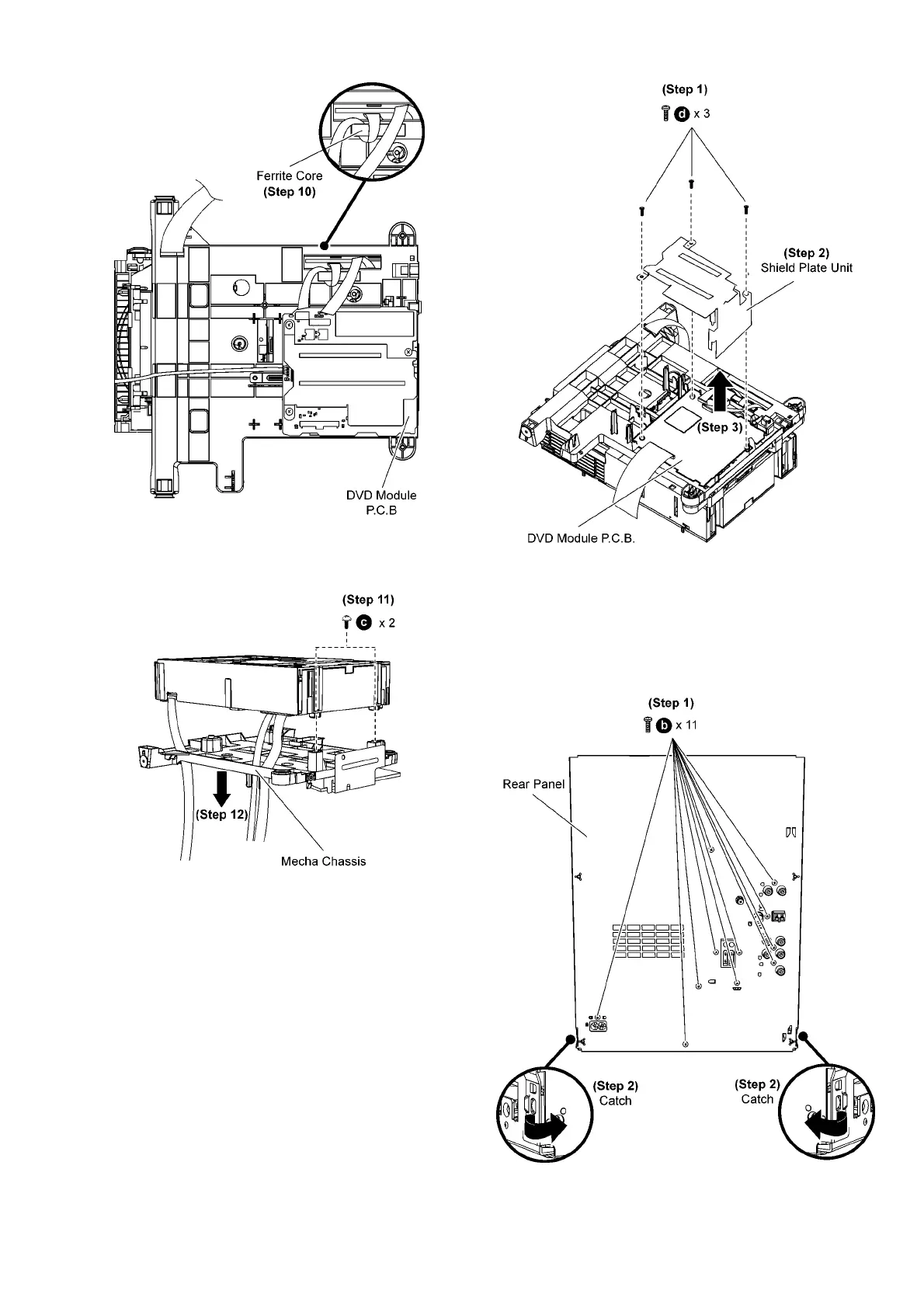

Step 10 Remove 7P FFC from the Ferrite Core.
Caution: Ensure that 7P FFC is properly slot through the
Ferrite Core.
Step 11 Remove 2 screws.
Step 12 Remove DVD Mechanism Unit (CR14D).
9.5. Disassembly of DVD Module
P. C. B .
• Follow the (Step 1) to (Step 5) of Item 9.3
• Follow the (Step 1) to (Step 9) of Item 9.4
Step 1 Remove 3 screws.
Step 2 Remove the shield plate unit.
Step 3 Remove DVD Module P.C.B..
9.6. Disassembly of Rear Panel
• Follow the (Step 1) to (Step 5) of Item 9.3
Step 1 Remove 11 screws at rear panel.
Step 2 Release 2 catches from the each side of the rear panel.
