EVOHD+ Installation Guide

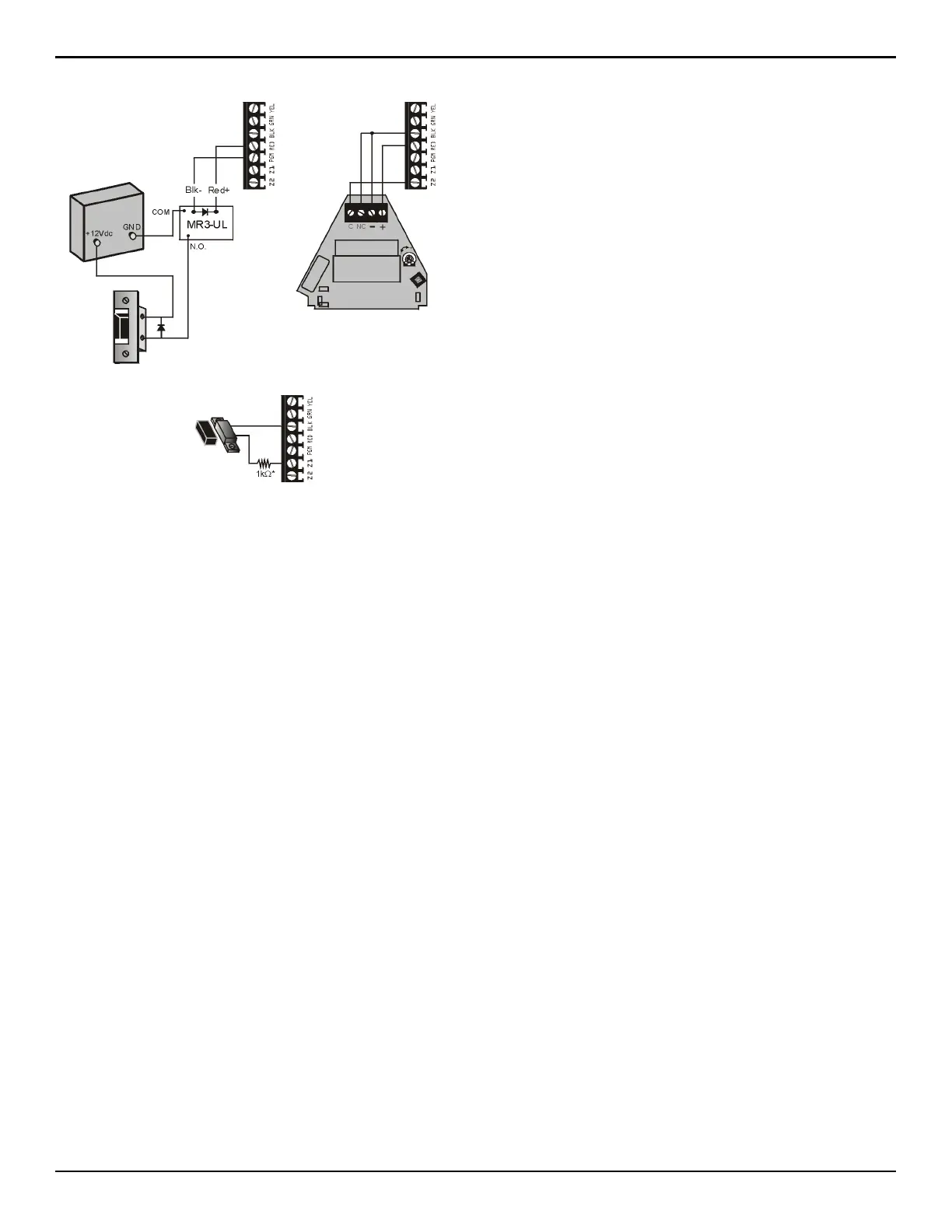

Figure 25: : Access Control Connections
K641R
K641R
Fused external
power supply
(recommended)
Door Lock
IN4007
Diode
K641R
Paradoor (460)
Request to Exit device.
Must be connected to
Z2
terminal.
NOTE: If a door contact is not being used, install a jumper or a 1kOhm
resistor across the blk and z1 terminals depending on the control panel’s
EOL definition. If the REX (Request for Exit) device is not being used, place a
jumper across the blk and z2 terminals.
Door Contact
Must be connected
to
Z1 terminal.
* Follows control panel’s EOL definition.
No EOL
required
for
Z2.
