Lifting the Inverter
These products can be lifted by an individual. Care must be taken when handling the products to avoid
injury.
Mounting the Inverter

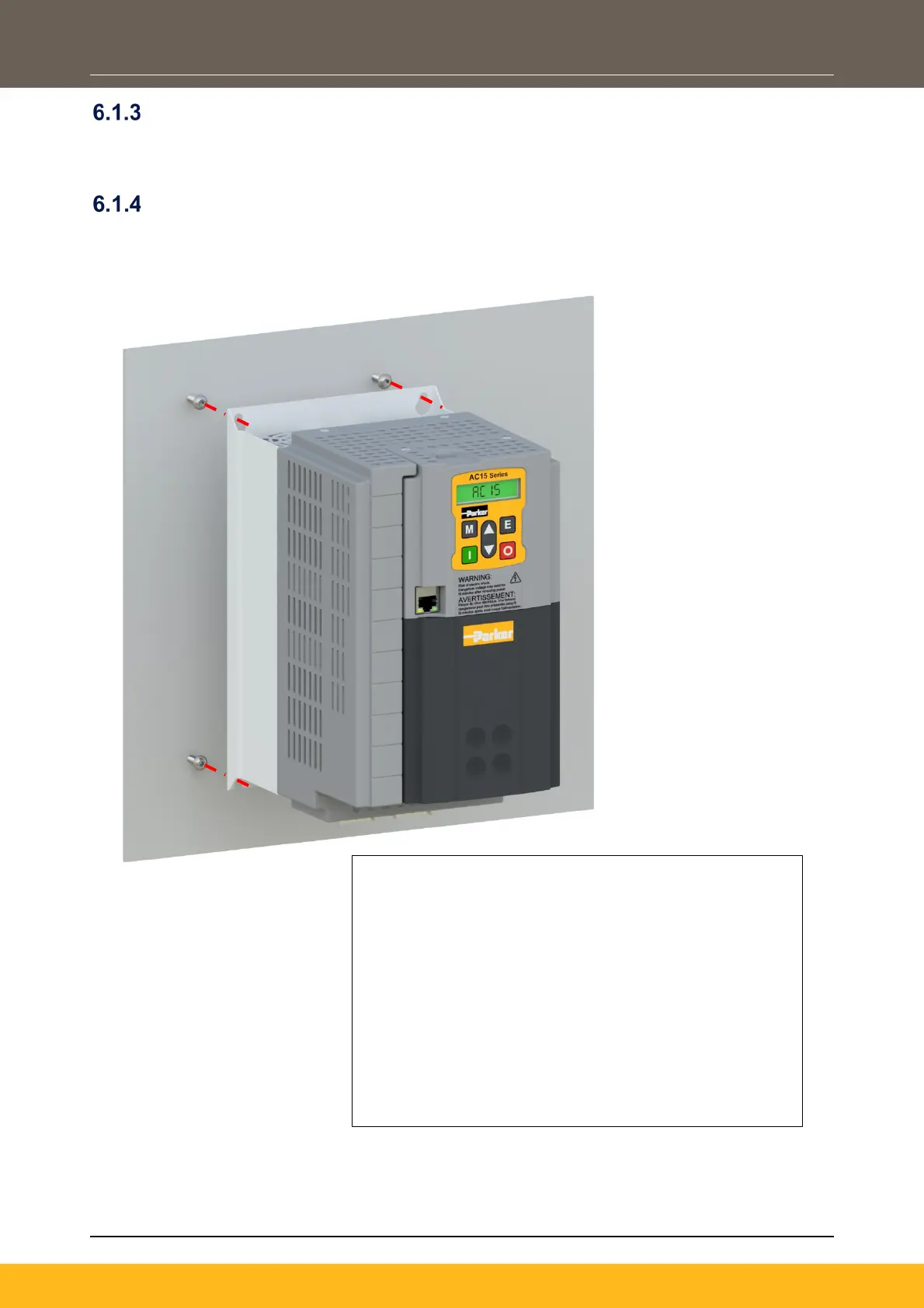

These products are intended to be mounted vertically inside a suitable enclosure.
1. Mark out the fixing hole positions on the cubicle back
panel as per the Fixing Dimensions listed in the table
above.
2. Drill the fixing holes as per the Slot Size and required
Fixing as listed in the table above.
3. Screw the fixings part way into the cubicle back panel.
4. Lift the inverter into position and onto the fixings using the
keystone slots at the top of the product to hang the
inverter into position.
5. Secure the product by fully tightening the fixings.
6. The inverter is now ready for wiring.
