7 Associated Equipment

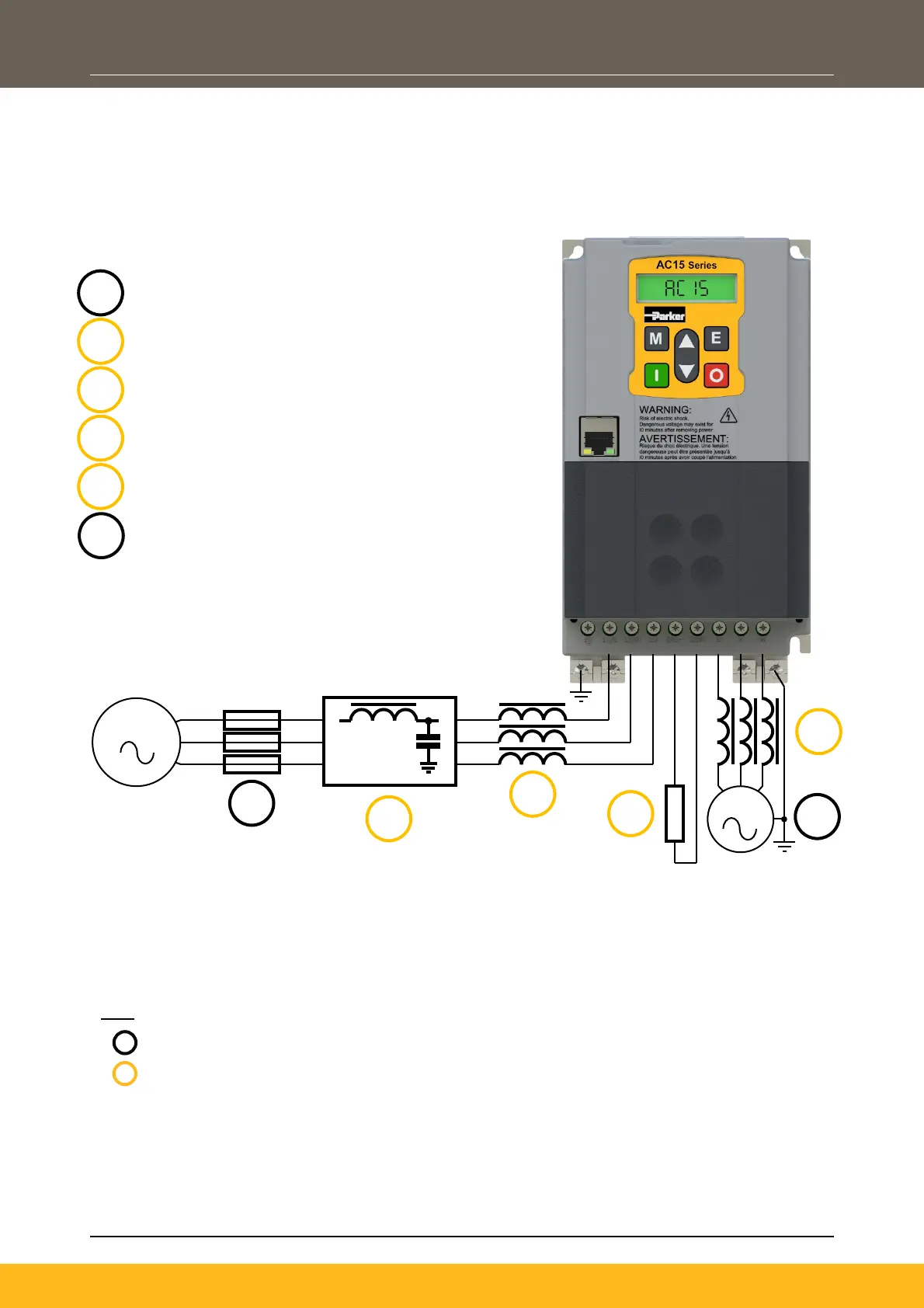

Additional mandatory equipment is required when installing an inverter (i.e., AC Line Input Fuses), as well
as optional components that may be specific to the installation (i.e., Input Chokes, EMC Filters, Output
Chokes) as shown in the diagram below:
Key:
Mandatory Component
Optional Component
M
A
B
C
D
E
F
V
S
A
B
C
D
E
AC Line Fuses
EMC Filter (optional)
AC Line Choke (optional)
Dynamic Braking Resistor (optional)
AC Motor Choke (optional)
F
Three Phase AC Induction or PMAC Motor
V
S
= AC Voltage Source:
• 1ø, 220-240V
• 3ø, 220-240V
• 3ø, 380-480V
