6901 Remote Keypad & Display Overview

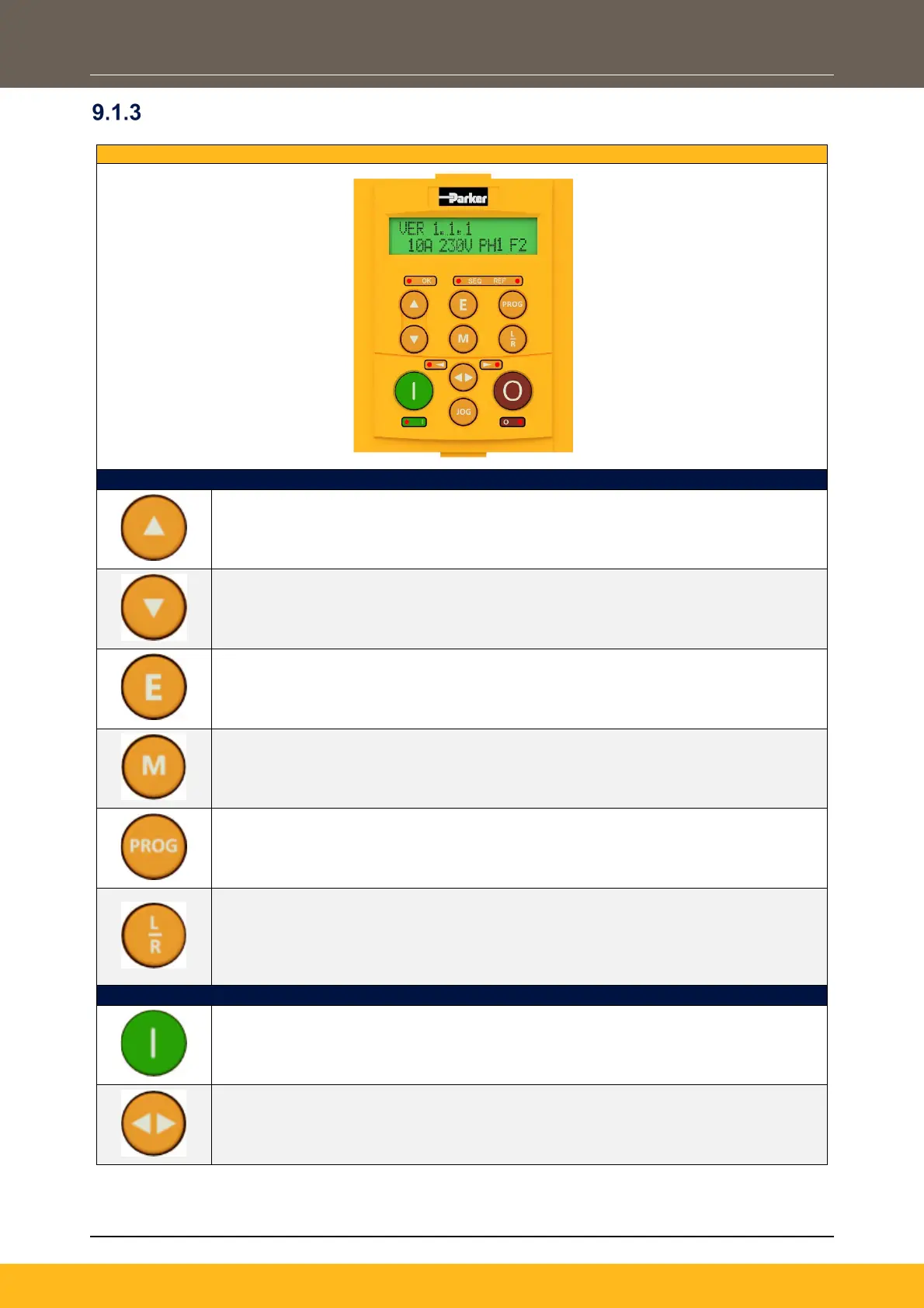

6901 Keypad Overview
Navigation / Parameter Edit Keys
UP Key
Navigation - Moves upwards through the list of parameters.
Parameter - Increments the value of the displayed parameter.
DOWN Key
Navigation - Moves downwards through the list of parameters.
Parameter - Decrements the value of the displayed parameter.
ESCAPE Key
Navigation - Displays the previous level’s Menu.
Parameter - Returns to the parameter list.
Trip Acknowledge - Acknowledges displayed Trip or Error message.
MENU Key
Navigation - Displays the next Menu level, or the first parameter of the current Menu.
Parameter - Allows a writable parameter to be modified (this is indicated by → appearing on the
left of the bottom line).
PROGRAM Key
No Function.
LOCAL / REMOTE Mode Select Key
Control - Toggles between Remote and Local Control for both Start/Stop (Seq) and Speed
Control (Ref).
When toggling, the display automatically goes to the relevant SETPOINT screen, and the
SETPOINT (LOCAL) screen will have the ▲ and keys enabled to alter the setpoint.
Local Mode Operating Keys
RUN Key
Control - Runs the motor at a speed determined by the LOCAL SETPOINT.
Trip Reset - Resets any trips and then runs the motor as above. Only operates when the Inverter
is in Local Start/Stop (Seq) mode.
DIRECTION Key
Control - Changes the direction of motor rotation. Only operates when the Inverter is in Local
Speed Control mode.
