DOC-0017-03-EN: AC15 Series - Hardware Installation Manual
DOC-0017-03-EN-B 04.04.2023 63 (125)

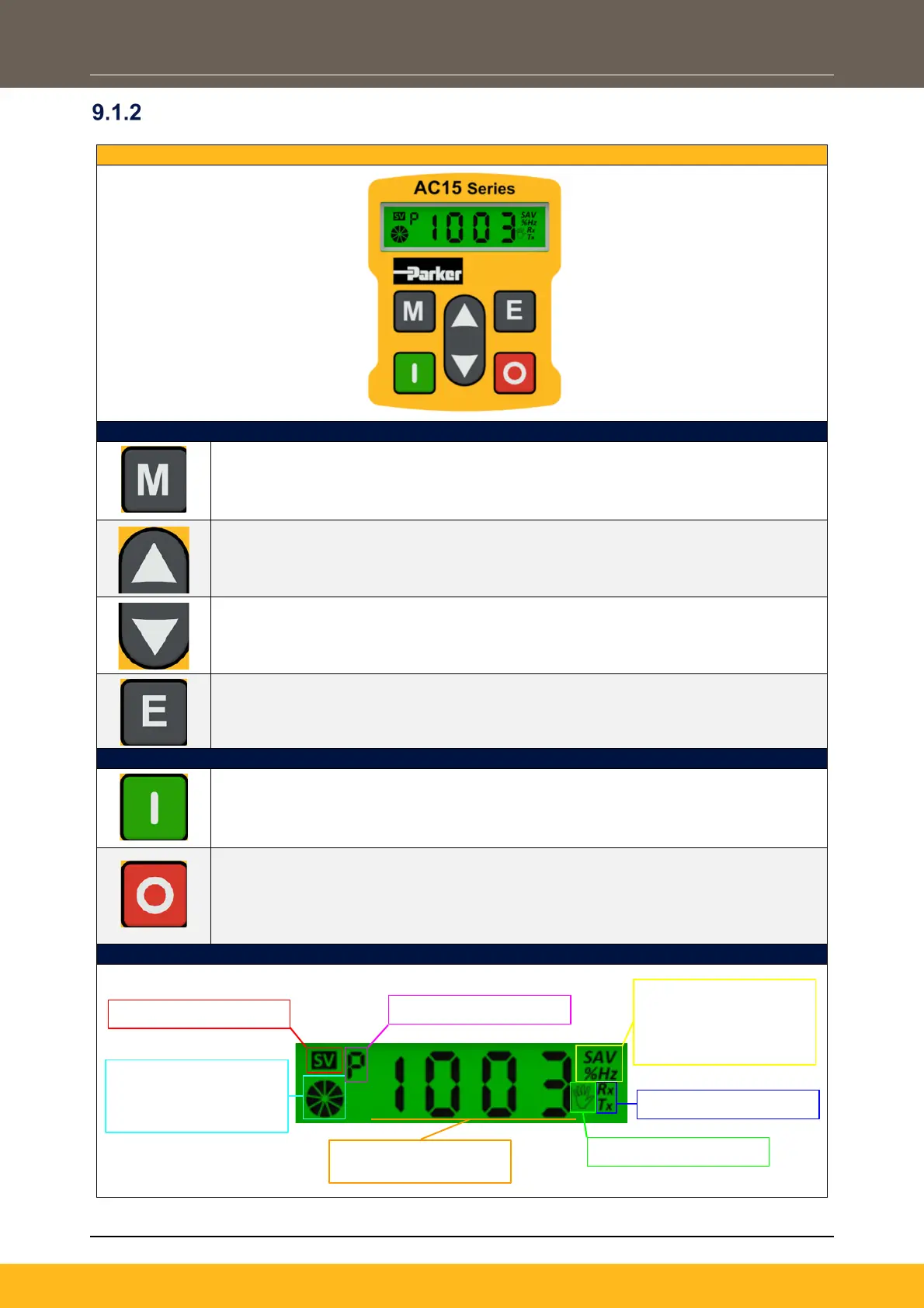

Onboard Drive Keypad & Display Overview
Keypad Overview
Navigation / Parameter Edit Keys
MENU Key
Navigation - Displays the next Menu level, or the first parameter of the current Menu.
Parameter - Allows a writable parameter to be modified.
UP Key
Navigation - Moves upwards through the list of parameters.
Parameter - Increments the value of the displayed parameter.
Press simultaneously withSTOPkey to select ‘
Forward
direction when in Localmode.
DOWN Key
Navigation - Moves downwards through the list of parameters.
Parameter - Decrements the value of the displayed parameter.
Press simultaneously with
STOP
key to select ‘
Reverse
direction when in
Local
mode.
ESCAPE Key
Navigation - Displays the previous level’s Menu.
Parameter - Returns to the parameter list.
Trip Acknowledge - Acknowledges displayed Trip or Error message.
Local Mode Operating Keys
RUN Key
Control - Runs the motor at a speed determined by the LOCAL SETPOINT.
Trip Reset - Resets any trips and then runs the motor as above. Only operates when the Inverter
is in LocalStart/Stop (Seq) mode.
STOP / RESET Key
Control - Stops the motor. Only operates when the Inverter is in LocalSequence mode.
Trip Reset - Resets any trips and clears displayed message if trip is no longer active.
Press and hold for approx. 3 seconds to toggle between ‘Local’ & ‘Remotemodes of operation.
Press simultaneously with
UP
or
DOWN
key to change direction when in
Local
mode.
Display
Value Units:
S = time in seconds
A = current in Amps
V = voltage in Volts
% = Percent
Hz = frequency in Hertz
‘Sensorless Vector’ Control
Mode ‘Active’ Indicator
Rotating Motor Shaft Indicator:
When turning ‘clockwise’ = drive
running in forward direction.
When turning ‘anticlockwise’ =
drive running in reverse
‘P’ when Parameter
‘-‘ when value is Negative
‘Local’ Control Mode ‘Active
Indicator
‘Communication’ Control Mode
Active’ Indicator
Indicates parameter number,
values, trip information, error
codes, etc.
