DOC-0017-03-EN: AC15 Series - Hardware Installation Manual
90 (125) DOC-0017-03-EN-B 04.04.2023

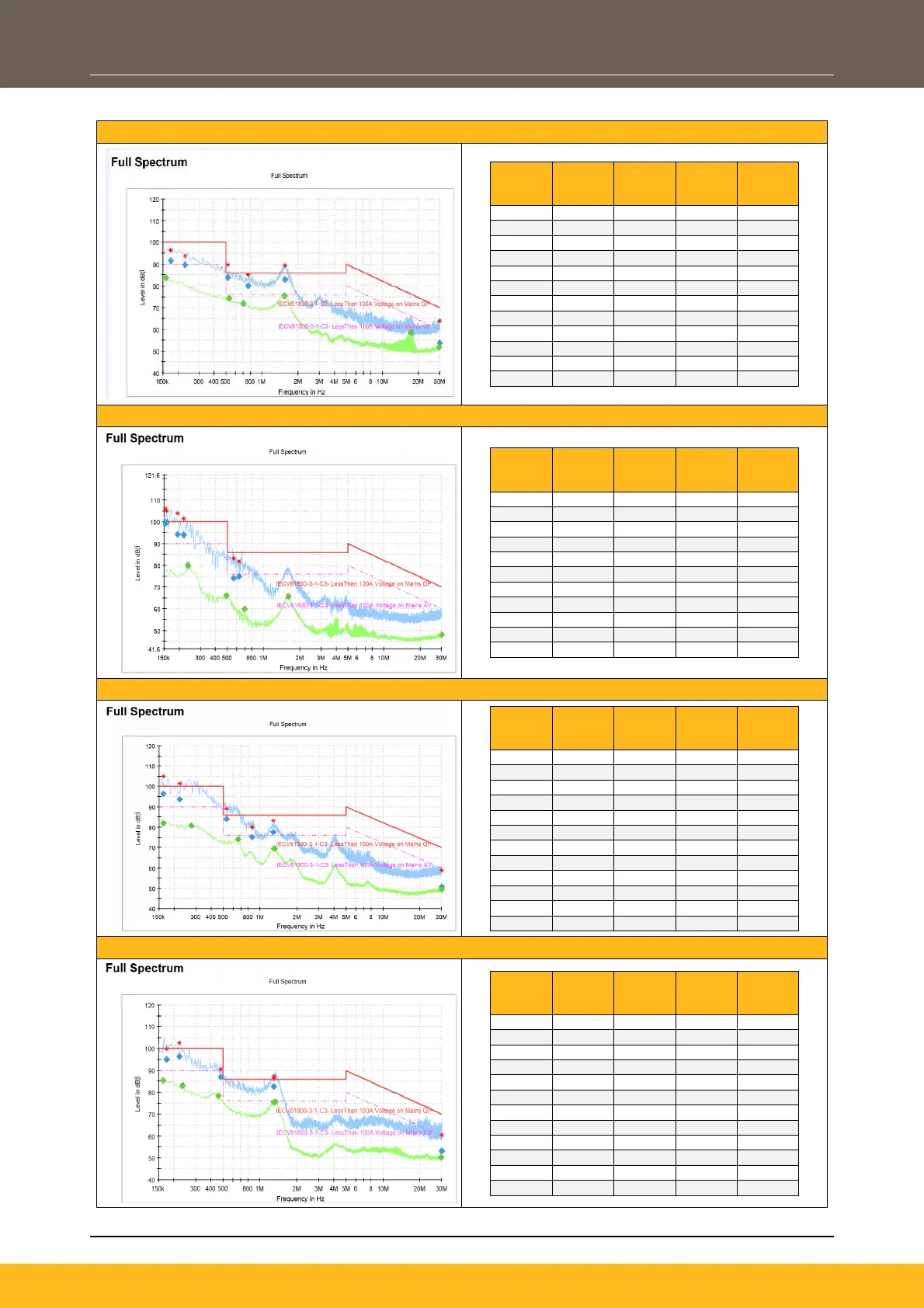

3ø, 400V Products:
Frame 1
Freq
(MHz)
Quasi
Peak
(dB/µV)
Ave
(dB/µV)
Limit
(dB/µV)
Margin
(dB/µV)
0.158
-
83.77
90.00
6.23
0.174
91.42
-
100.00
8.58
0.229
89.54
-
100.00
10.46
0.517
83.87
-
86.00
2.13
0.533
-
74.27
76.00
1.73
0.701
-
71.83
76.00
4.17
0.761
79.93
-
86.00
6.07
1.529
-
75.38
76.00
0.62
1.553
83.06
-
86.00
2.94
17.337
-
58.72
66.12
7.41
29.657
-
51.72
60.13
8.41
29.977
53.71
-
70.01
16.30
Frame 2
Freq
(MHz)
Quasi
Peak
(dB/µV)
Ave
(dB/µV)
Limit
(dB/µV)
Margin
(dB)
0.154
99.43
-
100.00
0.57
0.158
99.93
-
100.00
0.07
0.193
94.19
-
100.00
5.81
0.217
93.88
-
100.00
6.12
0.237
-
79.65
90.00
10.35
0.489
-
65.92
90.00
24.08
0.565
74.08
-
86.00
11.92
0.629
74.77
-
86.00
11.23
0.697
-
59.74
76.00
16.26
1.597
-
65.80
76.00
10.20
29.937
-
48.08
60.02
11.95
Frame 3
Freq
(MHz)
Quasi
Peak
(dB/µV)
Ave
(dB/µV)
Limit
(dB/µV)
Margin
(dB/µV)
0.162
-
81.79
90.00
8.21
0.162
96.38
-
100.00
3.62
0.221
93.81
-
100.00
6.19
0.273
-
80.84
90.00
9.16
0.529
84.01
-
86.00
1.99
0.661
-
74.11
76.00
1.89
0.857
75.16
-
86.00
10.84
1.273
77.47
-
86.00
8.53
1.289
-
69.42
76.00
6.58
1.305
-
69.60
76.00
6.40
29.913
50.72
-
70.03
19.32
29.959
-
49.51
60.02
10.51
Frame 4
Freq
(MHz)
Quasi
Peak
(dB/µV)
Ave
(dB/µV)
Limit
(dB/µV)
Margin
(dB/µV)
0.162
-
85.27
90.00
4.73
0.174
95.10
-
100.00
4.90
0.221
96.35
-
100.00
3.65
0.233
-
83.01
90.00
6.99
0.457
-
78.27
90.00
11.73
0.481
87.10
-
100.00
12.90
1.287
-
75.40
76.00
0.60
1.289
82.78
-
86.00
3.22
1.293
82.60
-
86.00
3.40
1.333
-
75.83
76.00
0.17
29.805
-
50.14
60.07
9.94
29.873
53.26
-
70.05
16.79
