Frame Relay configuration task list 186

SmartWare Software Configuration Guide 15 • Frame Relay configuration

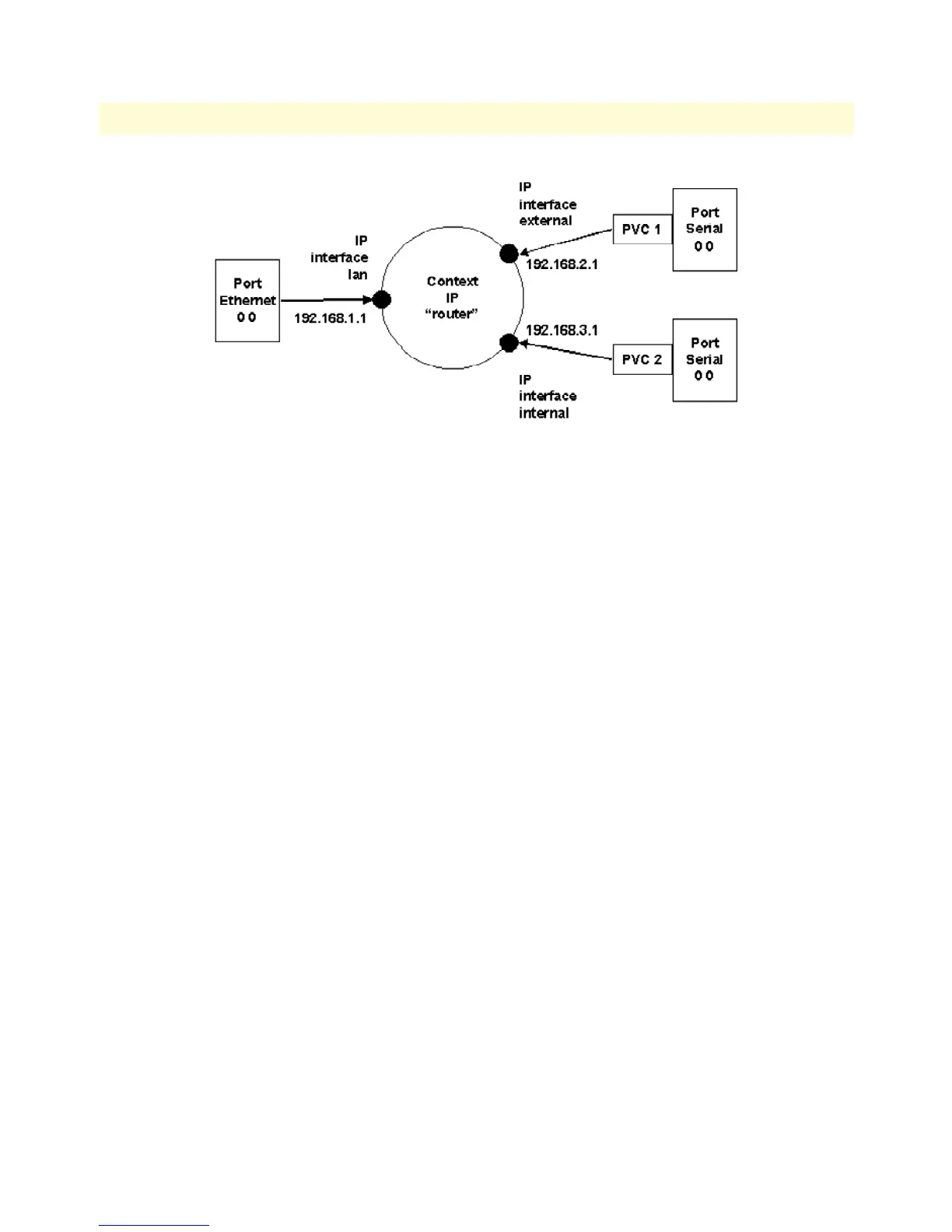

Figure 30. IP Context with logical IP interfaces bound to Ethernet port, serial port PVC 1 and PVC 2

The related IP, serial interface and Frame Relay conﬁguration procedure is listed below. Where necessary, com-

ments are added to the conﬁguration for better understanding.

1. Enter the conﬁguration mode.

node>enable

node#configure

…

2. Set up the IP interface conﬁguration ﬁrst. Be aware that not all of the necessary settings are listed below.

node(cfg)#context ip router

node(ctx-ip)[router]#interface external

node(if-ip)[external]#interface internal

node(if-ip)[internal]#interface lan

node(if-ip)[lan]#exit

node(ctx-ip)[router]#interface internal

node(if-ip)[internal]#ipaddress 192.168.3.1 255.255.255.0

node(if-ip)[internal]#interface external

node(if-ip)[external]#ipaddress 192.168.2.1 255.255.255.0

node(if-ip)[external]#interface lan

node(if-ip)[lan]#ipaddress 192.168.1.1 255.255.255.0

…

3. Deﬁne a voice proﬁle which gives priority to voice packets. Set the rate limit according to the bandwidth

available for voice and data on PVC 1 (512kBits/s in this case).

node(cfg)#profile service-policy VoicePrio

node(pf-srvpl)[VoicePr~]#rate-limit 512

node(pf-srvpl)[VoicePr~]#source class local-voice

node(src)[local-v~]#priority

node(src)[local-v~]#source class local-default

node(src)[local-d~]#priority

node(src)[local-d~]#source class default

…
