76180 EM -15/73-
II. Assembly procedures of Front Housing Block
Disassemble the front housing block in reverse order of assembly procedures according to “Note
of disassembly”.

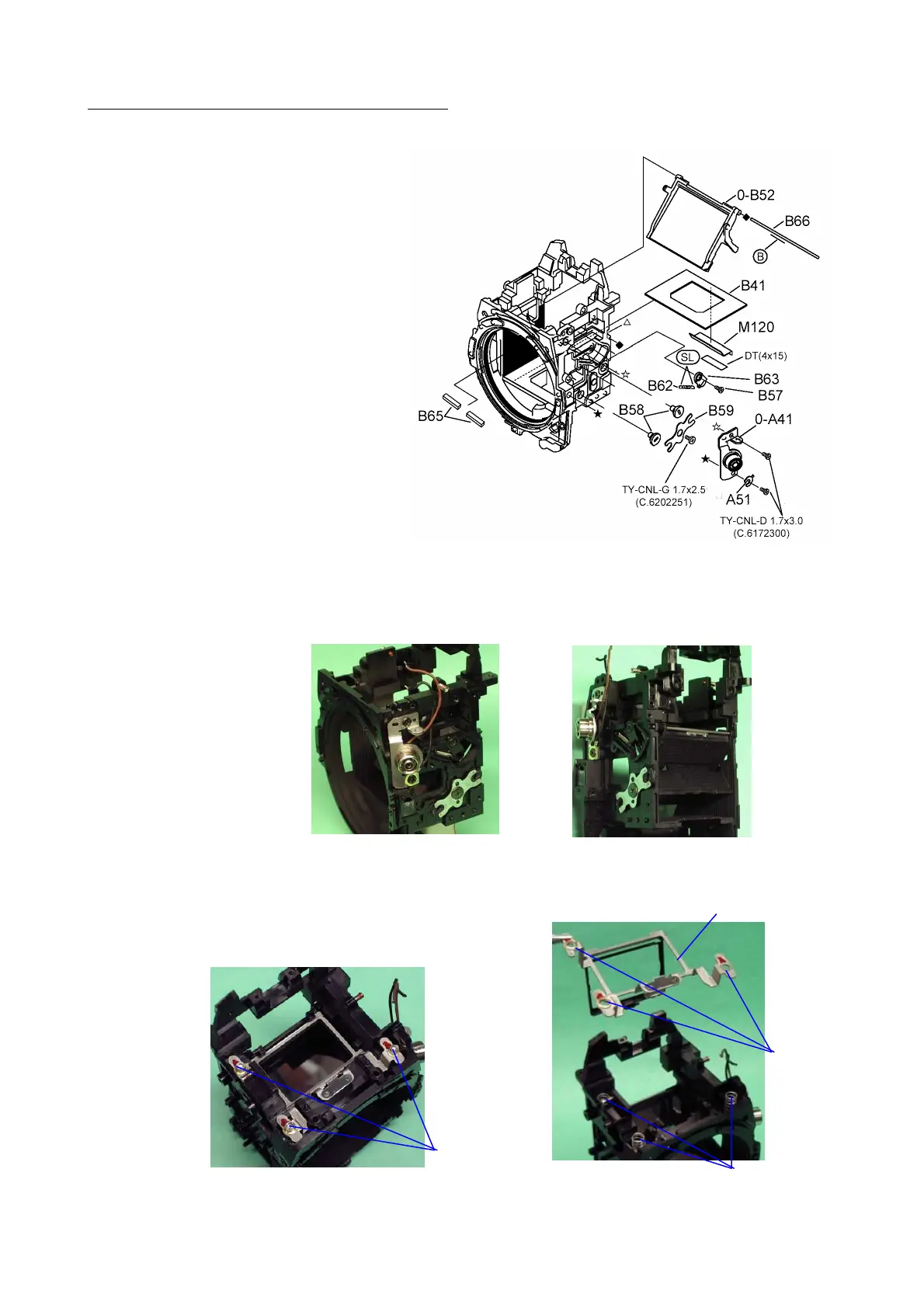

Assembly Procedures
1. Front Housing Block
① B65 x2, B41, M120, B58 x2, B59
② 0-A41 (X- terminal)･･･ Brown lead wire 40mm
③ A51 (Lug plate)･･･ Black lead wire 40mm
④ TY-CNL-D1.7x3.0 (2pcs.)
2. 0-B52･B62
① 0-B52 (Mirror seat)
② B66･･･ Apply the Dia-bond 1663 in the center part of B66 and fix 0-B52.
③ B63
④ B57 (Shaft screw)
⑤ B62･･･ Apply the screw-lock agent on each end.
3. 0-M22
[Required equipment] Hexagonal screwdriver 1.5mm
① M104 (3pcs.)
② 0-M22 (0-M4, M23) ･･･ 0-M4 should be unhooked condition.
③ W65 x3 (t=0.5)
④ M103 x3 (Focus adjusting screw)
④
①
②
③
To Next Page
