16-2. Writing FW
In this step, the connection of each circuit board and the output of a video signal are confirmed
by writing FW.
[CAUTION]
1. Rewriting the FW (Firmware) is necessary whenever 0-T100 or 0-T600
is replaced.
2. Always use the latest version FW whenever writing the FW.
3. Never install or remove the CF card while turning the camera’s power ON as this may cause
the CF card or camera to be damaged and become unusable.
4. When the FW writing is done, the menu setting, the custom function setting, the language
setting, and the date setting are initialized.

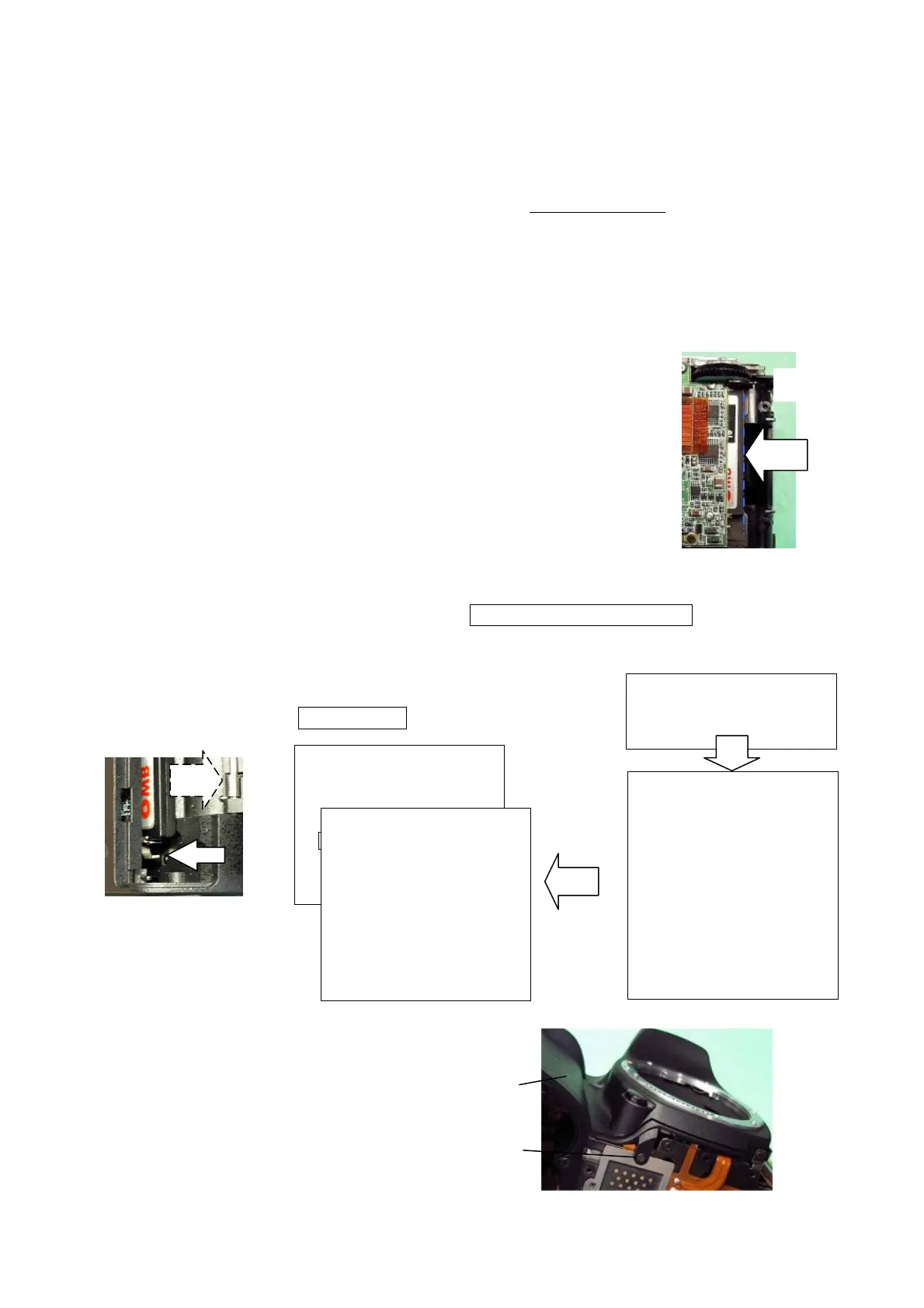

① Confirm the main switch land on 0-T100 is shorted by soldering.
② Insert the CF card (for writing FW) into 0-T700.
(The CF card is projected 5mm from end of 0-T700.)
③ Connect the video cable and AC adapter to the camera.
④ The version of CPU/DSP will be displayed on the TV monitor.
[NOTE] If you want to cancel writing firmware, disconnect AC adapter and eject the CF card.
⑤ Remove the CF card when the message as >>> EJECT CF CARD <<< is displayed, and
then the loading of firmware will be started. Wait 30~60 sec. until the loading is finished.
[CAUTION] Do not turn OFF the camera while loading firmware.
⑥ Disconnect the video cable and the AC adapter
from the camera when POWER OFF is displayed.
⑦ Remove soldering on the main SW land of T100.
17. A102 (Front Cover)
① A102
② CNL-D1.7x3.0
⑤
②
①
①
DETECTED BOTH F/W FILE
NOW LOADING
DETECTED FIRMWARE FILE
COMPLETE LOADING
------- CPU --------
CURRENT VER.1.00.00.05
UPDATE VER.1.00.00.15
======= DSP ========
CURRENT VER.1.00.00.05
UPDATE VER.1.00.00.15
PENTAX *IST D
UPDATING DSP FIRMWARE
SECTOR** >> PROGRAM
_____________
NEVER POWER OFF
PENTAX *IST D
UPDATING DSP FIRMWARE
････ COMPLETE ････
VERSION 1.00.00.15
POWER OFF
