76180 EM -41/73-
22-2 [CONF] Static Current
① Connect the DC cord to the camera and then the camera will be turned ON. At this time,
there must be neither short nor Leakage.
22-3 [CONF] Preview・LCD panel illumination
① When the main SW is turned to , the diaphragm actuate lever must be done vertical
motion.
② When the main SW returns to ON, the LCD display must be illuminated.

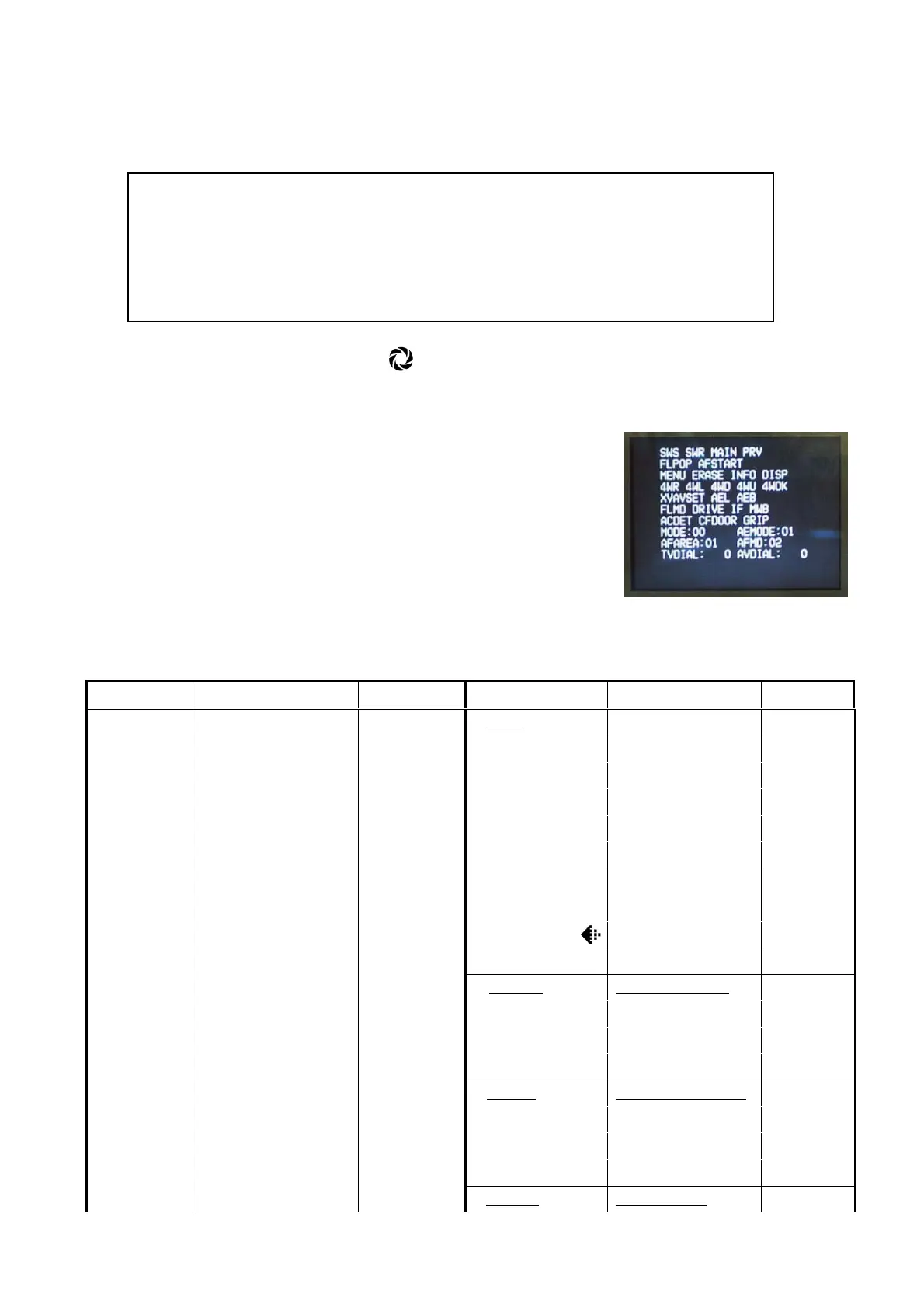

22-4 [CONF] Switch Function
① Turn the main SW to OFF and insert the CF card (for Testing)
into the camera.
② Turn the main SW to ON while opening the CF card cover,
and the screen for SW testing will be displayed on the LCD
monitor.
③ Operate each SW and the dial according to the LCD monitor. The color of the display
changes according to the operation when normally working. (See the table below)
④ Turn the main SW to OFF and remove the CF card from the camera.
Symbol Button Color display Symbol Button Color display
a. SWS release button Change v. MODE Mode dial Display code
b. SWR Release button Change Green Green mode 00
c. PRV Preview dial Change P Program 08
d. FLPOP Pop-up Change TV TV mode 0C
e. AFSTART AF button Change AV AV mode 04
f. MENU MENU Change M Manual mode 06
g. ERASE Trash Change B Bulb mode 0E
h. INFO INFO button Change ISO ISO mode 02
i. DISPLAY Arrow Change File mode 03
j. 4WR 4 way button Change WB White Balance 01
k. 4WL 4 way button Change w. AEMODE Metering mode lever Display code
l. 4WD 4 way button Change SPOT SPOT 02
m. 4WU 4 way button Change CENTER-WEIGHTED CENTER-WEIGHTED 00
n. XVAVSET Exp. compensation button Change MULTI-SEGMENT MULTI-SEGMENT 01
o. AEL AEL button Change x. AFAREA Focus point select lever Display code
p. AEB DPOF button Change SPOT SPOT 02
q. FLMD Flash button Change SEL SEL 00
r. DRIVE Self timer btn Change AUTO AUTO 01
s. IF Green dot Change y. AFMODE Focus mode SW Display code
Static current:
Main SW/OFF ･･･ Ave.10mA
Main SW/ON (Light metering OFF)･･･ Ave.240mA
Main SW/ON (Light metering ON)･･･ Ave.420mA
on the Auto power OFF condition･･･ Ave.10mA
To Next Page
