76180 EM -30/73-

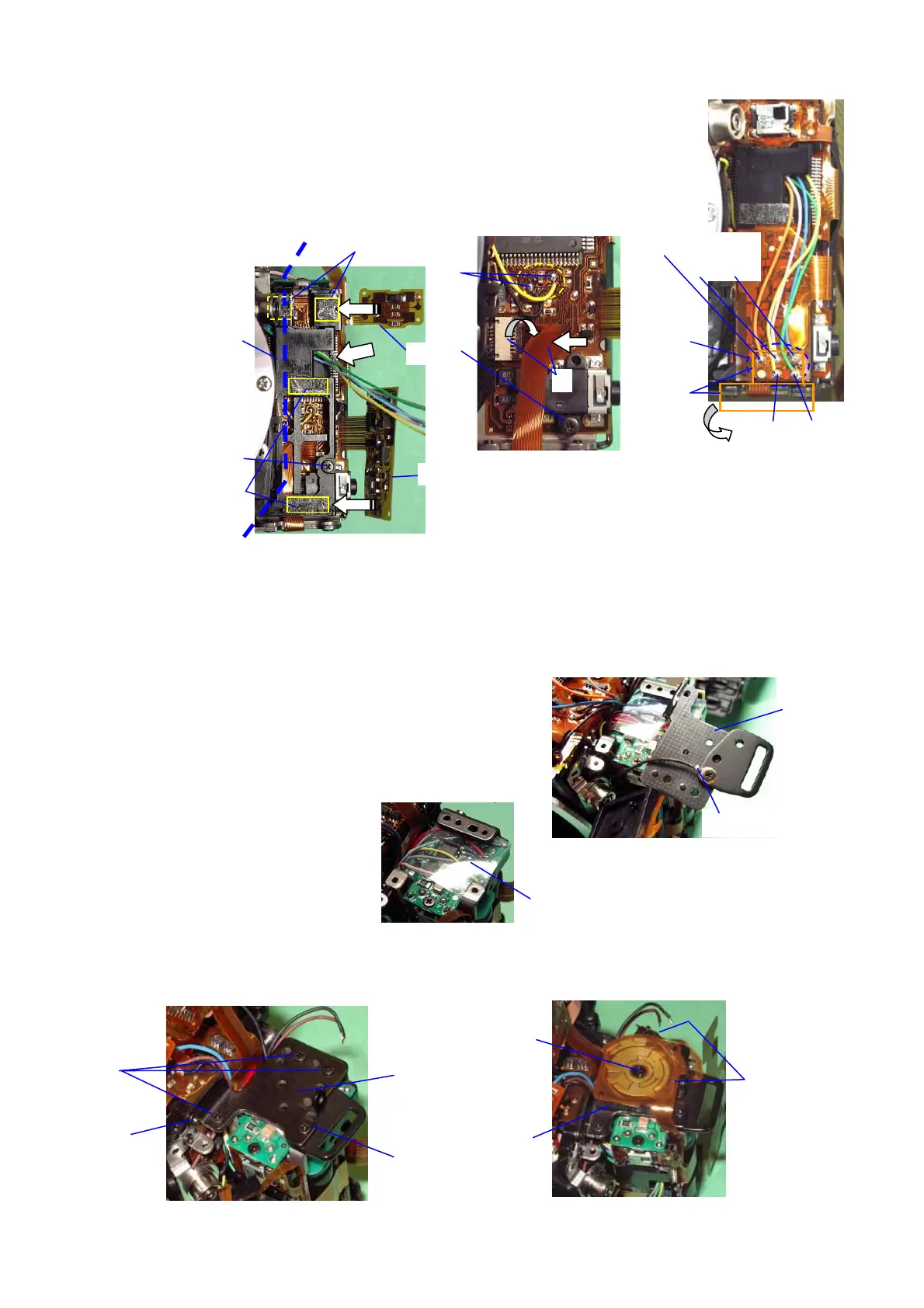

8. A49 (Remote Control Base Plate)
① CNL-D1.4x4.0･･･ Cable release socket
② Connect the flexible board of T301 to the connector terminal of 0-T100.
③ Solder two lead wires. (Yellow, Black)
④ A49 (If there is a black wire for CE marking, arrange it inside A49.)
⑤ CNL-D1.4x5.0
⑥ Stick the flexible board of T100 on A49 (Remote control base plate) by DT.
⑦ Stick the remote control receiver of 0-T100 on A49 with care to avoid breaking the flexible
board.
⑧ Solder 5 lead wires. (Green, Blue, Yellow, Pink, Orange or Light blue)
⑨ PT (8x10), PT (10x20) ･･･ for CE marking
9. A5 (Right Shoulder Plate)
① Put T62 on 0-Q200.
② A5 (Solder a black lead wire for CE marking)
③ TY-CNL-D1.7x3.5
④ CNL-D1.7x3.5
⑤ CNL-D1.7x2.5 (3pcs.)
⑥ A338･･･ Mode dial base plate
⑦ CNL-D1.7x2.5
⑧ Stick the switch lands of 0-T100 on A338 with care to avoid breaking the flexible board.
①
⑤
④
③
②
⑦
⑥
⑧
⑦
⑥
⑤
④
DT(5x5)
DT(4x10)
(T81)
*Black 130mm (CE)
③
②
①
⑧
⑨
Orange/Sky-blue
Pink, Blue
Yellow, Green
*Black (T81)
A5(reverse)
To Next Page
