76180 EM -16/73-
⑰

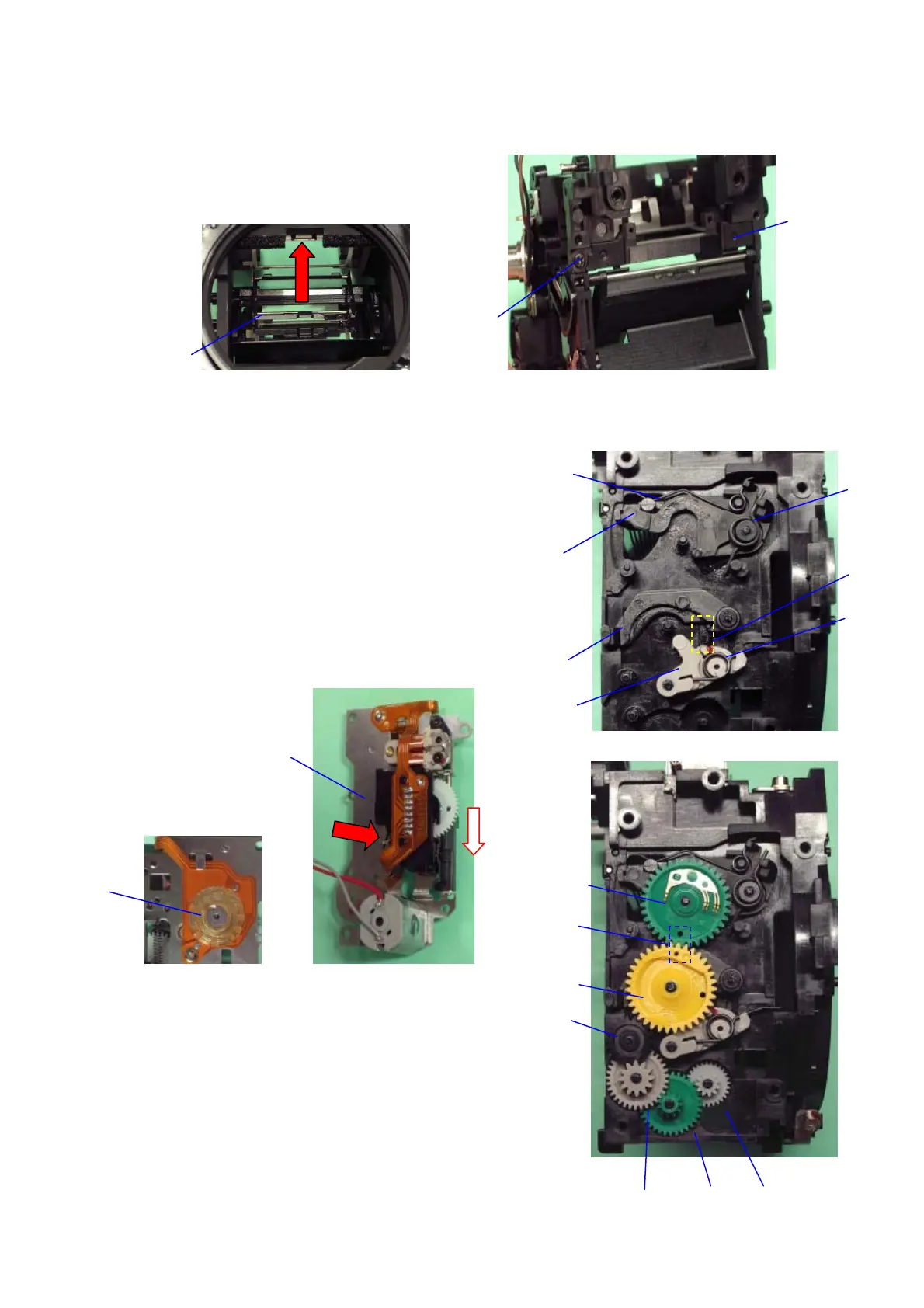

⑤ [ADJ.] Pre-adjusting the Focus
Screw-in 3 adjusting screws until they stops, and then screw back two turns.
⑥ Hook 0-M4.
⑦ Install M21 while positioning the boss.
⑧ TY-CNS1.7x3.5
4. 0-G100
① B11
② B20･･･ The spring (B20) should be set on the shaft of 0-B52.
③ B19
④ B10
⑤ B9
⑥ B17
⑦ B18･･･Apply the screw-lock agent on end of spring.
⑧ 0-B8
⑨ B7
⑩ Align the both hole of 0-B8 and B7.
⑪ B3
⑫ B4
⑬ B5
⑭ B6
⑮ Clean the code plate and apply G151.
⑯ Latch the lever of G100 while pushing down
the sliding plate.
⑰ 0-G100
⑦
⑧
⑥
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮
⑯
To Next Page
