18. [ADJ/CONF] AF Joint stroke
[Required equipment] Vernier calipers
① If AF mode SW (0-I331) is installed, set the AF mode SW to AF.S.
② [CONF] AF coupler must be projected from the mount surface by 1.2 mm or more
.
③ [CONF] When the mount lock pin comes to the mount surface with depressing the mount
lock lever, the AF coupler must not be projected out of the mount surface.
④ [ADJ] Adjust 0-A121 by turning an eccentric screw, and apply the screw-lock agent to the
screw.
19. 0-T100 (1)
① DT (8x18)
② M26
③ M25
④ Install the inner LCD display of T100.･･･ TY-CNL-D1.7x3.0 (2pcs.)
20. [ADJ] Viewfinder Indications
[Required equipment]
Regulated DC power supply (8V・3A), DC cord (Jig), 0-T800, Cable switch CS-205
20-1. Preparation

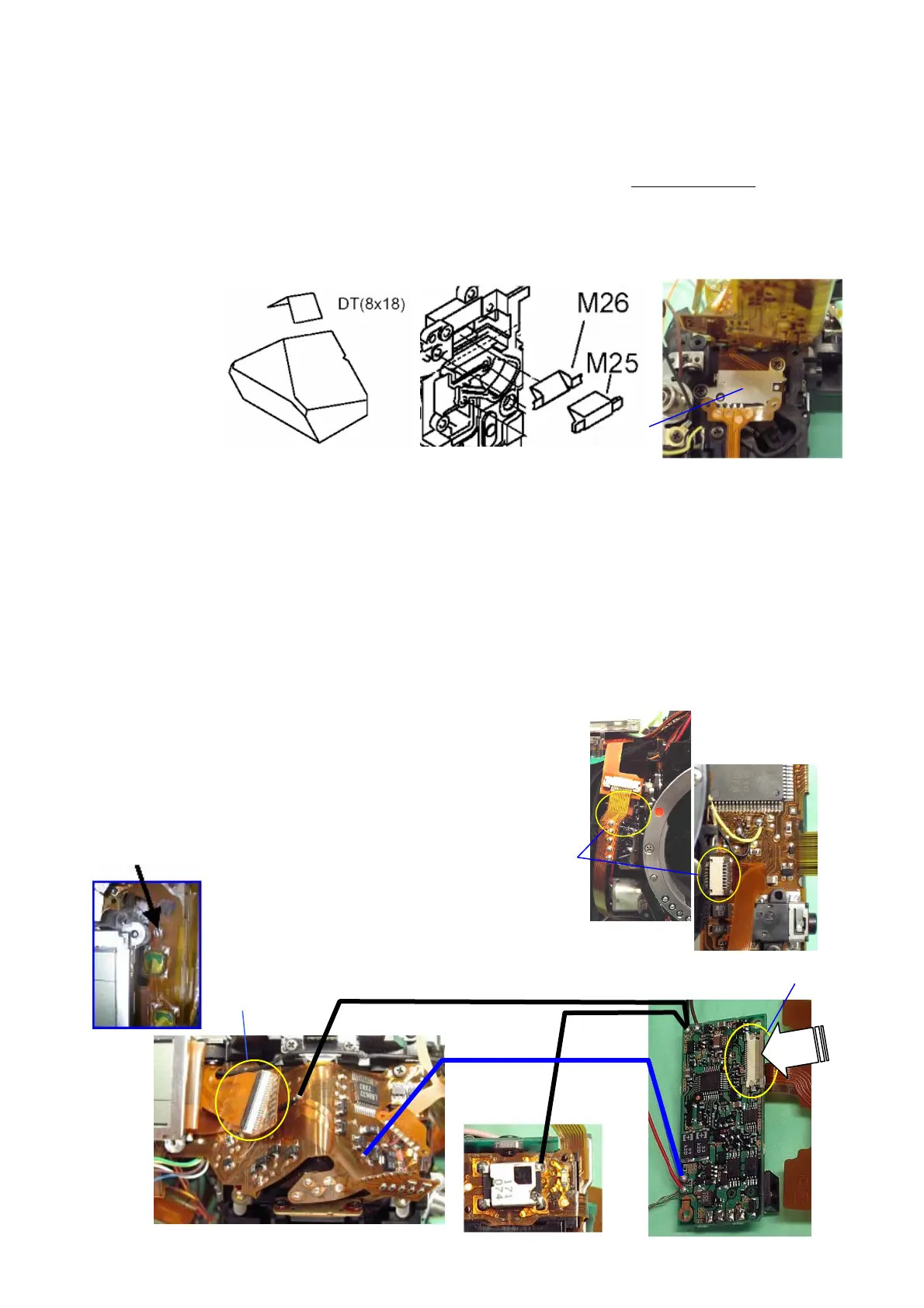

[CAUTION] Note miss wiring, wrong polarity and short circuit, because the lead wires are
soldered to 0-T100 directly.
① Connect the DC cord to the DC power supply and set voltage to DC6.5V (3A).
② Short the main switch lands as shown in the figure right.
③ Connect the flexible board of 0-O100 to 0-T100.
④ Connect the flexible board of 0-T100 to 0-T800.
⑤ Connect the both flexible board of T301 to 0-T100.
⑥ Solder 3 lead wires as shown in the figure below.
④
③
⑤
②
