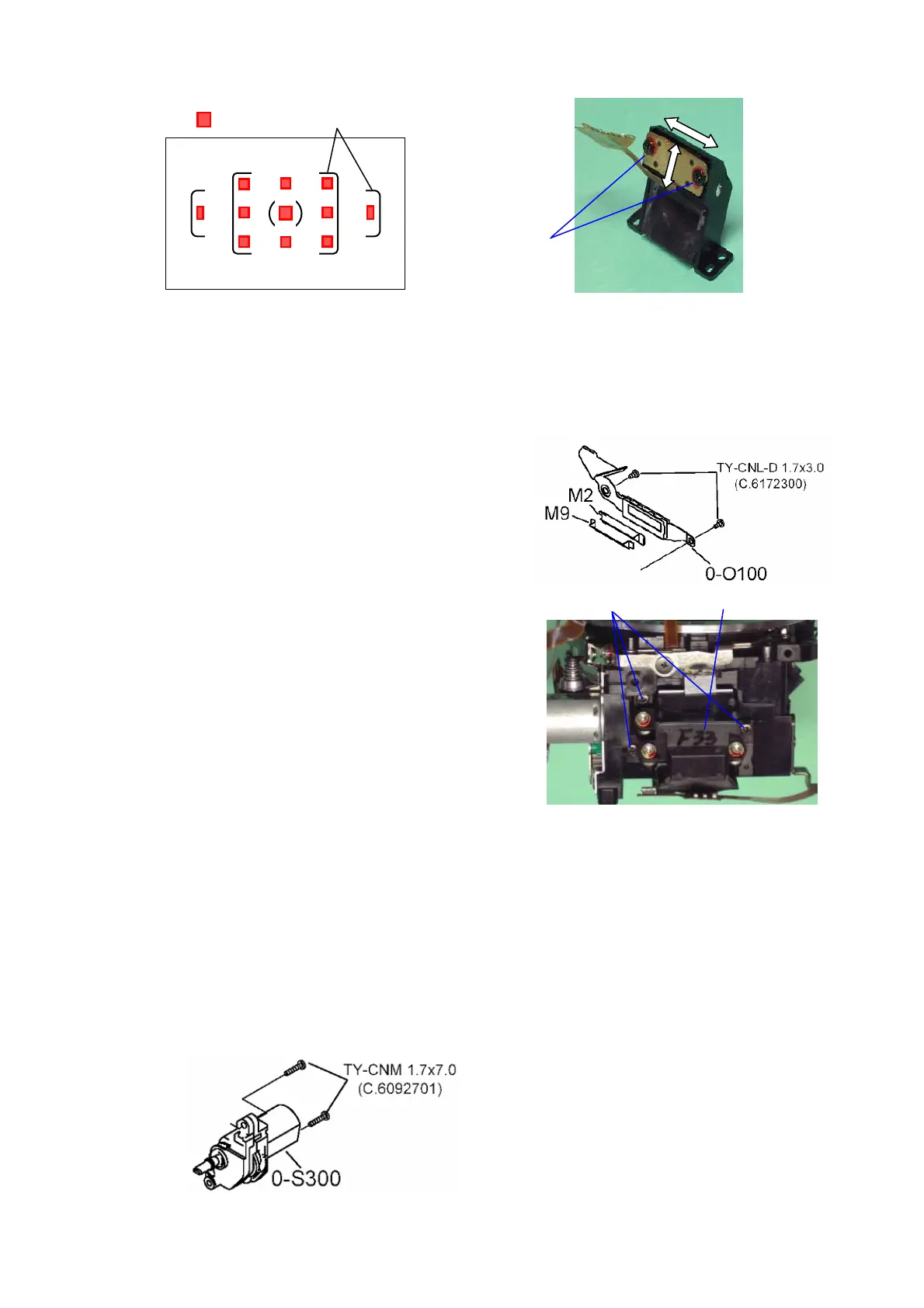

76180 EM -22/73-
③ Loosen 2 screws, and then adjust the position of 0-O170.
④ Tighten 2 screws, and then confirm the position again.
⑤ After adjustment is done, apply the screw-lock agent to both screws and remove the lead
wires from 0-O170.
15. 0-O100
① M9
② M2
③ 0-O100
④ Temporarily tighten TY-CNL-D1.7x3.0 (2pcs.)
16. 0-M100
[Required equipment] Hexagonal screwdriver 1.5mm
① 0-M100
② TY-CNL-D1.7x3.5 (3pcs.)
③ [ADJ] Temporary adjustment of AF block･･･ Screw in 3 adjusting screws until they stops,
then screw back two turns.
[NOTE] After CCD position adjustment with programmed software is done, Apply screw-lock
agent to between the head of adjustment screws and washers.
17. 0-S300
① 0-S300
② TY-CNM1.7x7.0 (2pcs.)･･･ Apply the screw-lock agent to both screws.
: SI-LED AF frame
③
②
①
To Next Page
