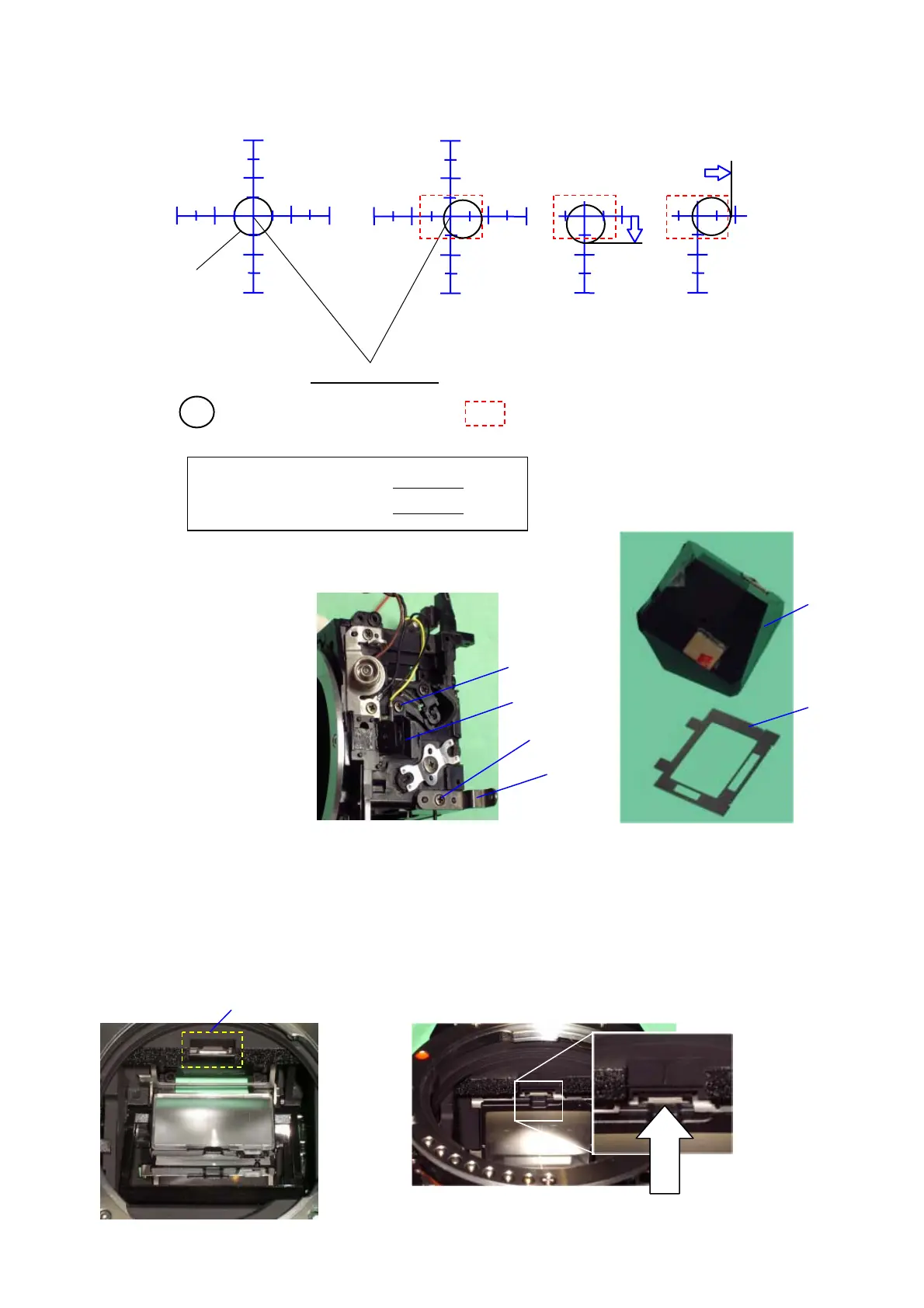

76180 EM -19/73-
: Tolerance of 1mm hole : (X-axis = ±0.6, Y-axis = ±0.8)
③ After adjustment is done, apply the super-glue to both B58.
8. 0-J201・A163
① 0-J201 (Yellow, Black)
② TY-CNL-D1.7x3.5
③ A163
④ TY-CNL-D1.7x3.0
9. 0-L3・L2
[CAUTION] Confirm there is neither dust nor scratch on 0-L3 and L2.
① M3･･･ DT
② 0-L3
③ Temporarily tighten M16 x2 (Screw).
④ Down the focusing screen frame (0-M4) by releasing the hook portion.
⑤ Put the focusing screen (L2) on the frame and then push it back until it locks in place.
Tolerance･･･ X-axis : ±0.3mm
Y-axis : ±0.1mm
Scale
Center of standard
1mm hole
OK OK NG NG
Standard
1
2
- 2
- 1
2
1
- 1
- 2
1
2
- 2
- 1
2
1
- 1
- 2
NG: 0.8(Y) or over
NG: 0.6(X) or over
①
②
③
④
①
②
④
⑤
To Next Page
