76180 EM -40/73-

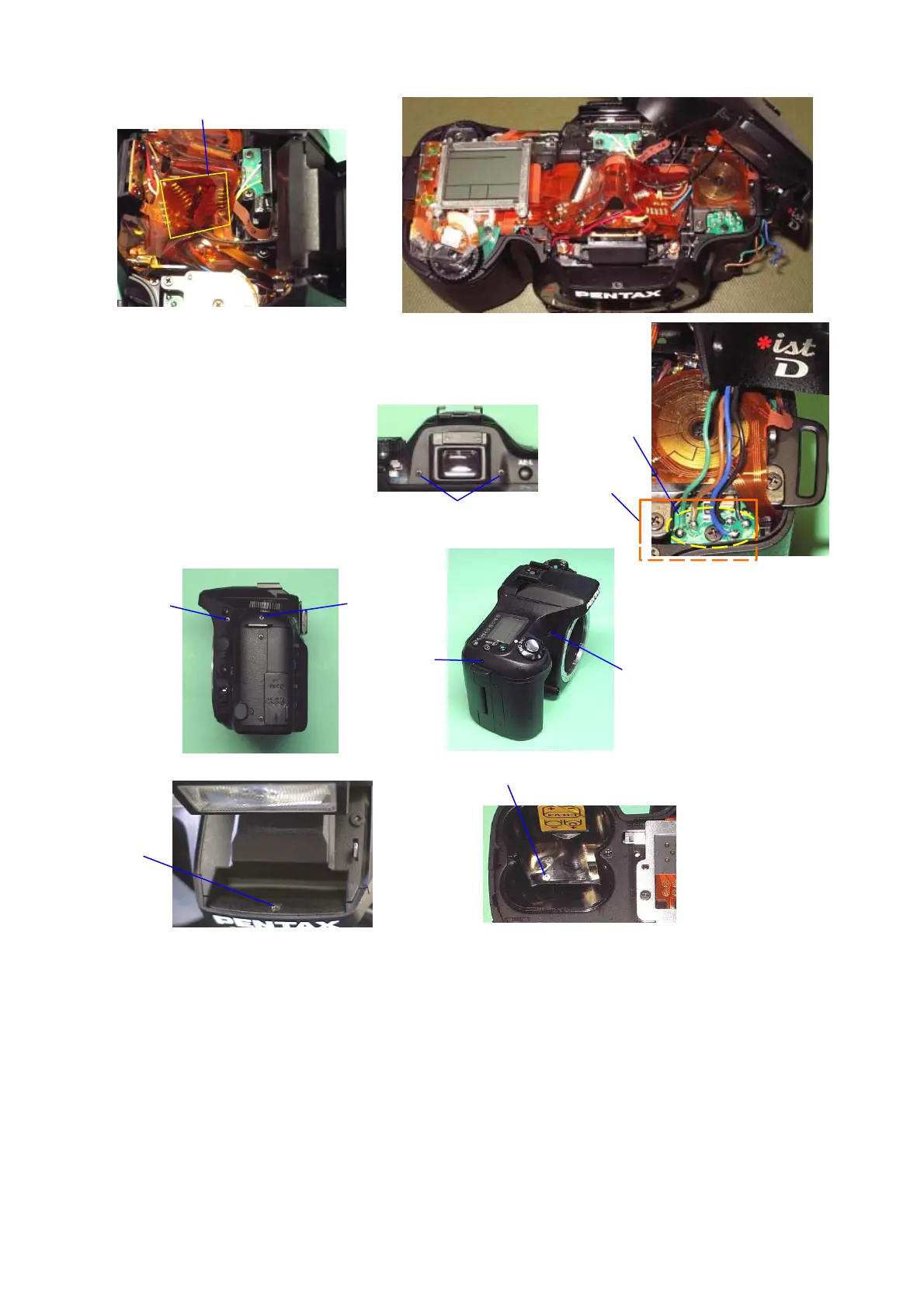

⑦ Solder 4 lead wires (Blue, Black, Brown, Green)･･･Q100
[NOTE] Stick PT (10x20) on Q200 for CE marking.
⑧ A64 x2 (Screw, 11mm)
⑨ A69 (Screw (TY), 3.5mm)
⑩ A63 (Screw, 4.2mm)
⑪ A62 (Screw, 3.5mm)
⑫ A61 (Screw, 2.5mm)
⑬ TY-CNS1.4x2.5
⑭ A70 (Screw (Ni),12mm)
22. [CONF] Function check Ⅲ
[Required equipment] CF card 2pcs (for SW testing and Taking picture), Color video monitor,
Video cable (I-VC2), Regulated DC power supply (8V・3A), DC cord (Jig), Lens for checking
(FA50mmF1.4), Flash for checking (AF360FGZ, AF500FTZ or AF330FTZ), Circuit tester
22-1. Preparation
① Connect the DC cord to the DC power supply and set voltage to DC6.5V.
② Connect the video cable to the color video monitor.
③ Temporarily install the bottom cover to the main body. (The battery cover, terminal cover
and backup battery are not necessary.)
⑥
⑧
⑪
⑩
⑫
⑨
⑬
⑭
⑦
*PT(10x20)
To Next Page
