76180 EM -27/73-
*A429 (Black 100mm)
⑦
⑧

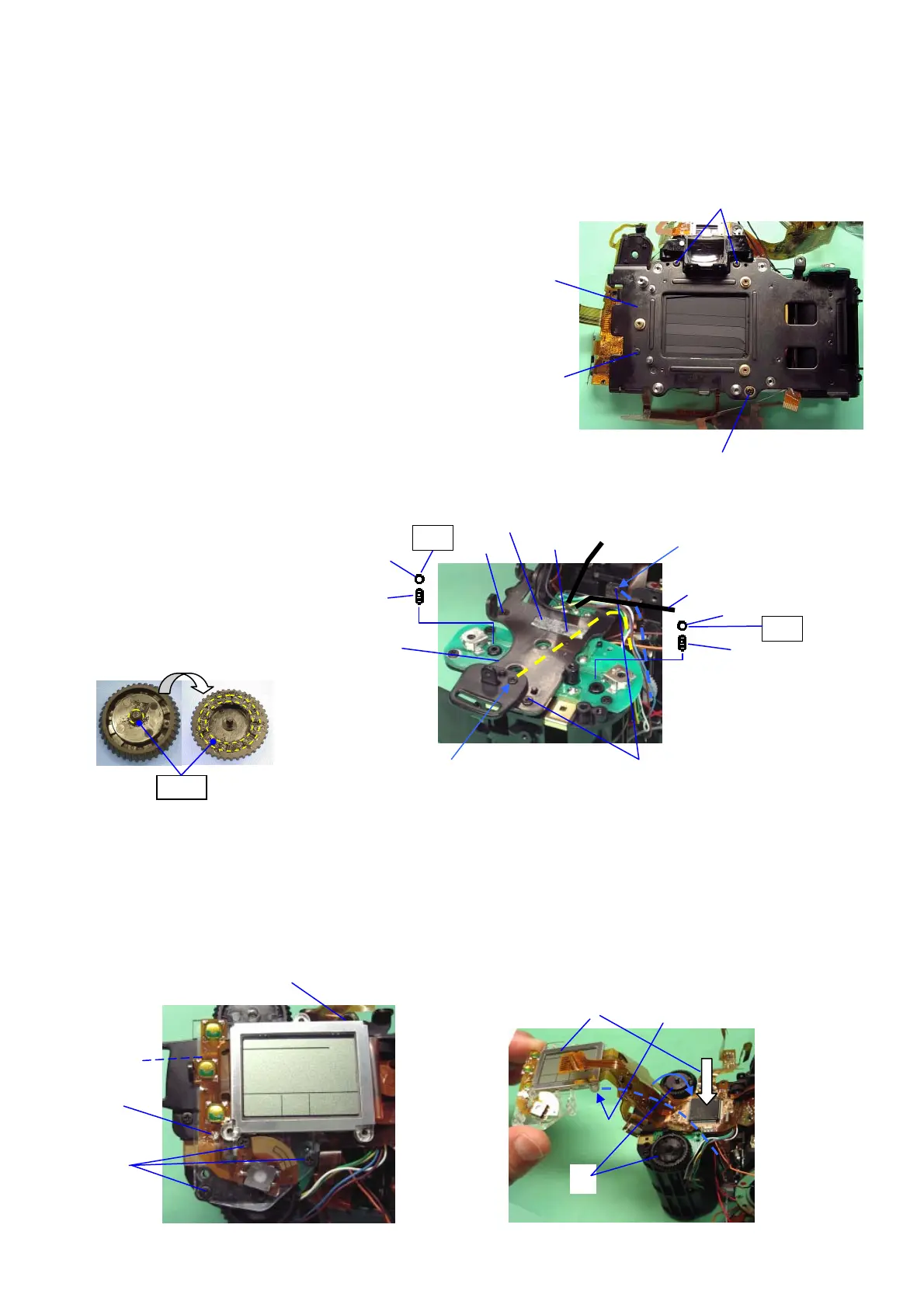

3. Front Housing Block
① Confirm the 0-E000 is in charge.
② Confirm the front housing block is in mirror down condition.
③ Put the main plate on the front housing block with care to avoid pinching lead wares or
flexible boards.
④ TY-CNM2.0x6.0 (2pcs.)
⑤ TY-CNL-D2.0x9.0
⑥ CNL-D1.7x2.5
[NOTE] If necessary, install M311 (Eyepiece frame cove)
to prevent scratches on the Eyepiece lens.
4.T903 (Tv/Av dial)
① A6
② TY-CNL-D1.7x4.0 (2pcs.)
(Tighten a retainer screw if the lug plate is installed.)
③ TY-CSM1.7x4.0
④ CSM1.7x2.5
⑤ A17 (2pcs.)
･･･ Dial click spring
⑥ BO1.5 (2pcs.)･･･ G134
⑦ T903 (2pcs.)･･･ G134
⑧ Install the LCD frame of 0-T100 with arranging the flexible board by using DT.
⑨ CNL-D1.7x2.5
⑩ TY-CNL-D1.7x9.0 (3pcs.)
⑪ TY-CNL-D2.0x9.0
⑫ Remove the solder from the main switch land of T100.
⑬ Stick the flexible board of 0-T100 on the LCD frame.
⑩
⑨
⑪
⑫
G134
⑤
④
⑥
③
④
③
②
⑥
⑤
**A429
(Black 100mm)
*A429
(Black/Yellow 130mm)
⑥
⑤
①
DT(5x15)
Black (short)
Black (long)
G134
G134
To Next Page
