76180 EM -72/73-

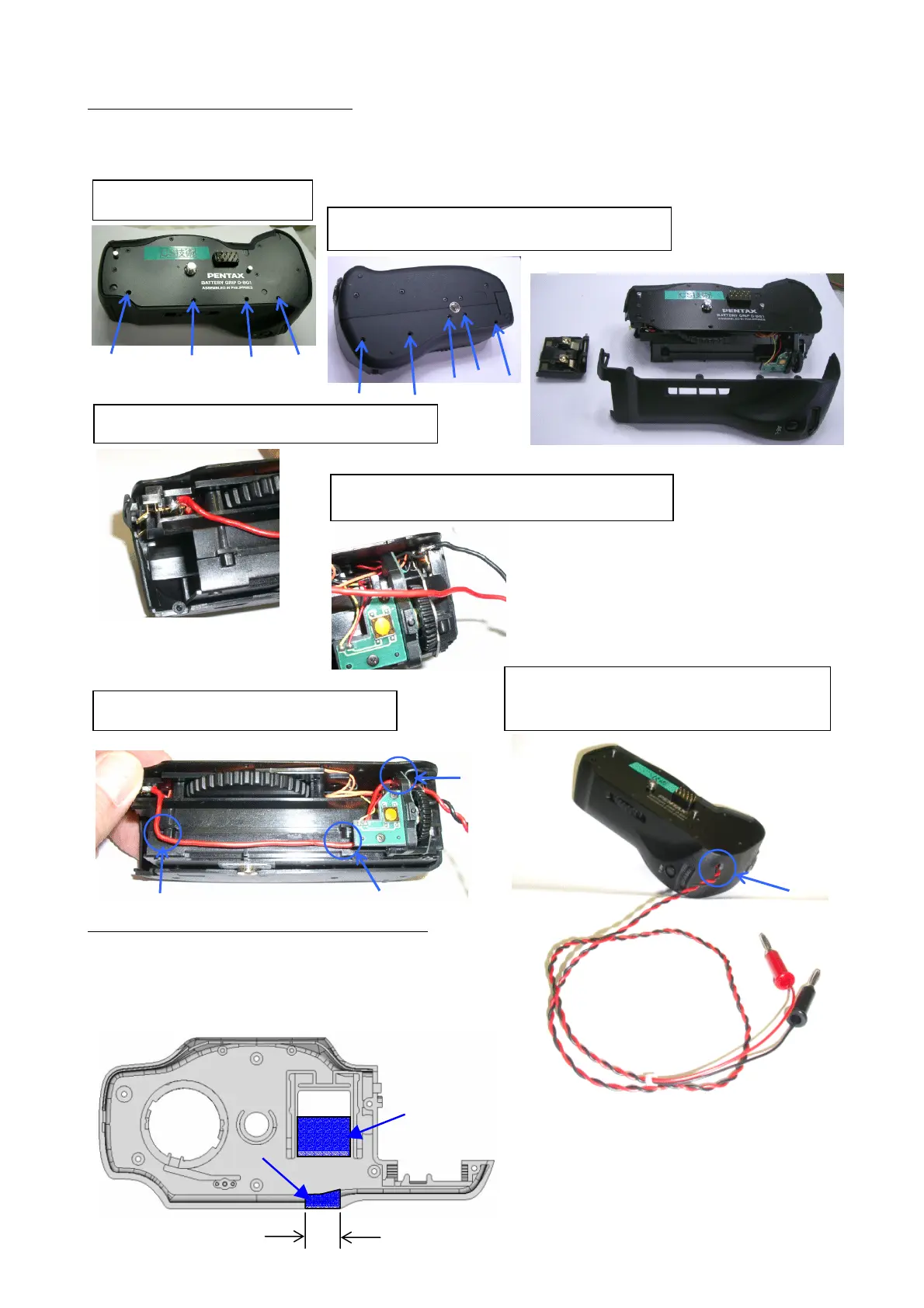

Method for marking power adapter
Preparation: Battery grip D-BG1 (Prod.No.79082) and lead wire for powers supply (x2)
Method for making temporally bottom cover
Preparation: A401 bottom cover
① Cut off part of bottom cover as shown in fig
for connecting camera cable.
3. Solder (+) read wire for Y12
4. Solder (-) read wire for Y10
1. Remove Y78 x4
2. Remove Y79 x3 and Y80 x2
5. Arenge lead wire as shown in Fig.
6. Drill a hole in Y2 and thread wires
through hole then put back together.
10mm
To Next Page
