76180 EM -35/73-

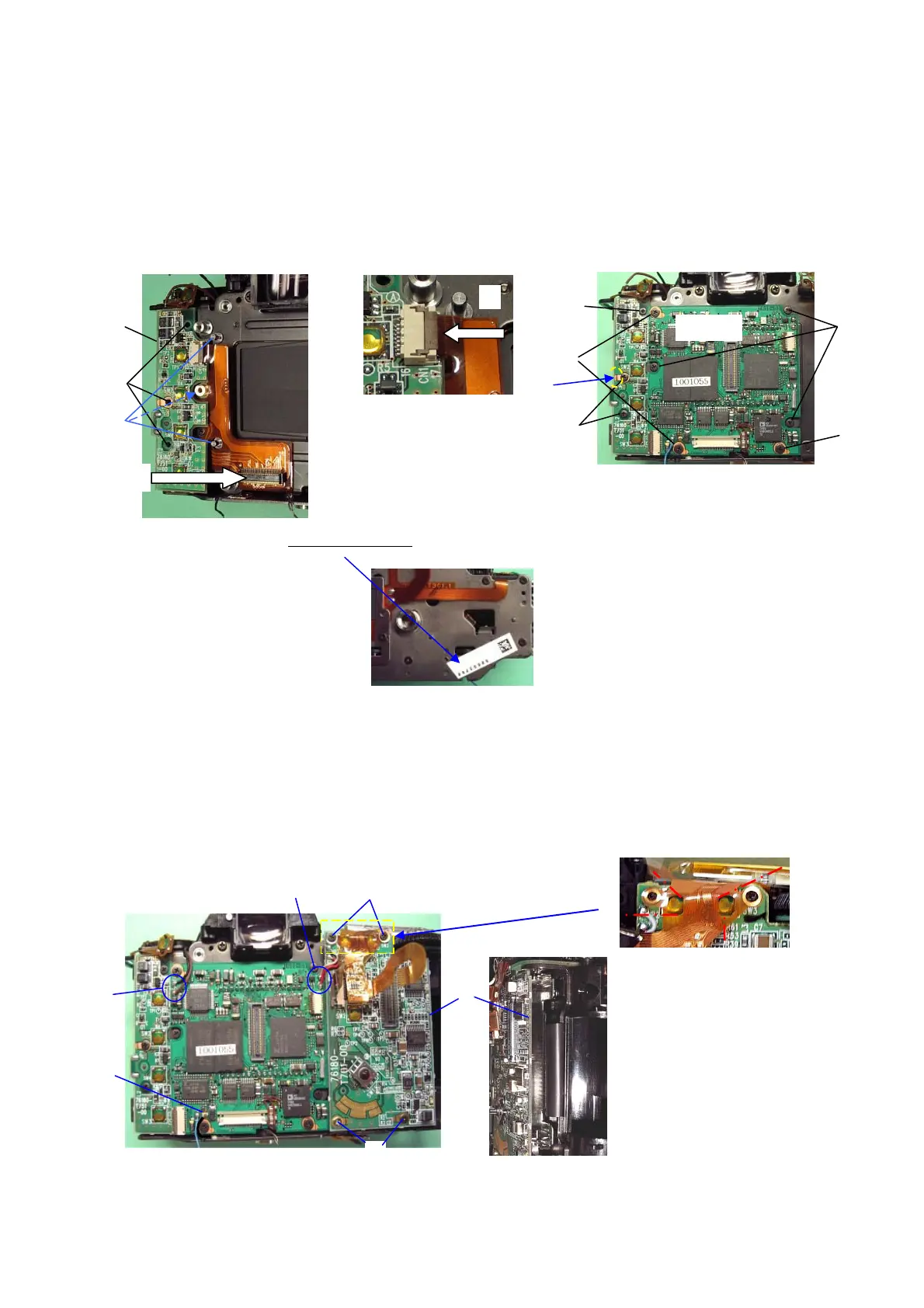

⑤ Install 0-T600 to the main body while matching it to two positioning studs so that there is
no space between them.
⑥ CNL-D1.7x2.5 (3pcs.)･･･0-T600
⑦ A60 x3 (Shoulder screw)
⑧ Short the land of 0-T750 by solder as shown in the figure below.
⑨ Tighten CNL-D1.7x2.5 (3pcs.) on 0-T750.
[CAUTION] Replace the ID number seal
of CCD with new one attached 0-T600 whenever the
CCD Block is replaced.
15. 0-T700 (CF P.C. Board assy.)
① Install 0-T700 while positioning A19 (Friction sheet).
② CNL-D1.7x2.5 (4pcs.)
③ Solder 5 lead wires on 0-T600.･･･ Brown, Black (T800), Red, Gray (T700), Black (A433)
[NOTE] Cut the flexible board as shown in the figure below when 0-T100 is replaced with
brand new parts.
③
③
③
②
①
②
④
①
②
⑤
③
⑦
⑥
⑦
⑨
⑨
⑧
0-T600
To Next Page
