76700 -20/94-

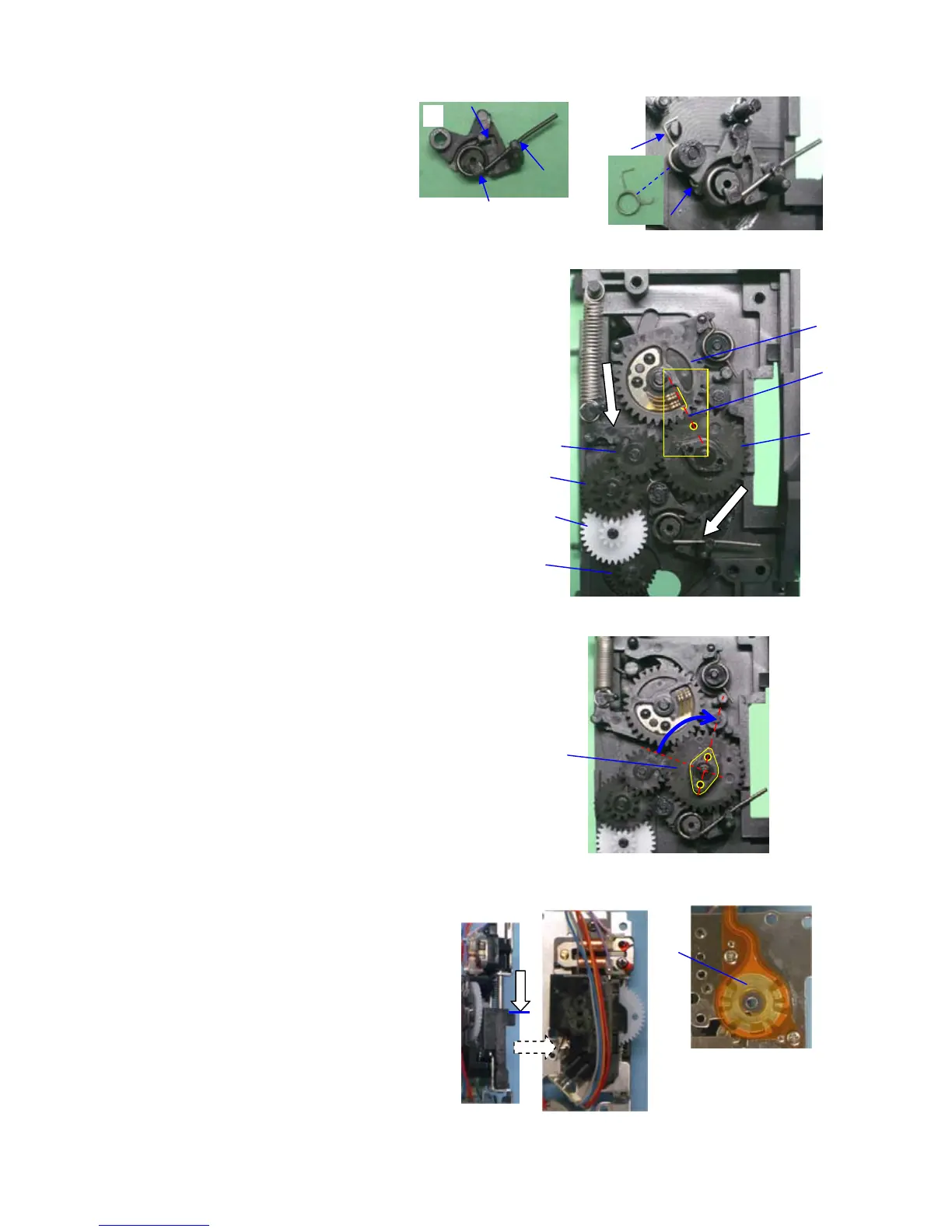

⑦ Install B17 to B9.
⑧ Inatall B18 to B9.
⑨ 0-B8
----Apply G126 to surface of cam.
⑩ B7
----Apply G126 to surface of cam on both side.
⑪ Align the both hole of 0-B8 and B7.
⑫ B3
⑬ B4
⑭ B5
⑮ B6
⑯ Turn B7 cloolwise until the arrow indicated in figure right.
⑰ Clean code plate by solvent and apply G151.
⑱ Latch the lever of G100 while pushing
down the sliding plate.
⑯
⑨
⑩
⑪
⑫
⑬
⑭
⑮
⑦
⑧
⑰
⑱
