76700 -35/94-

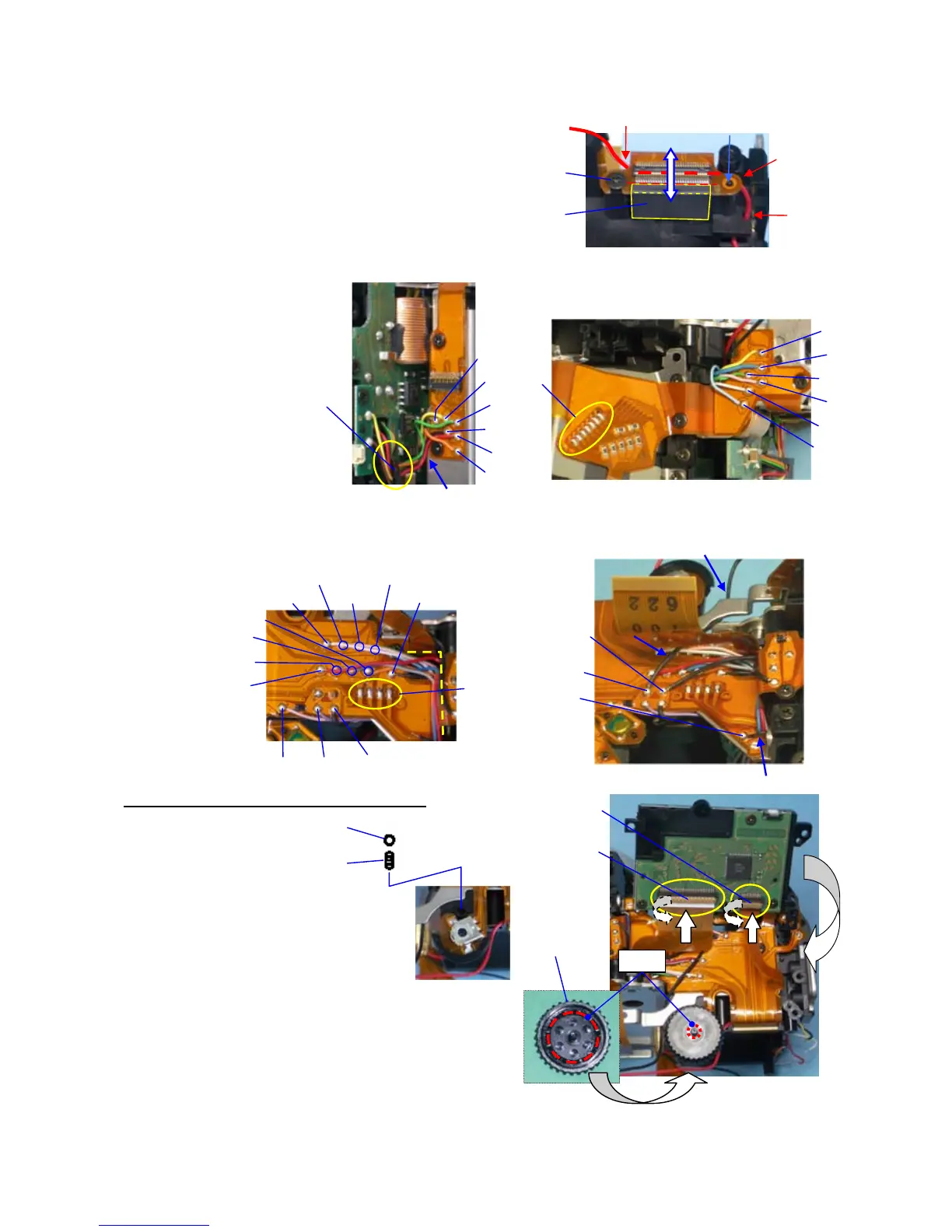

(4) Arrange lead wire (A14) as shown figure.
(Through the grove of battery chamber)
(5) Install flex by TY-CNL-E1.7x3.5
(6) Fix flex by A40 (tape)
*Flex shoud move up and down a little.
(7)Arrange lead wires. (Flash PC boad side)
(8) Solder 6 lead wires (T940, S300)
(9) Solder 7 lamds (O170)
(10) Solder 6 lead wires (Q200)
(11) Solder 4 lands (T71)
(12) Solder 13 lead wires (E000, G100) – Arrange as shown figur
(13) Solder 3 black lead wires
9. O201 and other (External LCD block)
(1) A17
(2) BO2.0 --- Apply G134
(3) A335 --- Apply G134
*Connect LCD block
(4) Connect O100 flex to connector (flip lock)
(5)Connect T200flex to connector (flip lock)
(9)
(10)
Yellow
Blue
Green
Pink
White
Skyblue
(2)
(1)
(8)
Brown
Yellow
Green
Black
Red
Orange
(7)
(6)
(5)
(4)
(13)
Black35mm
Black65mm
Black
(A105)
⑪
(12) Pink Skyblue (E100)
White Green Black
Orange
Blue
Gray
Red
Pink, Purple, Black
(5)
(4)
(3)
G134

Pentax K100D Specifications

General

Megapixel	6.1 MP
Sensor type	CCD
Interface	USB 2.0
Color depth	8 bit
Digital SLR	Yes
Video capability	No
Camera shutter speed	1/4000 - 30 s
Focus	TTL
Auto focusing (AF) modes	centre weighted auto focus, continuous auto focus, selective auto focus
Light metering	Centre-weighted, Spot
ISO sensitivity	200, 400, 800, 1600, 3200, Auto
Light exposure modes	aperture priority AE, auto, shutter priority AE
Compatible memory cards	sd
Display diagonal	2.5 \
Display resolution (numeric)	210000 pixels
Magnification	0.85X x
I/O ports	AV - NTSC/PAL
USB version	2.0
Product color	Black
Battery type	AA
Number of batteries supported	4
Flash modes	auto, Flash off, Red-eye reduction
Scene modes	beach, Candlelight, Children, Close-up (macro), Documents, Museum, Night, Night portrait, Portrait, Sunset, Landscape (scenery)
Photo effects	black&white, Sepia
White balance	Cloudy, daylight, flash, Fluorescent, manual, Shade, Tungsten
Camera shutter type	Electronic

Weight and Dimensions

Depth	70 mm
Width	129.5 mm
Height	92.5 mm
Weight	570 g
