3. M1
＊B65, M4, and M18 should be attached with M1
① M1
② TY-CNL-D1.7ｘ4.5（x2）

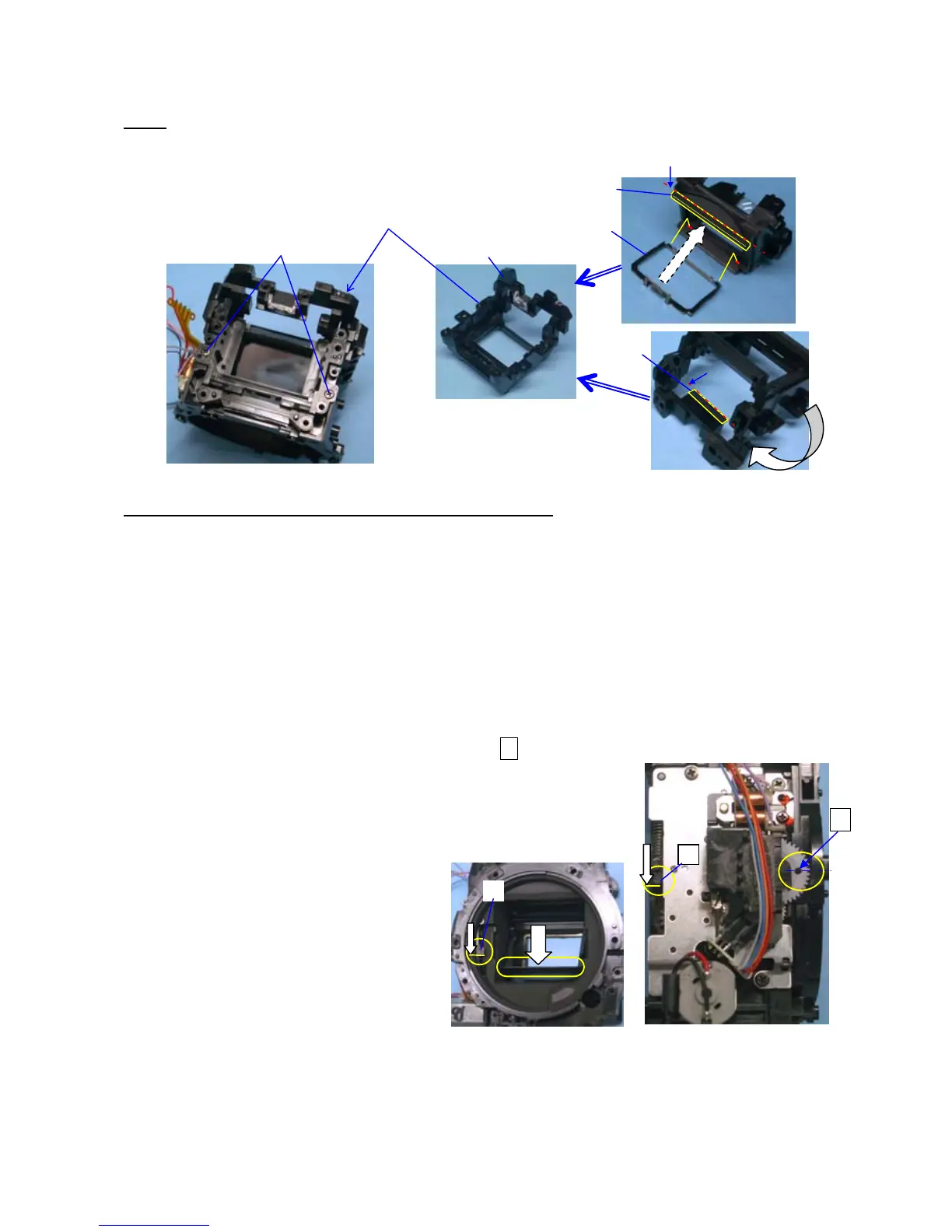

4. 【CONFIRMATION】 Checking the mirror function
[Required equipment] Power supply
① Confirm the following points while applying DC2V to the mirror motor. (Red wire: Positive)
-1) The mirror seat must be moved smoothly without noise.
-2) The shutter charge lever(b) and sliding plate(a) must be moved smoothly and surely go up and down.
②Set the mirror seat to the down position while applying DC1.5V.
(Fine adjustment is possible when turn white gear at behind of G100)
Mirror down: mirror, sliding lever, shutter charge lever at down position.
White gear must be positioned as shown in figure.----（※）
③ Both mirror seats 1
st
and 2
nd
must be returned smoothly to the original
position when both mirror seats are prssed inward about 3mm by finger
pressure.
④ Set the mirror seat to the down position.
a
※
b
①
②
B65
M4
M18
M1
