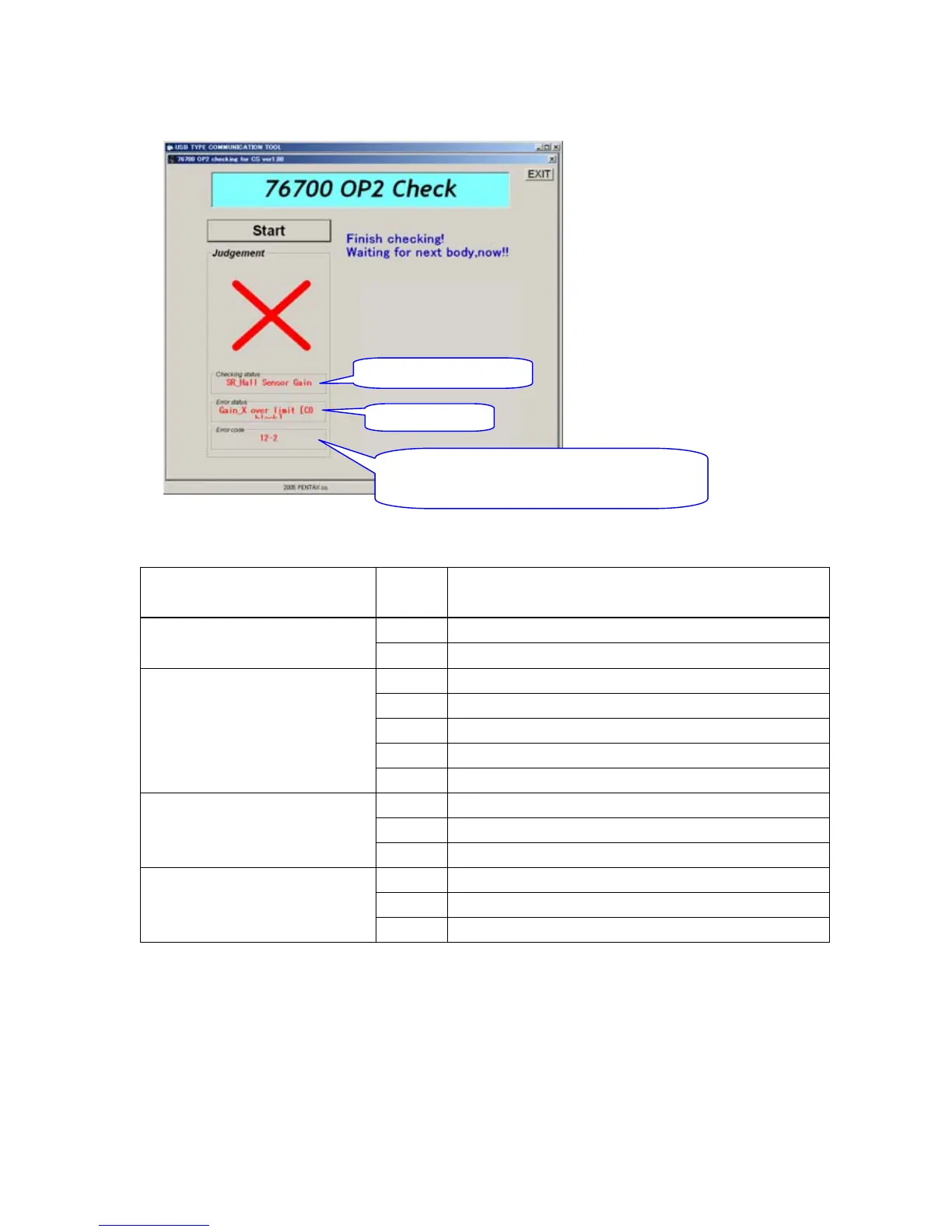

(8) If the adjustment result was NG, the following screen display
■ SR unit adjustment, List of error code
Items
Error
code
Contens
11 – 0 USB communication error
Coil direction check
11 – 1 Coil reverse
12 – 0 USB communication error
12 – 1 Gain over limit [T100]
12 – 2 Gain_X over limit [C0 block]
12 – 3 Gain_YL over limit [C0 block]
Hole gain adjustment
12 – 4 Gain_YR over limit [C0 block]：
13 – 0 USB communication error
13 – 1 Range is too narrow
Movement range adjustment
13 – 2 Center is over limit
14 – 0 Communication Error
14 – 1 Offset value is over limit
Gyro offset adjustment
14 – 2 Gyro is unstable
Error code: First 2 number is for cheking item number
And last number is for Error classification
