76700 -55/94-

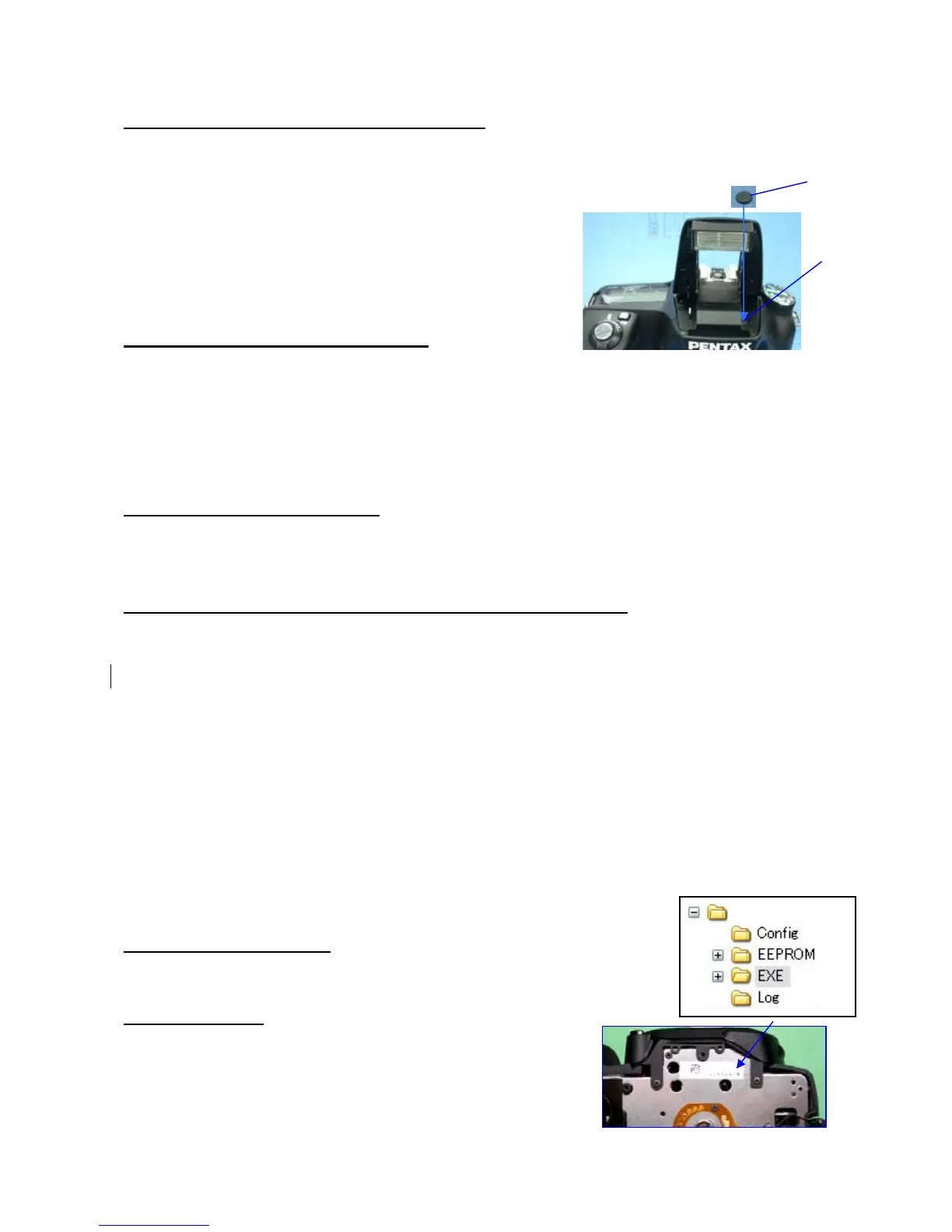

20-9. [Adjustment] vertical position of SI-LED
* If position of SI-LED is moved vertical direction by condition of installing top cover,
Adjust with next procedure.
(1) Pop-up the flash and remove M5.
(2) Turn internal sdjusting screw
(3) Confirm the LED position and apply screw lock to foot of screw.
(4) Fix M59.
[Caustion] When replace top cover, do not forget to fix M59.
20-10. Check aperture Control and CCD
(1) Attaching the lens to the camera. Set the focus mode and Capture mode to MF and B.
(2) The aperture of lens must change similarly when the aperture value (Av) is set in opening, the
middle, and the minimum with the Av dial.
(3) Detach the lens from camera, and depress the release button, and make the camera long exposure
condition. Confirm there is neither dust nor scratch on the CCD.
20-11．Check SD card cover SW
(1) The camera will turn OFF when the SD card cover is opened during the camera is turned ON.
(2) When close the SD card cover and press release buttom half way, the power must be turned ON
21. [ADJ] Adjustment with Programmed Software (SLR operation)
*The adjustment method is same as *istDL2（76670）
[CAUTION] When the T100 is replaced, should be follow this adjustment
[Required equipments]
Programmed software for 76700 (for SLR operation), Regulated DC power supply (8V・3A),
Battery adaptor, AC adaptor (D-AC10), PC (Windows2000/XP with USB port equipped)
Temporary bottom cover (Hand made/exclusive item), USB cable (I-USB17), HD driver (HD-M1.5)
AF positioning jig (Square) for 27830, AF positioning jig (Cross) for 27250,
AF chart for 2m x2 (Exclusive item), AF master lens for 2m, FA Macro 50mmF2.8,
Light source (Shutter tester), Diaphragm set ring F8 (KA-0-1A), FA (F) 35-80mm F4-5.6,
I/F buffer cable for 27250 for the other items, refer to the table of “Jigs, Tools and Testers”.
* If you do not have the Reflection type of shutter tester, the shutter speed will check after the digital
adjustment is completed.
21-1．Setting the computer
* Setting the computer (Page 2) and Set up theVB run time should be completed
21-2．Preparation
* When T100 or CCD is replaced, confirm the CCD ID No.
① Attach battery cover for battery adaptor and bottom cover
② Set focus mode to [MF]
ADJ.
(SL)
M59
76700_SLR
