Pentax K100D - Viewfinder Focus and Parallax Adjustment

76700 -27/94-

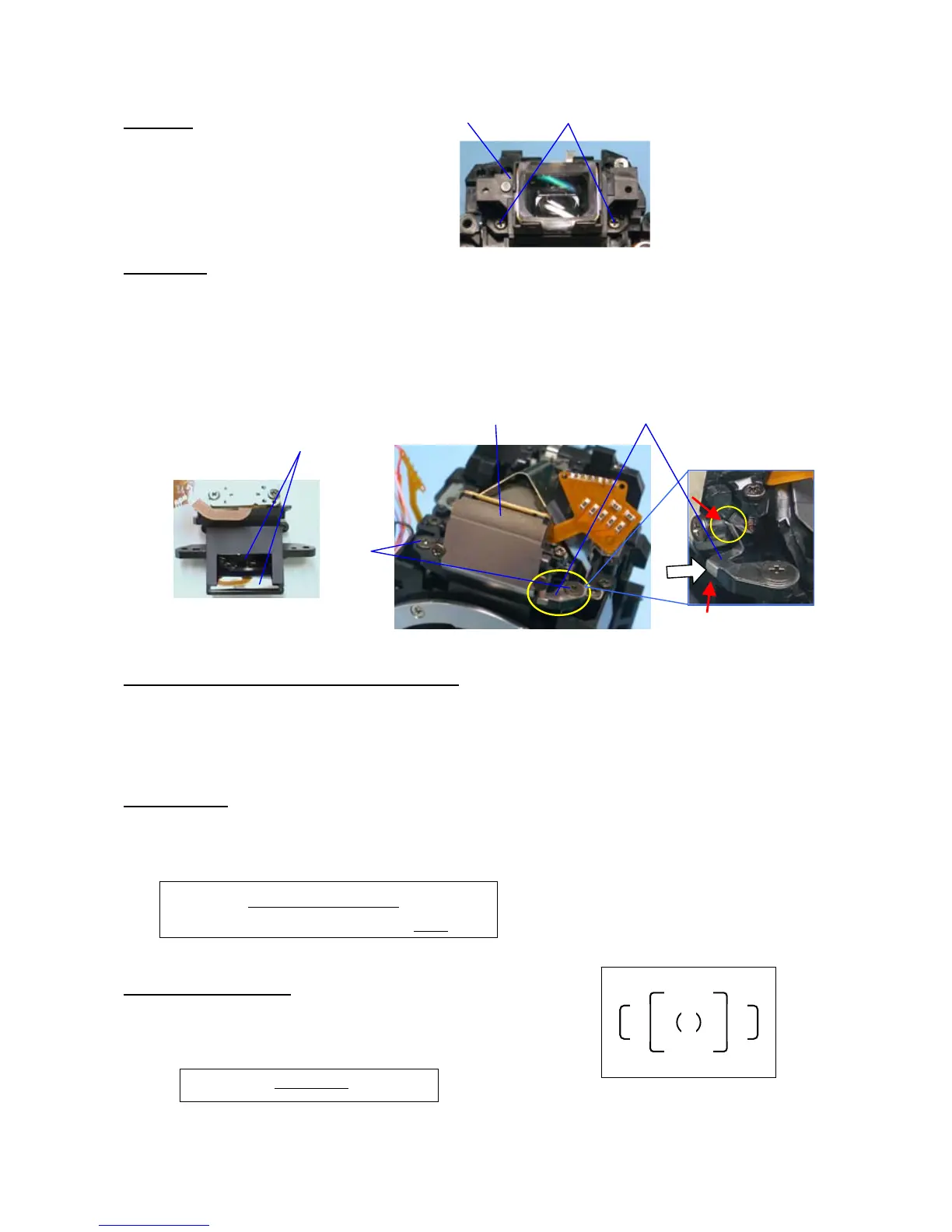

10. M301
① Eyepiece (M301,L7 and other)
② TY-CNL-D1.7x4.0（x2）
11.SI block
① Confirm that there is neither dust nor scratch on inside prism and mirror.
② SI block（0-M51, 0-M52, M53, L11, L12, 0-O170 and other）
③ Attach M55 (SI spring) as shown figure
④ TY-CNL-F1.7x4.5（x2）
--- Install SI block and M55(spring) to the pentamirror side as shown figure
12. 【ADJ】 Viewfinder focus and parallax
【Required equipment】 50mm lens, Collimator, Focus master lens
【Preparation】
1. Adjust the diopter by the diopter adjustment lever.
2. Set the AF mode switch to to MF position.(upper position)
12-1. Parallax
【Caution】 Confirm that the Pentaprism must be installed securely.+
①【Check】Confirm there is neither gap nor an inclination at an upper and lower, Right and left position.
12-2. Viewfinder focus
①【Check】Check a viewfinder focus.
＊ One scale for focus master lens is 0.03mm.
Standard： 0±0.07 mm
①
②
①
③
②
④
Standard: Right/Left Less than 1°
U
p
side down Less than 1°50′
