Pentax K100D - A161 (Side Cover)

76700 -51/94-

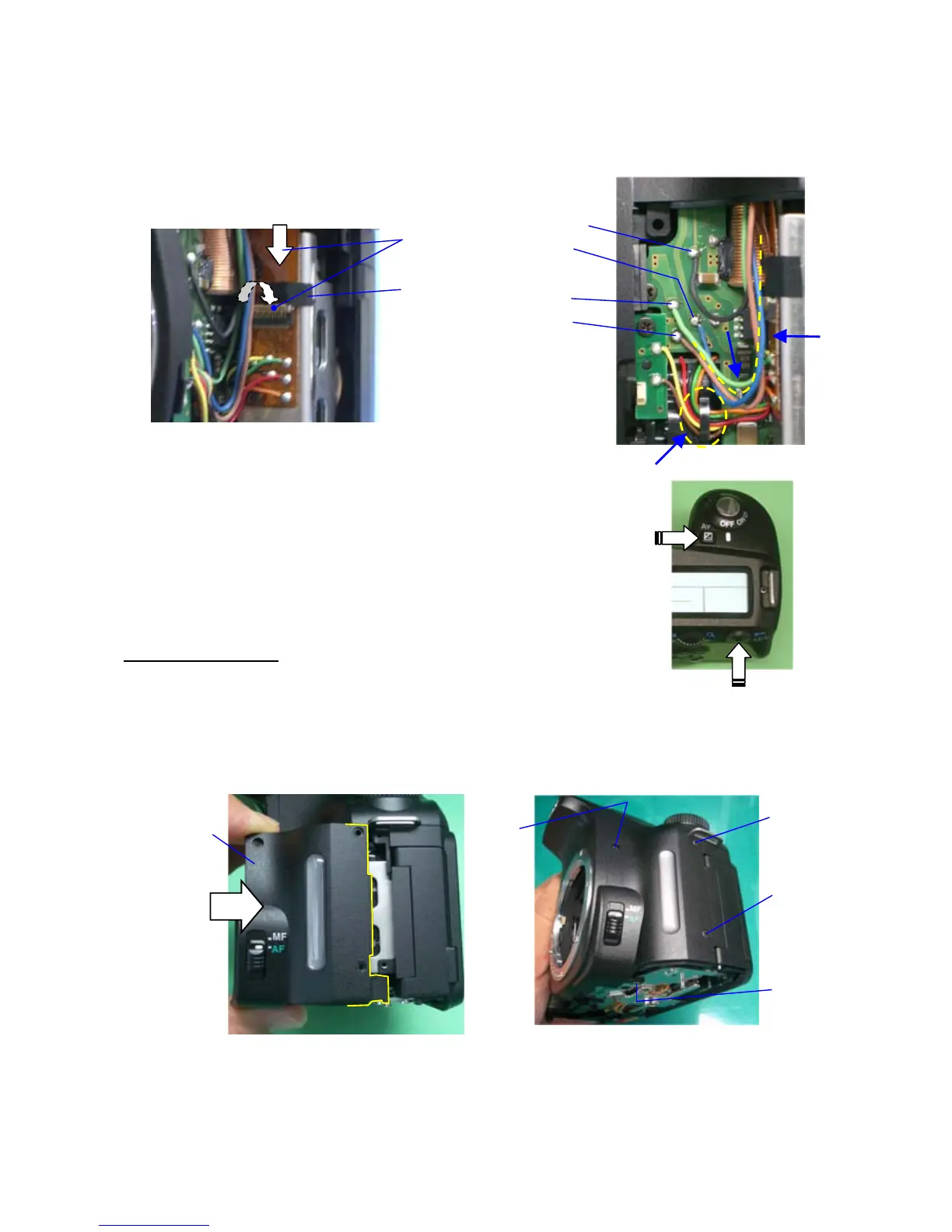

(11) Connect T51flex. (flip lock) part of bent into top cover.
(12) Fix the flex by A39 (BT 6x10).
(13)Solder 4 lead wires (Blue, Green, Black, Brown- Q100)
(14)Arrange lead wires as shown figure.
(15) After install, check the function of AE-L button and Av button.
19. A161 (side cover)
(1)Set AF_SW to AF both of body and A161. Install from front as shown figure.
(2) A74 (TY screw, 5.5mm)
(3) A73 (TY screw, 4.5mm)
(4) A67 (screw, 5mm)
(5)CNL-D1.7x2.5
(12)
A39 (BT6x10)
(11)
(5)
(3)
(2)
(4)
(1)
(13)
Black
Blue
Green
Brown
