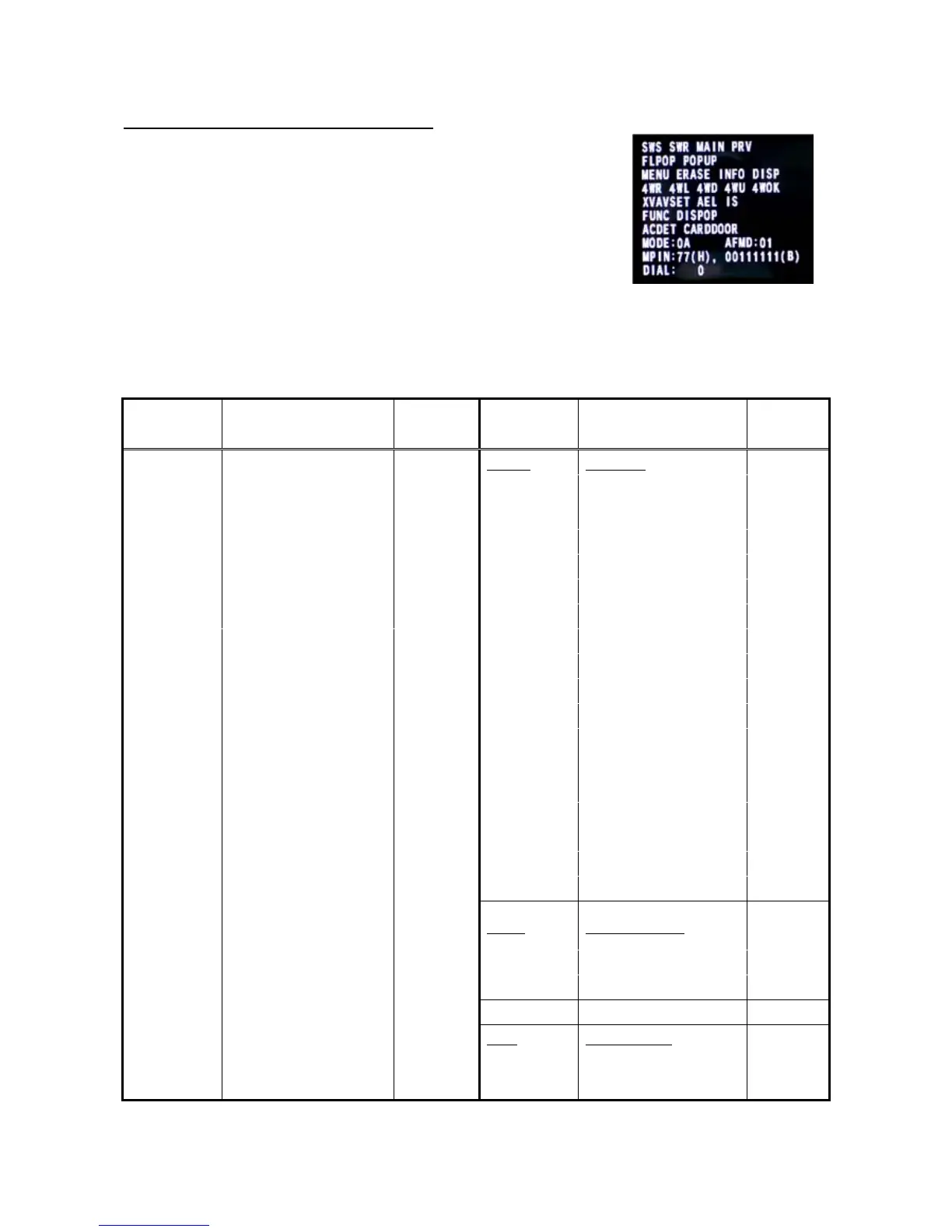

20-5. [Confirm] Switch and dial Function
(1) Turn the main SW to OFF and insert the SD card for Testing
into the camera.
(2)Turn the main SW to ON while opening the SD card cover,
and the screen for SW testing will be displayed on the LCD monitor.
(3) Operate each SW and the dial according to the LCD monitor.
The color of the display changes according to the operation
when normally working. (See the table below)
(4) Press release botton and confirm that all indication of LCD monitor and viewfinder LCD will be
displayed.
(5) Press Av[+/-]botton and confirm that all SI-LEDwill be displayed.
(6) When confirmation is completed, turn the main SW to OFF and remove the SD card from the camera.
Symbol Description
Color
display
Symbol Description
Color
display
SWS Measure SW Change MODE Mode dial Code
SWR Release SW
〃
MAIN Main SW
Not in use
AUTO PICT
SCN
Auto picture（AP）
Scene mode
0A
02
PRV Preview SW Change P Program mode 04
FLPOP Pop-up SW
〃
TV TV mode 0C
POPUP Flash button
〃
AV AV mode 08
MENU Menu button
〃
M Manual mode 00
ERASE Delete button
〃
B Bulb mode 01
INFO INFO button
〃
Flash offAP Flash off mode 05
DISP Playback button
〃
Night PICT Night-Scene mode 09
4WR 4 way button light
〃
PICT Action mode 0B
4WL 4 way button left
〃
Macro
PICT
Macro mode 03
4WD 4 way button bottom
〃
Landscape
PICT
Landscape mode 07
4WU 4 way button Top
〃
Portrait PICT Portrait mode 0F
4WOK 4 way button OK button
〃
XVAVSET
Exposure compensation
button
〃 AFMD Focus mode SW Code
AEL AE-L button
〃 Autofocus 00
IS Shake reduction SW
〃 Manual focus 01
FUNC Function button
〃 MPIN Mount pin －
DISPOP Hot-shoe SW (external)
〃 DIAL Electronic dial －←0→＋
ACDET AC Code IN Not in use
CARDDOOR SD card cover SW Change
