Pentax K100D - 0-A3 (Bottom Plate Assy); T200 (Upper Flex Block)

76700 -34/94-

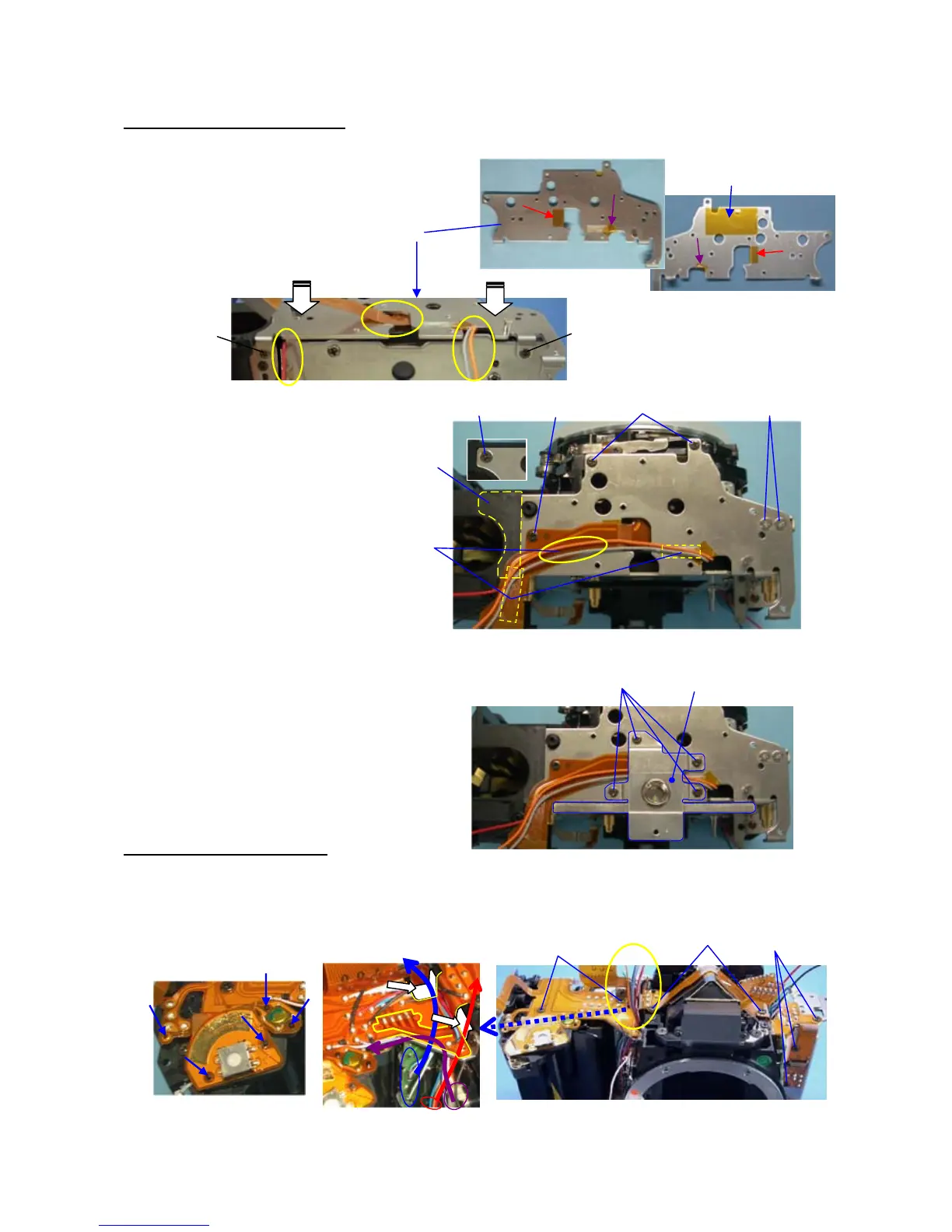

7. 0-A3（Bottom plate assy）
(1) When installing 0-A3, arrange the flex and lead wires as shown figure.
(2) CNL-D1.7x2.5 (x2)
(3) TY-CNL-D1.7x4.0 (x2)
(4) CNL-E1.7x2.2 (Ni, x2)
(5) TY-CSM1.7x4.0
(6) Attach A53 on plate
(7) CNL-D1.7x1.8
(8) Attach two lead wires by DT as shown
figure.
(9) 0-A51 *Avoid pinching lead wire.
(10) CNL-D1.7x2.5 (x4)
8.T200 (Upper flex block）
*Put T200 on body while arrange the lead wires.
(1) Attach T200 main SW land/ Av-SW flex by DT.
(2)TY-CNL-D1.4x2.5 (x2)
(3) CNL-D1.7x1.8 (x5)
(8)
(7)
(3)
(6)
(5)
(4)
(10)
(9)
(1)
(1)
(2)
(2)
(3)
(2)
(3)
