Pentax K100D - A6 (Left Shoulder Plate); T901 (Lower Flex Board)

76700 -33/94-

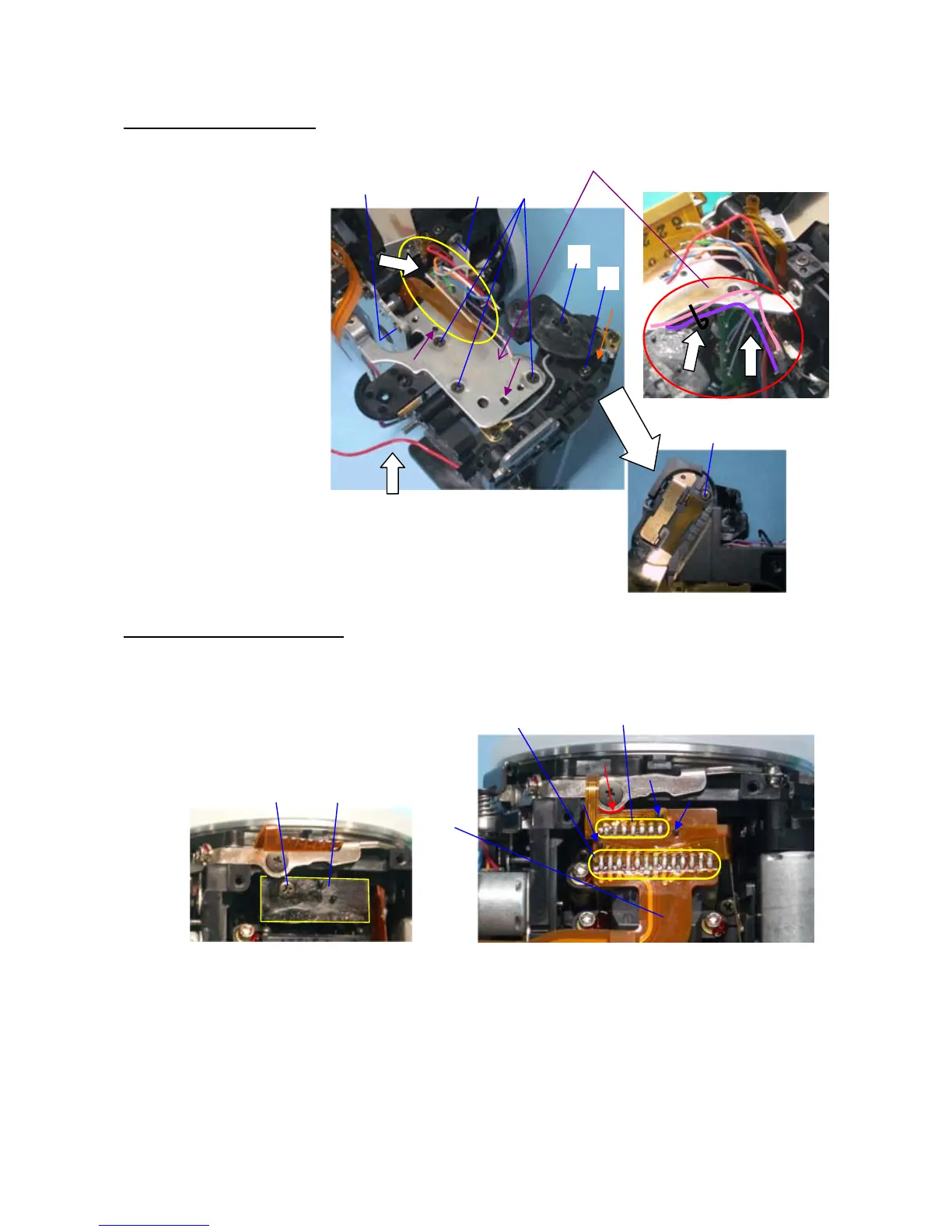

5. A6(Left shoulder plate)
(1) A6 --- Arrange the lead wires and flex as shown figure.
(2) CNL-D1.7x2.5
(3) TY-CSM1.7x4.0 (x3)
(4) TY-CNL-D1.7x4.0
(5) A19
(6) TY- CNL-D1.7x3.0
(7) TY-CNL-D1.7x3.5
(In battery chamber)
6. T901（Lower flex board）
(1) A141
(2) TY-CNL-D1.7x3.5
(3) T901
(4) Solder 7 lands (T301)
(5) Solder 13 lands (M100)
(2)
(1)
(5)
(4)
(3)
(1)
(4)
(3)
(2)
(5)
(6)
(7)
