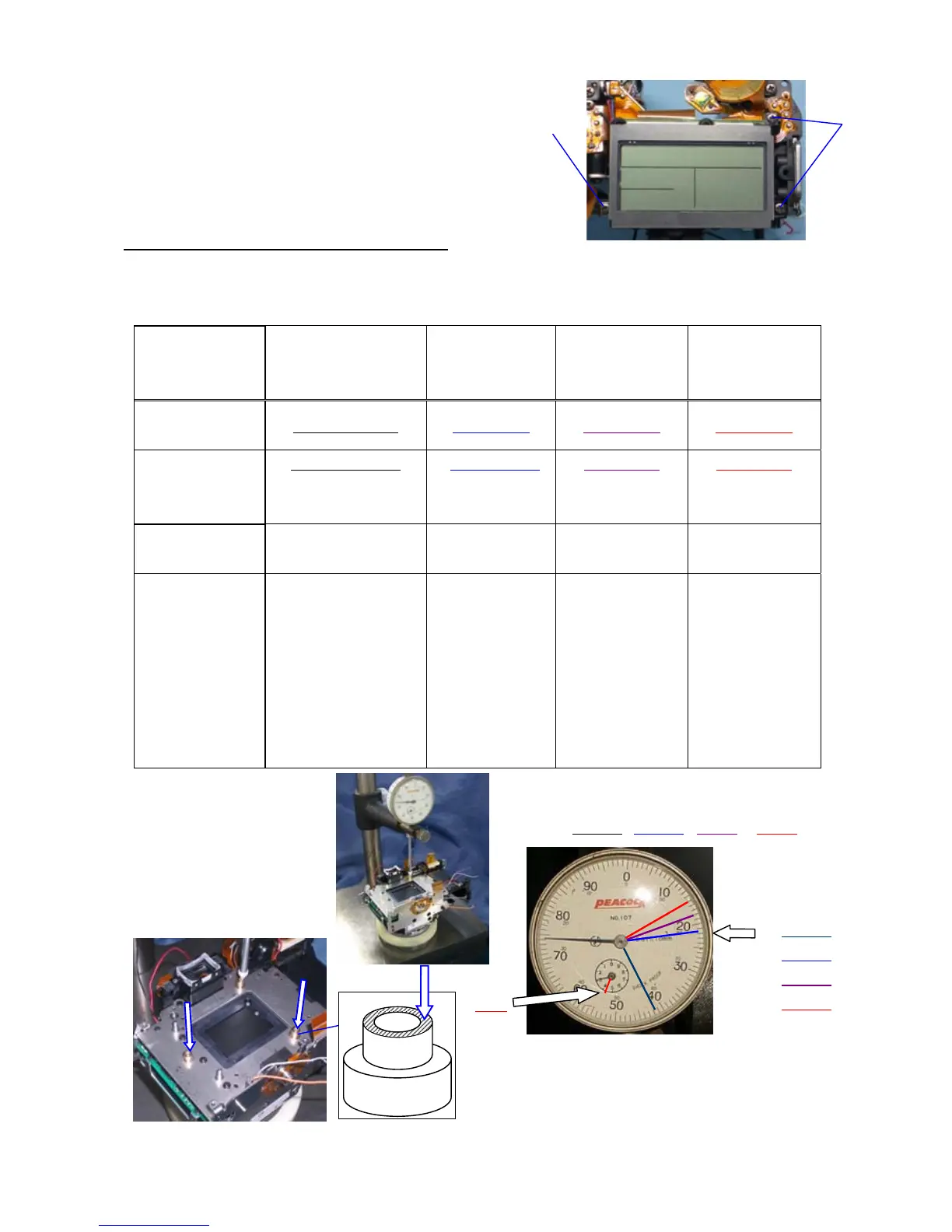

76700 -36/94-
*Install LCD block
(6) TY-CNL-D1.7x3.5 (x2)
(7) CNL-D1.7x2.5
(8) [Confirm] You must feel click when turning electronic dial.
10. [CONF] CCD Base Plate Support Pillar
[Required equipment] Block gauge for 35mm, Dial gauge comparator, etc. (same as MZ series)
(1) Measure height of the CCD base support pillar (3 places) from the mount surface as shown in the figure.
(There are four kind of height)
Distinction
Last two digit of
lot number
[-00]
From [-01]
to [-03]
[-04] and later [-13] and later
Tolerance:
(Only fot 76700)
49.876±0.02 mm
49.676±0.02 49.640±0.02 49.610±0.02
Using Block
gauge for 35mm
(45.46mm)
+4.416 ±0.02 mm
(+4.396~4.436 mm)
+4.216 ±0.02
(+4.196~4.236)
+4.18 ±0.02
(+4.16~4.20)
+4.15 ±0.02
(+4.13~4.17)
Height of Pillar Previous parts (±0) New parts
(-0.2)
New Parts
(-0.236)
New parts
(-0.266)
Shape of plate for
0-C000
Previous oarts :
counterbore (-0.2)
New parts:
No counterbore
(±0)
New parts:
No counterbore
(±0)
Borad thickness
Tolerance :
t=1.6 (+0.01
~-0.03)
New parts:
No counterbore
(±0)
Modified Borad
thickness
Tolerance :
t=1.6 (+0.03
~-0.01)
(6)
(7)
LCD block
+4.
+0.416
or +0.216
or +0.18
or +0.15
+4.416 , +4.216 , +4.18 or +4.15
