Pentax K100D User Manual

76700 -40/94-

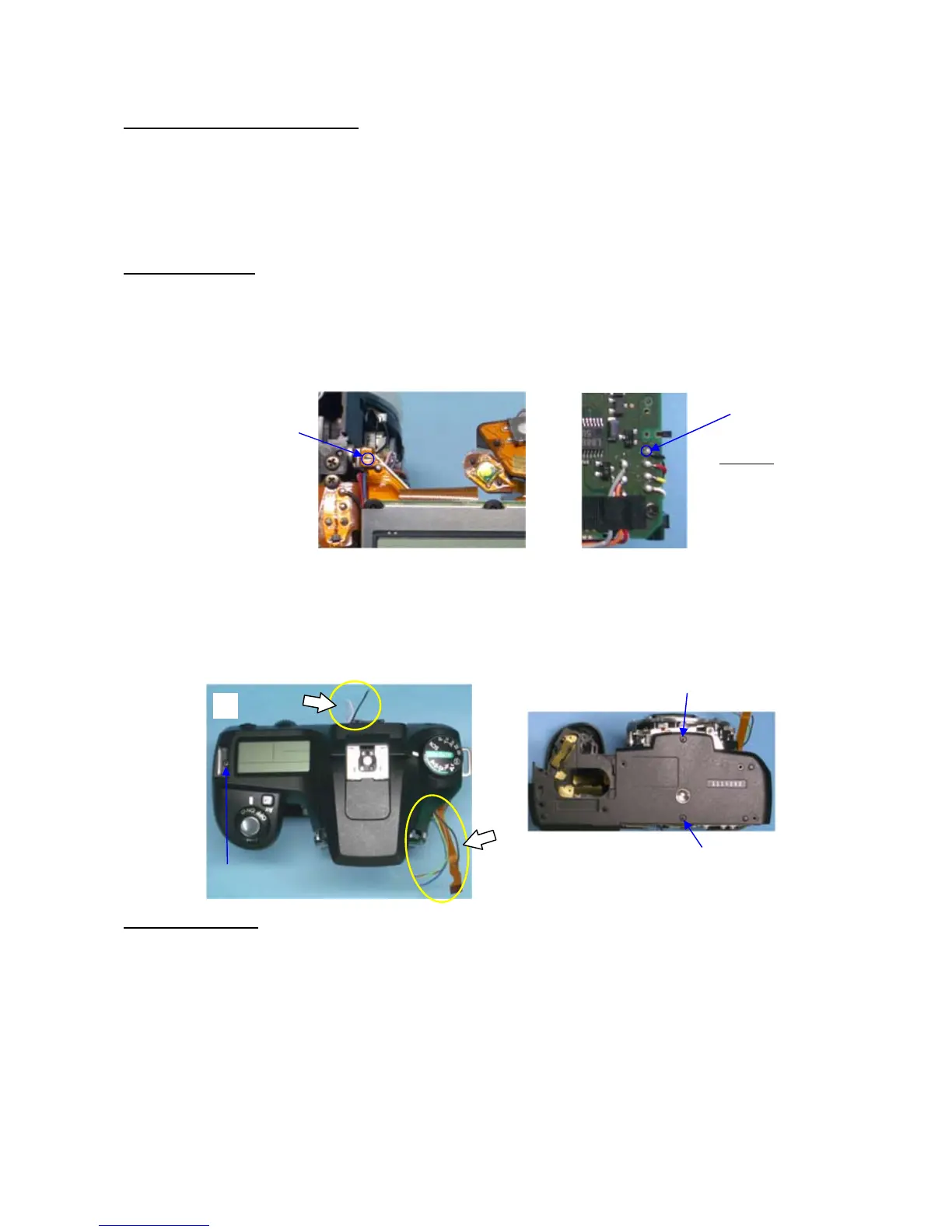

13. [Confirm] Function check 1
[Required equipment]
SD card for adjustment 4pcs (FW for service, Data initialize, Test mode ON, Test mode OFF)
Regulated DC power supply (8V/3A), Circuit tester, DC code, AC adaptor, TV color monitor, Video cable,
Top cover (0-A301), Bottom cover (A401), Lens for confirmation (FA 50mm F1.4),
13-1. Preparation
* Prepare the following procedure for function check
(1) Connect video cable to the TV monitor
(2) Solder the Main SW land as shown figure.
(3) Unsolder black lead wire (T10) on T100.
(4) Arrenge lead wires (3+4) and flex from Top cover to outside of body as shown figure and temporary
install Top cover by one screw.
[Caution] Do not give too much foce to the top cover. Because Top cover hold by only one screw.
(5) Temporary install bottom coverr by two screws.
13-2. power check
(1) Connect DC cord to the Regulated DC power supply, set DC 6.5V (3A)
(2) Connect DC cord to the camera
With this condition, make sure there is a no short circuit or no battery leak
[Caution] If there is overcurrent, disconnect the power immediately.
With this condition battery current is:
Momentary maximum battery current is approximately 120mA.
Stable battery current battery current is approximately 4.5mA.
(3) Disconnect DC cord from camera.
Main SW
Land
(2)
(3)
Black (T10)
Unsolder
A73
(TY 4.5mm)
(4)
(5)
A67 (5mm)
A75 (1.8m)

Pentax K100D Specifications

General

Megapixel	6.1 MP
Sensor type	CCD
Interface	USB 2.0
Color depth	8 bit
Digital SLR	Yes
Video capability	No
Camera shutter speed	1/4000 - 30 s
Focus	TTL
Auto focusing (AF) modes	centre weighted auto focus, continuous auto focus, selective auto focus
Light metering	Centre-weighted, Spot
ISO sensitivity	200, 400, 800, 1600, 3200, Auto
Light exposure modes	aperture priority AE, auto, shutter priority AE
Compatible memory cards	sd
Display diagonal	2.5 \
Display resolution (numeric)	210000 pixels
Magnification	0.85X x
I/O ports	AV - NTSC/PAL
USB version	2.0
Product color	Black
Battery type	AA
Number of batteries supported	4
Flash modes	auto, Flash off, Red-eye reduction
Scene modes	beach, Candlelight, Children, Close-up (macro), Documents, Museum, Night, Night portrait, Portrait, Sunset, Landscape (scenery)
Photo effects	black&white, Sepia
White balance	Cloudy, daylight, flash, Fluorescent, manual, Shade, Tungsten
Camera shutter type	Electronic

Weight and Dimensions

Depth	70 mm
Width	129.5 mm
Height	92.5 mm
Weight	570 g
