76700 -26/94-

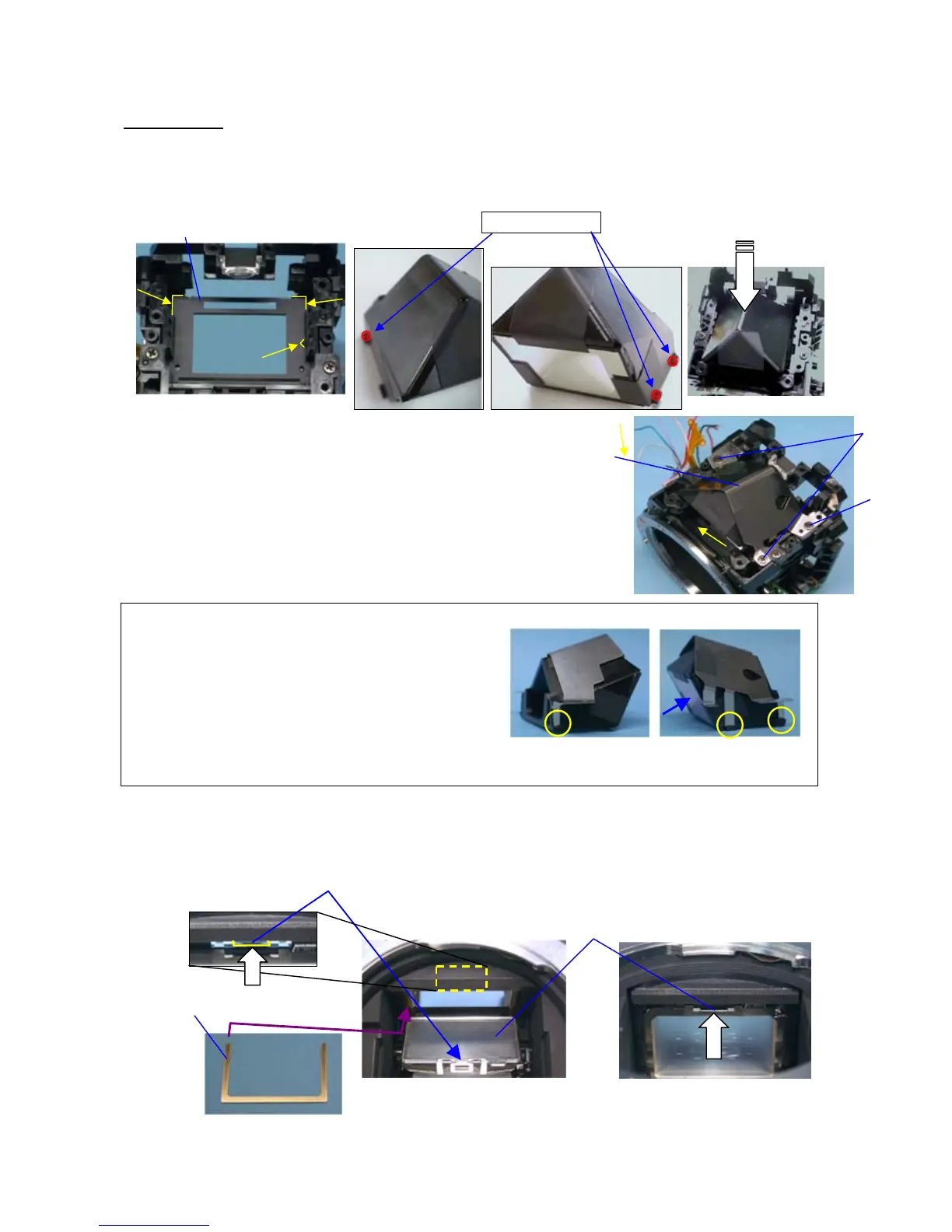

9. L2, 0-L101
【Caution】 Confirm there is neither dust nor scratch on L2 and 0-L101.
① M3
② 0-L101---- Apply Super X (black) to three places
③ M9（M8・M12 x2）
④ TY-CNL-D1.7x3.0（x 2）
⑤ TY-CNL-D1.7x4.5
⑥ Drop the focusing screen frame(0-M4) by releasing the hook portion.
⑦ M22---- In the case of temporary adjustment, Using with the M22-00G(0.45).
⑧ Put the focusing screen(L2) on the frame(M4) and then push it back until it locks in place.
③
⑤
④
Super-X(Black)
②
⑥
①
【Note of Disassembly】
1. Three screws which hold M9(Penta cover)
are removed.
2. The bond between M9, and three leg tips and
penta sheets is removed, and is removed
together with penta mirror.
【Caution】Confirm there is neither scratch on front of pentamirror.
To Next Page
