Pentax K100D - Method for Making Hand Made Jig

76700 -92/94-

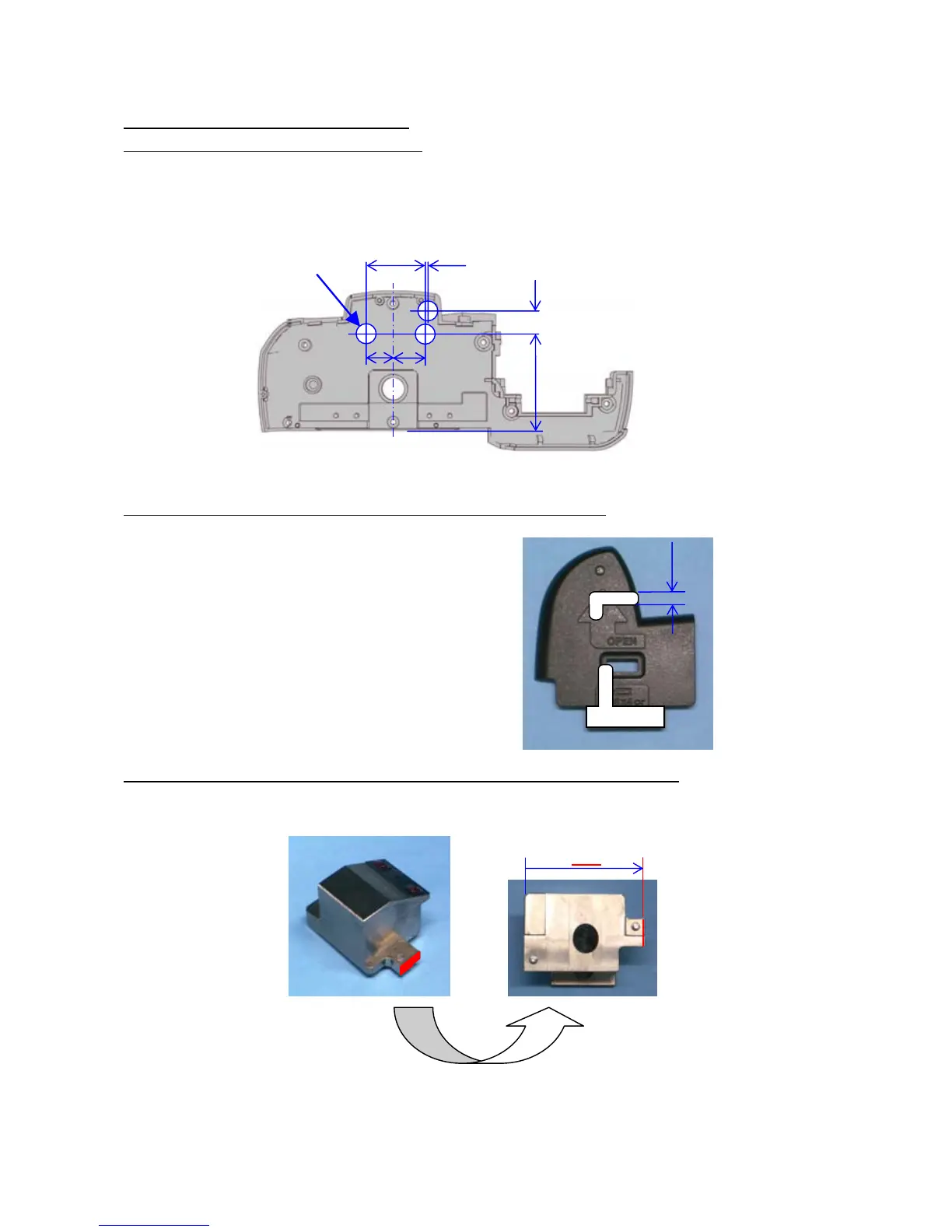

Method for making the hand made jig
1. Method for making temporally bottom cover
Preparation: A401 bottom cover
① Cut off part of bottom cover as shown in figure.
2. Method for making temporally battery cover (For battery adaptor)
Preparation: A412 battery cover
① Cut off part of battery cover as shown in figure.
3. Processing is added to mirror angle adjusting jig for 27830 (No.95901-J137)
① Cut off part of mirror angle adjusting jig for 27830 as shown in figure.
3mm
28.6
↓
28.3
9 11
20 1
7.5
32
φ7
