76700 -30/94-
16．0-M100

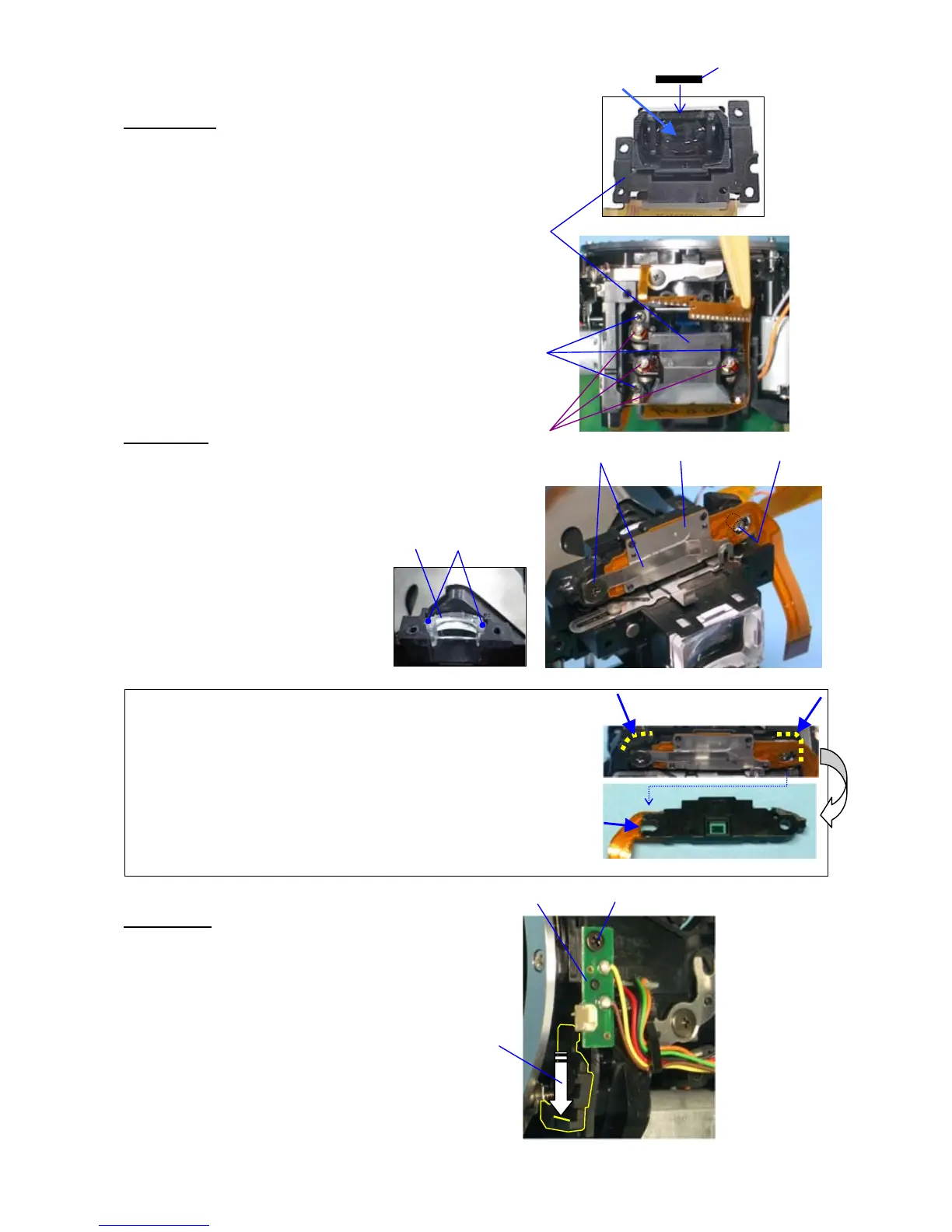

Preparation: Hexagonal screwdriver 1.5mm
① 0-M100 (when replacing 0-M100 put M125 at sensor side)
② TY-CNL-D1.7x4.0（x3）
[ADJ] Temporary adjustment of AF block --- Screw in 3
adjusting screws until they stops, then screw back two turns.
[NOTE] After CCD position adjustment with programmed
software is done, Apply screw-lock agent to between the
head of adjustment screws and washers.
17．0-J100
① M10 -- Set the diopter lever at end of left side and then install it
② 0-J100
③ M5・TY-CNL-G1.7x5.0（Temporary）
④ M7･･There should be no dust
⑤ Apply small amount of bond
18．0-T940
① Set AF mode lever to AF (Bottom side)
② 0-T940
③ TY-CNL-D1.7x3.0
* Caution
Set AF SW to AF(Bottom side) when remove 0-T940
②
①
③
M125
①
②
③
④
⑤
①
②
③
【Caution】--- Disassembly
1. Set the Diopter lever to the left side
2. Unscrew TY-CNL-G1.7x5.0・M5
3. Remove the bonds which is around the 0-J100
* Not to damage 0-J100
4. 0-J100, M10, M7
