5. A104
① 0-A121
② A133
③ TY-CNL-F1.4x4.0
④ 0-A126 ----and related parts.

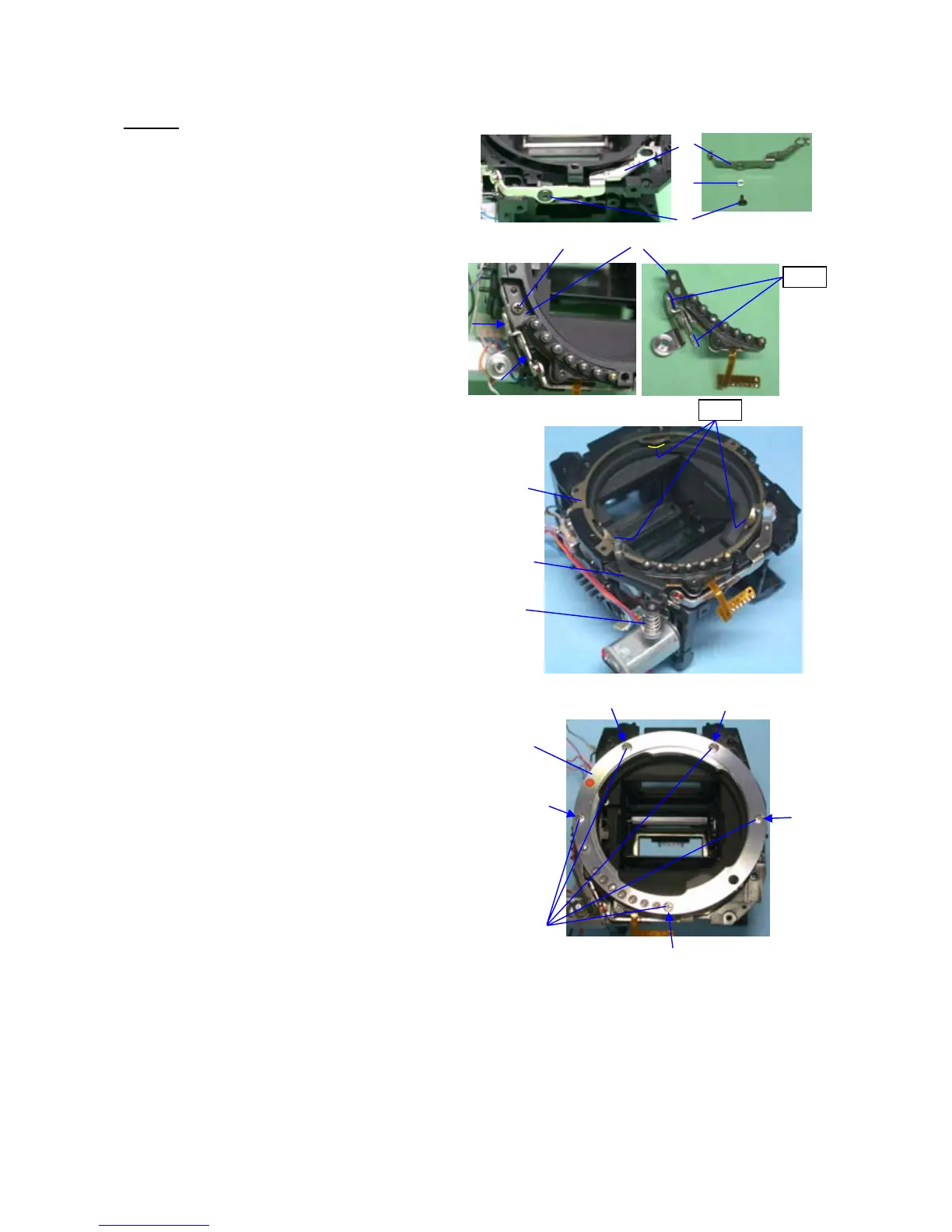

Apply G134 as shown figure
⑤ TY-CNL-D1.7x3.0
⑥ A105 ---- Apply G134 as shown figure
⑦ A110
⑧ 0-A108
⑨ A104
⑩ TY-CNS 2.0x4.5 (Ni-screw x5)
Screw is bolted in the shape of a diagonal line.
②
①
③
④
⑤
G134
⑦
⑧
⑥
G134
⑨
⑩
③
④
⑤
①
②
