Pentax K100D User Manual

76700 -19/94-

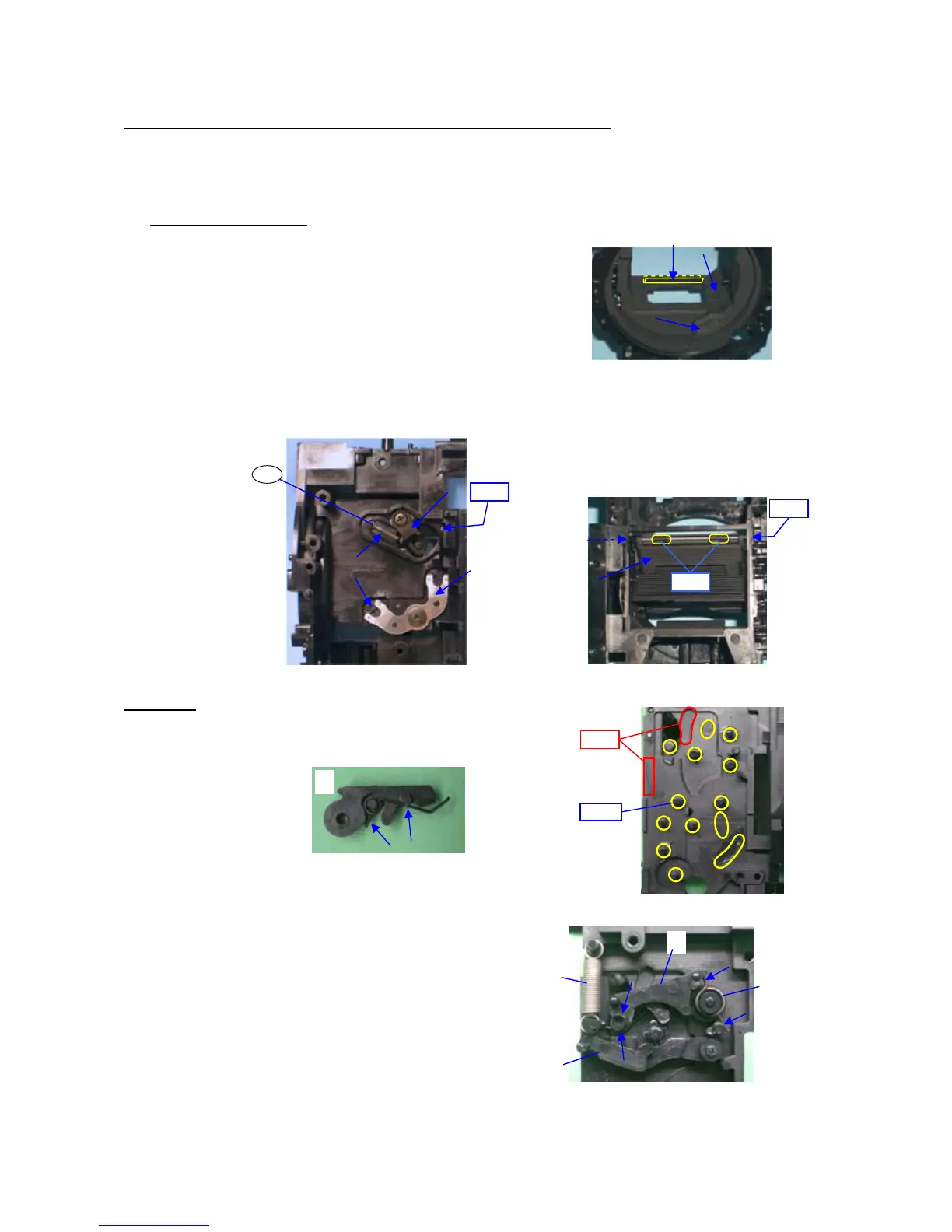

II. Assembly and Disassembly procedure of front housing block
＊Disassemble the front housing block in revese order of assembly procedures
【Assembly procedures】
1. Front Housing Block
A102, B41, M120, (DT(4x15)),
B58 x2, B59, TY-CNL-G 1.7x2.0,
0-B52 (mirror sheet),
B66 (shaft) ----A screw lock (SL) and L115 are applied.
B63, B57
B62 (spring) ---- Apply screw lock
2. 0-G100
① Apply G126 at 13 positions and apply L115 at one position.
② Install B20 to B11.
③ B11 ----Hook the spring to shaft of mirror sheet.
【Note】Caution for come off spring.
④ B19
⑤ B10
⑥ B21
③
④
⑤
⑥
②
①
G126
L115
Bond
L115
SL
L115

Pentax K100D Specifications

General

Megapixel	6.1 MP
Sensor type	CCD
Interface	USB 2.0
Color depth	8 bit
Digital SLR	Yes
Video capability	No
Camera shutter speed	1/4000 - 30 s
Focus	TTL
Auto focusing (AF) modes	centre weighted auto focus, continuous auto focus, selective auto focus
Light metering	Centre-weighted, Spot
ISO sensitivity	200, 400, 800, 1600, 3200, Auto
Light exposure modes	aperture priority AE, auto, shutter priority AE
Compatible memory cards	sd
Display diagonal	2.5 \
Display resolution (numeric)	210000 pixels
Magnification	0.85X x
I/O ports	AV - NTSC/PAL
USB version	2.0
Product color	Black
Battery type	AA
Number of batteries supported	4
Flash modes	auto, Flash off, Red-eye reduction
Scene modes	beach, Candlelight, Children, Close-up (macro), Documents, Museum, Night, Night portrait, Portrait, Sunset, Landscape (scenery)
Photo effects	black&white, Sepia
White balance	Cloudy, daylight, flash, Fluorescent, manual, Shade, Tungsten
Camera shutter type	Electronic

Weight and Dimensions

Depth	70 mm
Width	129.5 mm
Height	92.5 mm
Weight	570 g
