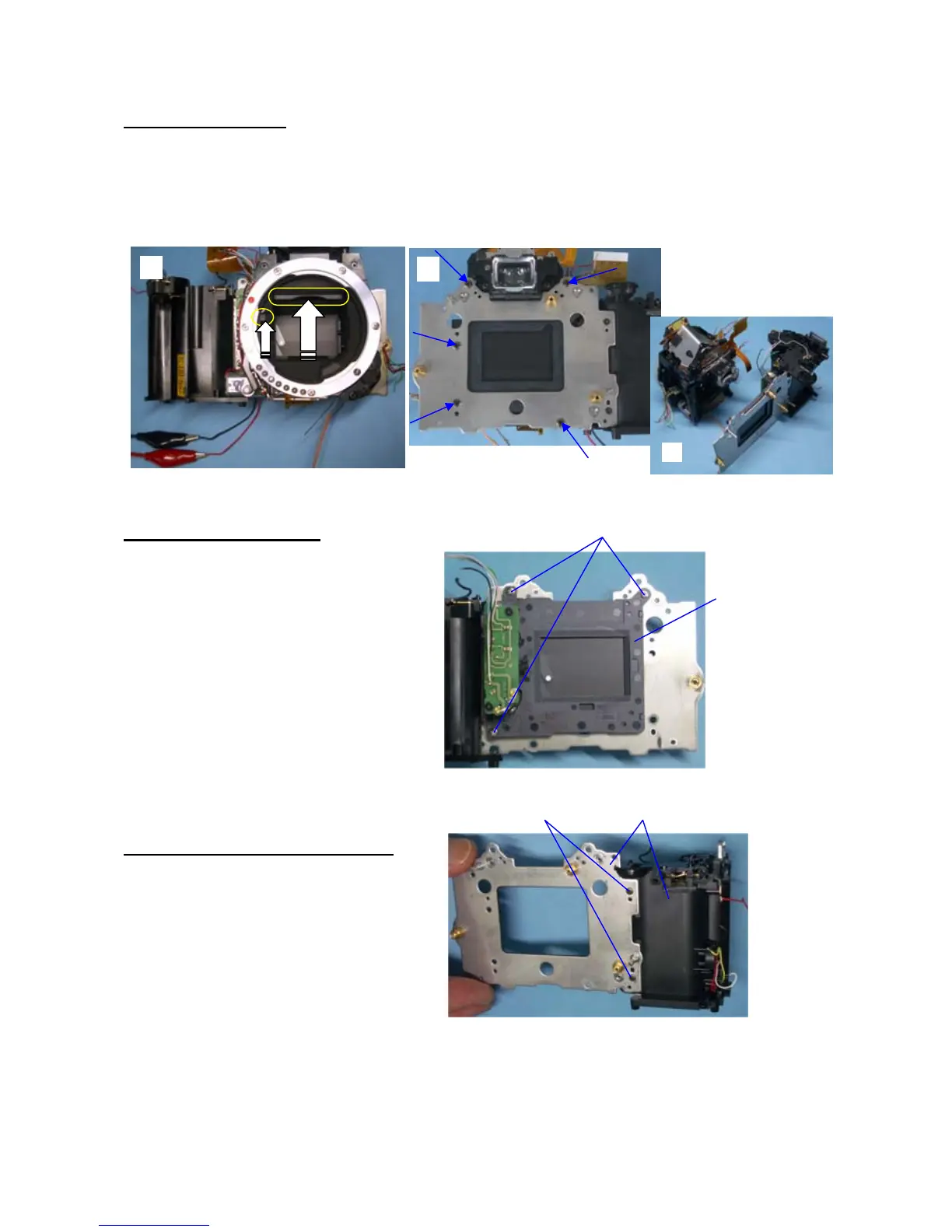

15. Front housing block
① Supply DC2V to 0-S250 (Mirror motor).
(Positive (+) on Red wire) Set the front housing block to mirror up position.
② Unscrew TY-CNM 2.0x5.0 (x5)
③ Remove main plate and battery chamber from front housing block.
16. 0-E000 (Shutter block)
① Unscrew A70 (shoulder screw x3)
② Remove 0-E000.
17. Main plate and battery chamber
① Unscrew TY-CNL-D 1.7x4.0 (x2)
② Separate Main plate and battery chamber.
①
②
