Pentax K100D - Page 18

76700 -17/94-

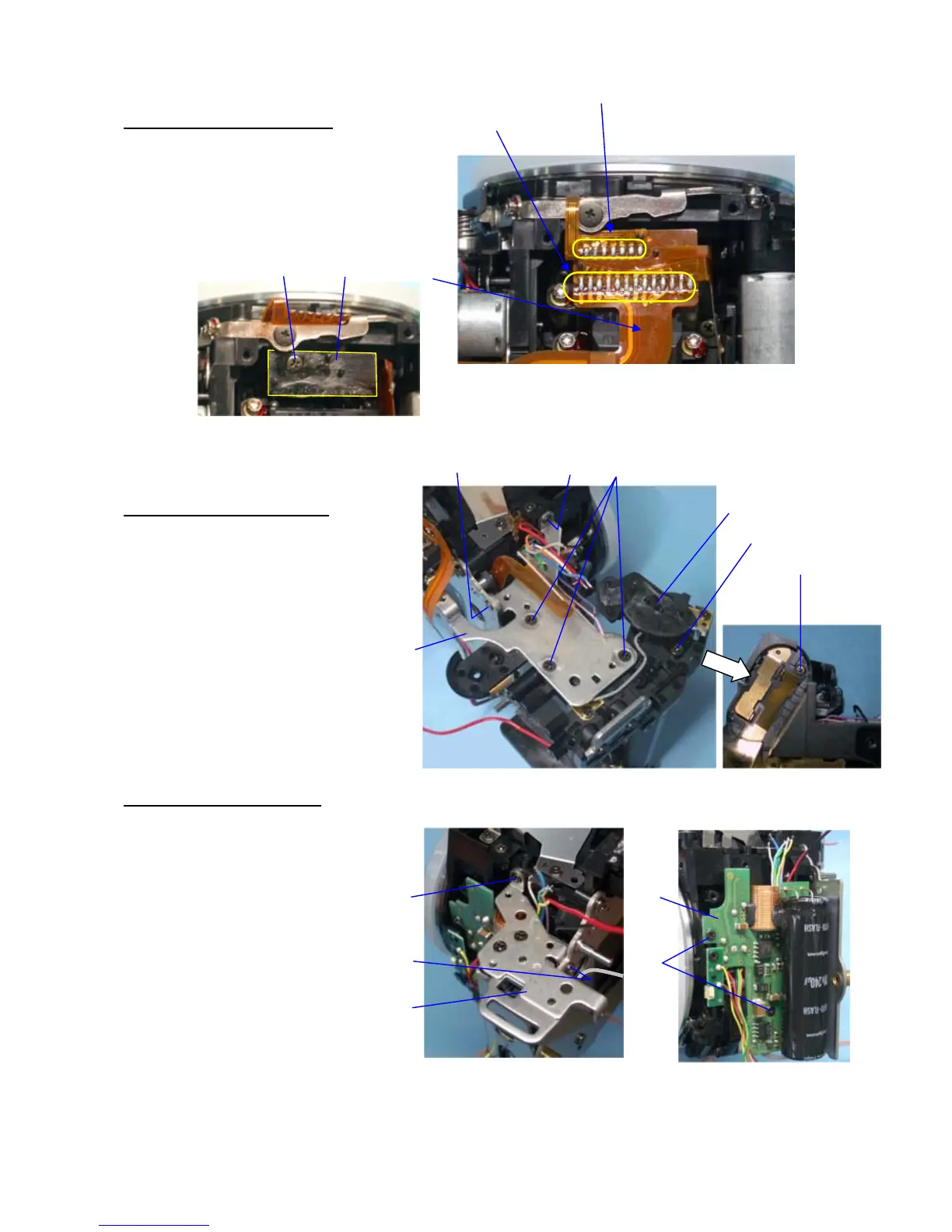

12. T901 (Lower flex board)
① Unsolder 13 lands. (M100)
② Unsolder 7 lands. (T301)
③ Remove T901.
④ Unscrew TY-CNL-D1.7x3.5
⑤ Remove A141.
13. A6 (Left shoulder plate)
① Unscrew TY-CNL-D 1.7x3.5
(Inside battery box)
② Unscrew TY-CNL-D 1.7x3.0.
③ Remove A19.
④ Unscrew TY-CNL-D 1.7x4.0.
⑤ Unscrew TY-CSM 1.7x4.0 (x3)
⑥ Unscrew CNL-D 1.7x2.5.
⑦ Remove A6.
14. 0-Q200 (Flash PC board)
① Unscrew TY-CNL-D 1.7x4.0.
② Unscrew CNL-D 1.7x2.5.
③ Remove A5 (with A4,A15)
④ Unscrew TY-CNL-D 1.7x4.0 (x2)
⑤ Remove 0-Q200.
①
②
③
④
⑤
①
②
③
④
⑤
⑥
⑦
④
⑤
③
①
②
