Pentax K100D - Page 17

76700 -16/94-

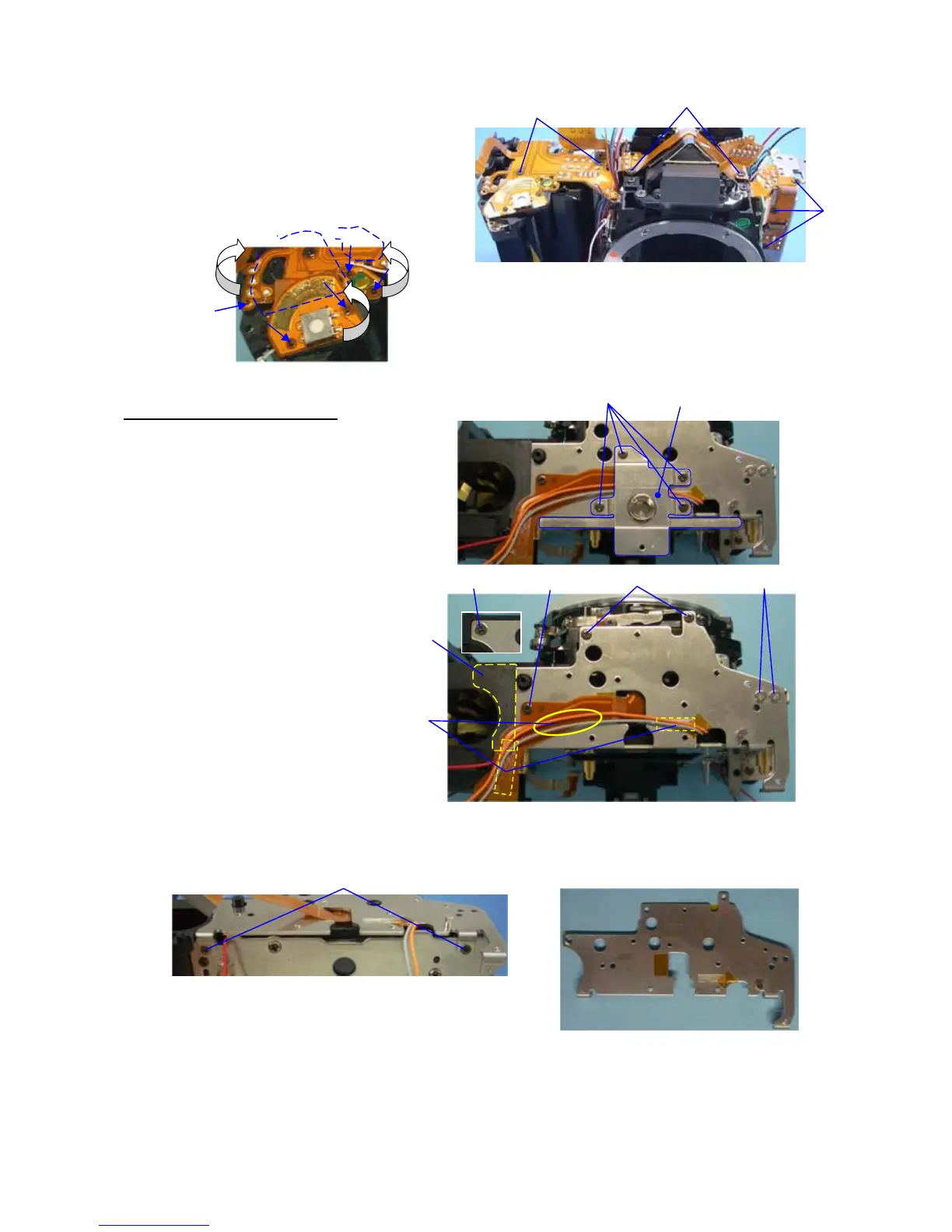

⑨ Unscrew CNL-D 1.7x1.8 (x5)
⑩ Unscrew TY-CNL-D 1.4x2.5 (x2)
⑪ Peel off main SW flex and Av-SW flex from
double stick tape. (T200 separates.)
11. 0-A3 (Bottom plate assy.)
① Unscrew CNL-D 1.7x2.5 (x4)
② Remove 0-A51
③ Peel off 2 lead wires from DT.
④ Unscrew CNL-D 1.7x1.8.
⑤ Peel off A53.
⑥ Unscrew TY-CSM 1.7x4.0.
⑦ Unscrew CNL-E 1.7x2.2 (x2)
⑧ Unscrew TY-CNL-D 1.7x4.0 (x2)
⑨ Unscrew CNL-D 1.7x2.5 (x2)
⑩ Remove 0-A3.
⑨
⑩
⑨
⑪
①
②
③
④
⑧
⑤
⑥
⑦
⑨
