Pentax K100D - Page 16

76700 -15/94-
＊ Lift up LCD block as shown figure below.
③ Disconnect T200 flex from connector. (Flip lock type)
④ Disconnect O100 flex from connector. (Flip lock type)
⑤ Remove A335.
⑥ Remove BO2.0.
⑦ Remove A17 (spring)

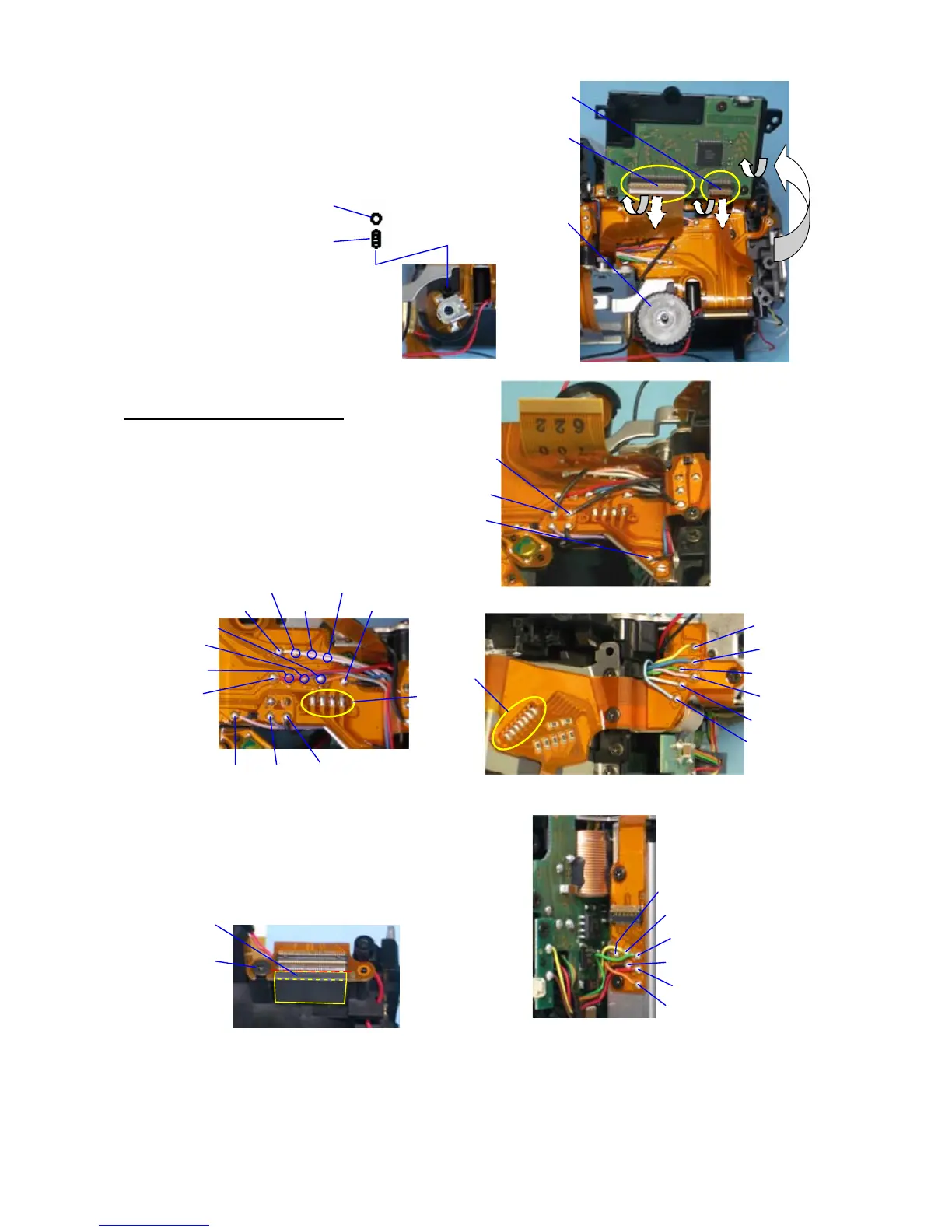

10. 0-T200 (Upper flex block)
① Unsolder lead 3 wires (Black)
② Unsolder 13 lead wires.(E000, G100)
③ Unsolder 4 soldering lands. (T71)
④ Unsolder 6 lead wires. (Q200)
⑤ Unsolder 7 lands. (O170)
⑥ Unsolder 6 lead wires. (T940, S300)
⑦ Peel off A40(tape) while holding flex board.
⑧ Unscrew TY-CNL-E 1.7x3.5.
③
④
⑤
⑥
⑦
①
Black35mm
Black65mm
Black
(A105)
③
② Pink Skyblue
White Green Black
Orange
Blue
Gray
Red
Pink, Purple, Black
⑤
④
Yellow
Blue
Green
Pink
White
Skyblue
⑥
Brown
Yellow
Green
Black
Red
Orange
⑦
⑧
